Event ID: mw
Origin ID: 001
Date:

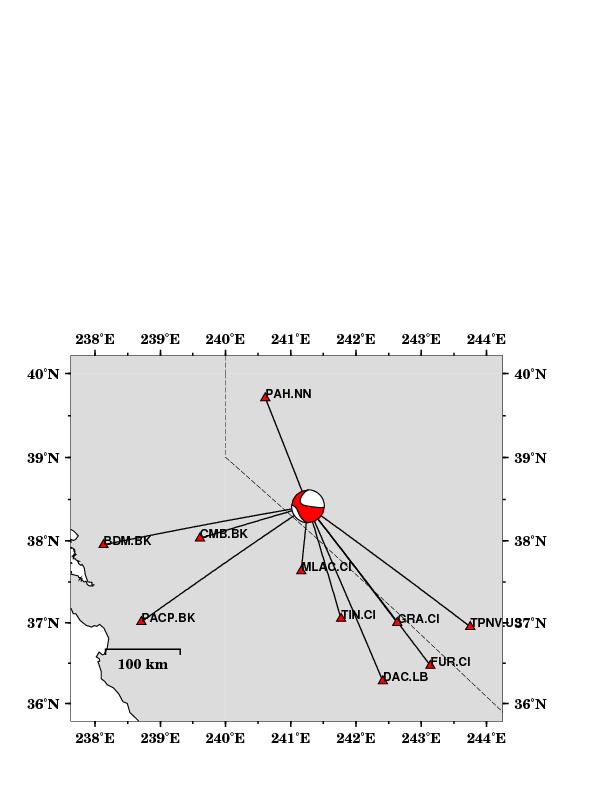

Filename: gmtmap.jpg

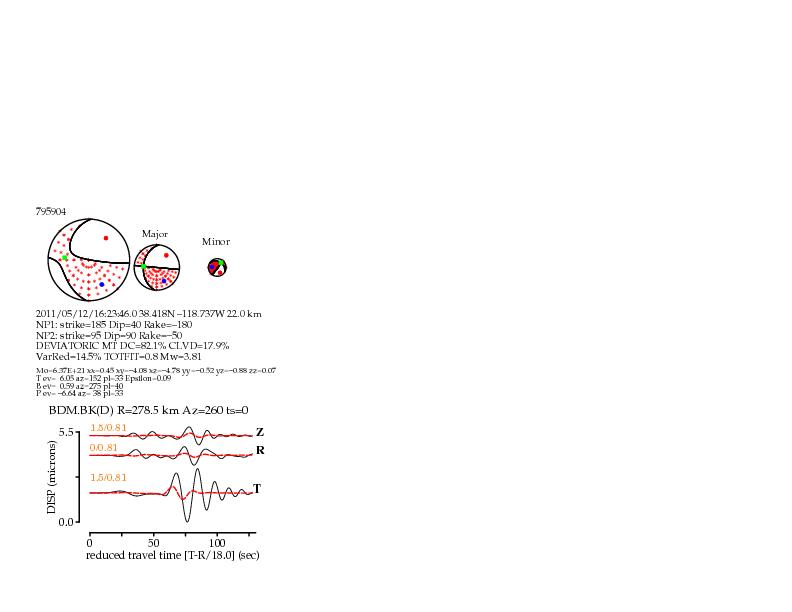

Solution Name: T046.0sec_Z022.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2011/05/12 (132) 16:23:46.00 38.4176 -118.7369 795904
Depth = 22.0 (km)
Mw = 3.81
Mo = 6.37x10^21 (dyne x cm)
Percent Double Couple = 82 %
Percent CLVD = 18 %
no ISO calculated
Epsilon=0.09
Percent Variance Reduction = 14.52 %
Total Fit = 0.77
Major Double Couple
strike dip rake
Nodal Plane 1: 185 40 -180
Nodal Plane 2: 95 90 -50
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.07 Mtt= 0.45 Mff= -0.52
Mrt= -4.78 Mrf= 0.88 Mtf= 4.08 EXP=21
Moment Tensor Elements: Cartesian Coordinates
0.45 -4.08 -4.78
-4.08 -0.52 -0.88
-4.78 -0.88 0.07
Eigenvalues:
T-axis eigenvalue= 6.05
N-axis eigenvalue= 0.59
P-axis eigenvalue= -6.64
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 6.05 trend=152 plunge=33
N-axis ev= 0.00 trend=275 plunge=40
P-axis ev=-6.05 trend=38 plunge=33
Maximum Azmuithal Gap=147 Distance to Nearest Station= 88.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=10 (defining only)
MLAC.CI.D CMB.BK.D PAH.NN.D TIN.CI.D
GRA.CI.D DAC.LB.D FUR.CI.D TPNV.US.D
PACP.BK.D BDM.BK.D
###########------
###########--------------
##########-------------------
###########-------------- -----
##########---------------- P ------
##########----------------- -------
-##########------------------------------
##########-------------------------------
##########---------------------------------
##########---------------------------------
##########---------------------------------
----##################---------------------
--------###############################----
--------####################################
--------###################################
---------##################################
--------#################################
-------#################################
--------###############################
-------############### ###########
-------############## T #########
------############# #######
------###################
----##############
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 88.0 186 6 0.020 0.080 MLAC.CI.wus.glib
CMB.BK (D) Y 150.6 254 73 0.020 0.080 CMB.BK.wus.glib
PAH.NN (D) Y 154.3 339 158 0.020 0.080 PAH.NN.wus.glib
TIN.CI (D) Y 158.3 164 344 0.020 0.080 TIN.CI.wus.glib
GRA.CI (D) Y 198.1 142 323 0.020 0.080 GRA.CI.wus.glib
DAC.LB (D) Y 258.2 157 337 0.020 0.080 DAC.LB.wus.glib
FUR.CI (D) Y 272.5 142 323 0.020 0.080 FUR.CI.wus.glib
TPNV.US (D) Y 272.8 126 307 0.020 0.080 TPNV.US.wus.glib
PACP.BK (D) Y 273.5 236 54 0.020 0.080 PACP.BK.wus.glib
BDM.BK (D) Y 278.5 260 78 0.020 0.080 BDM.BK.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2011/05/12 17:03:19
mtinv Version 2.1_DEVEL OCT2008

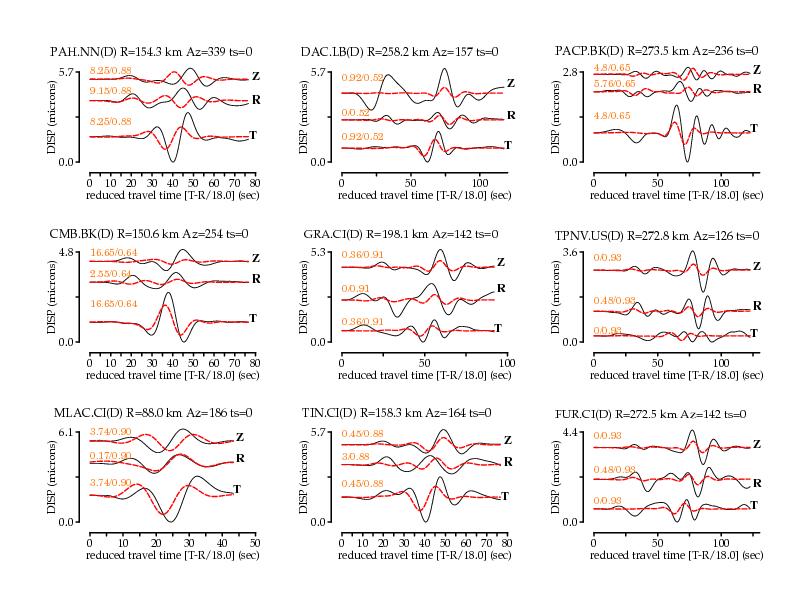

Solution Name: T047.0sec_Z012.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2011/05/12 (132) 16:23:47.00 38.4176 -118.7369 795904
Depth = 12.0 (km)
Mw = 3.81
Mo = 6.45x10^21 (dyne x cm)
Percent Double Couple = 96 %
Percent CLVD = 4 %
no ISO calculated
Epsilon=0.02
Percent Variance Reduction = 20.39 %
Total Fit = 3.96
Major Double Couple
strike dip rake
Nodal Plane 1: 177 54 179
Nodal Plane 2: 267 90 36
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.12 Mtt= -0.62 Mff= 0.50
Mrt= -3.83 Mrf= -0.12 Mtf= 5.15 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.62 -5.15 -3.83
-5.15 0.50 0.12
-3.83 0.12 0.12
Eigenvalues:
T-axis eigenvalue= 6.38
N-axis eigenvalue= 0.14
P-axis eigenvalue= -6.51
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 6.38 trend=138 plunge=25
N-axis ev= 0.00 trend=268 plunge=54
P-axis ev=-6.38 trend=36 plunge=25
Maximum Azmuithal Gap=147 Distance to Nearest Station= 88.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=10 (defining only)
MLAC.CI.D CMB.BK.D PAH.NN.D TIN.CI.D
GRA.CI.D DAC.LB.D FUR.CI.D TPNV.US.D
PACP.BK.D BDM.BK.D
########---------
##########---------------
##########------------- ---
###########-------------- P -----
###########--------------- ------
###########--------------------------
-############----------------------------
############-----------------------------
#############------------------------------
#############------------------------------
#############------------------------------
#############-------########################
############################################
------------################################
------------###############################
------------###############################
------------#############################
-----------#############################
------------###########################
-----------################# #####
-----------################ T ###
----------############### #
---------################
-------###########
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 88.0 186 6 0.020 0.080 MLAC.CI.wus.glib
CMB.BK (D) Y 150.6 254 73 0.020 0.080 CMB.BK.wus.glib
PAH.NN (D) Y 154.3 339 158 0.020 0.080 PAH.NN.wus.glib
TIN.CI (D) Y 158.3 164 344 0.020 0.080 TIN.CI.wus.glib
GRA.CI (D) Y 198.1 142 323 0.020 0.080 GRA.CI.wus.glib
DAC.LB (D) Y 258.2 157 337 0.020 0.080 DAC.LB.wus.glib
FUR.CI (D) Y 272.5 142 323 0.020 0.080 FUR.CI.wus.glib
TPNV.US (D) Y 272.8 126 307 0.020 0.080 TPNV.US.wus.glib
PACP.BK (D) Y 273.5 236 54 0.020 0.080 PACP.BK.wus.glib
BDM.BK (D) Y 278.5 260 78 0.020 0.080 BDM.BK.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2011/05/12 17:03:18
mtinv Version 2.1_DEVEL OCT2008

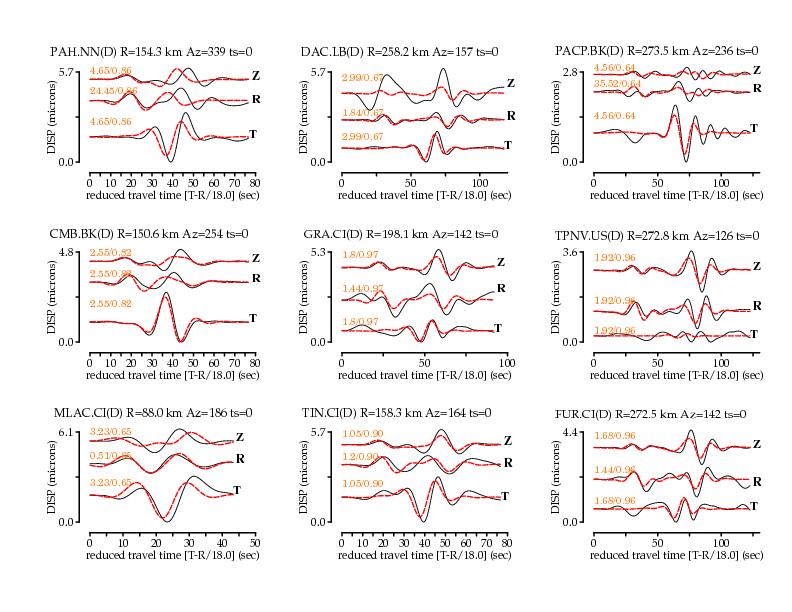

Solution Name: T048.0sec_Z006.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2011/05/12 (132) 16:23:48.00 38.4176 -118.7369 795904
Depth = 6.0 (km)
Mw = 4.02
Mo = 1.32x10^22 (dyne x cm)
Percent Double Couple = 85 %
Percent CLVD = 15 %
no ISO calculated
Epsilon=0.08
Percent Variance Reduction = 45.00 %
Total Fit = 2.76
Major Double Couple
strike dip rake
Nodal Plane 1: 205 38 -106
Nodal Plane 2: 46 53 -77
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.28 Mtt= 0.44 Mff= 0.84
Mrt= -0.41 Mrf= -0.12 Mtf= 0.55 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.44 -0.55 -0.41
-0.55 0.84 0.12
-0.41 0.12 -1.28
Eigenvalues:
T-axis eigenvalue= 1.27
N-axis eigenvalue= 0.10
P-axis eigenvalue= -1.37
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.27 trend=127 plunge=8
N-axis ev= 0.00 trend=218 plunge=10
P-axis ev=-1.27 trend=0 plunge=77
Maximum Azmuithal Gap=147 Distance to Nearest Station= 88.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=10 (defining only)
MLAC.CI.D CMB.BK.D PAH.NN.D TIN.CI.D
GRA.CI.D DAC.LB.D FUR.CI.D TPNV.US.D
PACP.BK.D BDM.BK.D
##################
######################---
###############--------------
##############------------------#
############---------------------###
############----------------------####
-###########------------------------#####
###########------------------------######
###########-------- --------------#######
##########--------- P -------------########
#########---------- ------------##########
########--------------------------##########
########------------------------############
########-----------------------#############
########----------------------#############
########--------------------###############
#######-----------------#################
######---------------###################
#######-----------############### ###
#####-------################### T ##
##############################
---##########################
--#######################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 88.0 186 6 0.020 0.080 MLAC.CI.wus.glib
CMB.BK (D) Y 150.6 254 73 0.020 0.080 CMB.BK.wus.glib
PAH.NN (D) Y 154.3 339 158 0.020 0.080 PAH.NN.wus.glib
TIN.CI (D) Y 158.3 164 344 0.020 0.080 TIN.CI.wus.glib
GRA.CI (D) Y 198.1 142 323 0.020 0.080 GRA.CI.wus.glib
DAC.LB (D) Y 258.2 157 337 0.020 0.080 DAC.LB.wus.glib
FUR.CI (D) Y 272.5 142 323 0.020 0.080 FUR.CI.wus.glib
TPNV.US (D) Y 272.8 126 307 0.020 0.080 TPNV.US.wus.glib
PACP.BK (D) Y 273.5 236 54 0.020 0.080 PACP.BK.wus.glib
BDM.BK (D) Y 278.5 260 78 0.020 0.080 BDM.BK.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2011/05/12 17:03:17
mtinv Version 2.1_DEVEL OCT2008

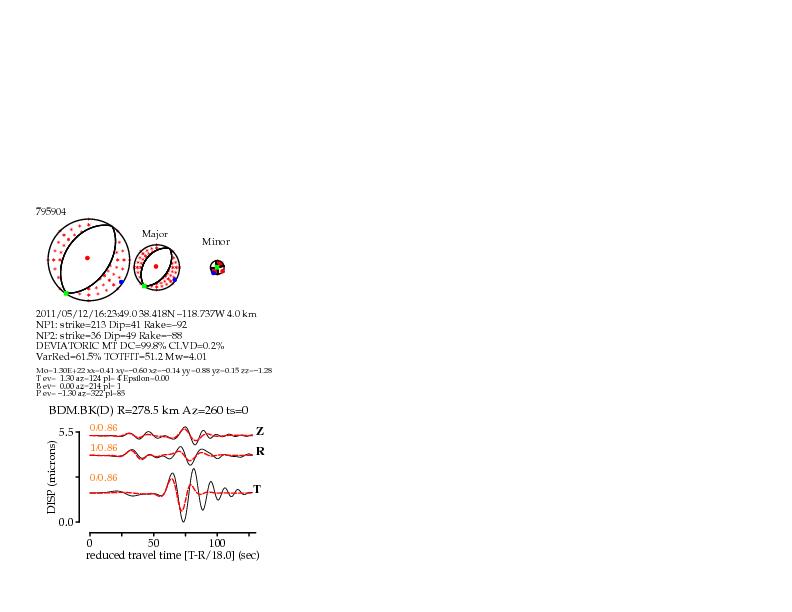

Solution Name: T049.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2011/05/12 (132) 16:23:49.00 38.4176 -118.7369 795904
Depth = 4.0 (km)
Mw = 4.01
Mo = 1.30x10^22 (dyne x cm)
Percent Double Couple = 100 %
Percent CLVD = 0 %
no ISO calculated
Epsilon=0.00
Percent Variance Reduction = 61.47 %
Total Fit = 51.21
Major Double Couple
strike dip rake
Nodal Plane 1: 213 41 -92
Nodal Plane 2: 36 49 -88
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.28 Mtt= 0.41 Mff= 0.88
Mrt= -0.14 Mrf= -0.15 Mtf= 0.60 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.41 -0.60 -0.14
-0.60 0.88 0.15
-0.14 0.15 -1.28
Eigenvalues:
T-axis eigenvalue= 1.30
N-axis eigenvalue= 0.00
P-axis eigenvalue= -1.30
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.30 trend=124 plunge=4
N-axis ev= 0.00 trend=214 plunge=1
P-axis ev=-1.30 trend=322 plunge=85
Maximum Azmuithal Gap=147 Distance to Nearest Station= 88.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=10 (defining only)
MLAC.CI.D CMB.BK.D PAH.NN.D TIN.CI.D
GRA.CI.D DAC.LB.D FUR.CI.D TPNV.US.D
PACP.BK.D BDM.BK.D
##################
#########################
###################--------##
#################------------####
##############-----------------#####
#############-------------------######
-############---------------------#######
############----------------------#######
###########------------------------########
##########------------------------#########
#########-------- --------------##########
#########-------- P -------------###########
########--------- ------------############
########-----------------------#############
#######-----------------------#############
#######----------------------##############
######---------------------##############
#####-------------------######### ####
######----------------########### T ###
####-------------############## ##
####---------####################
#############################
-########################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 88.0 186 6 0.020 0.080 MLAC.CI.wus.glib
CMB.BK (D) Y 150.6 254 73 0.020 0.080 CMB.BK.wus.glib
PAH.NN (D) Y 154.3 339 158 0.020 0.080 PAH.NN.wus.glib
TIN.CI (D) Y 158.3 164 344 0.020 0.080 TIN.CI.wus.glib
GRA.CI (D) Y 198.1 142 323 0.020 0.080 GRA.CI.wus.glib
DAC.LB (D) Y 258.2 157 337 0.020 0.080 DAC.LB.wus.glib
FUR.CI (D) Y 272.5 142 323 0.020 0.080 FUR.CI.wus.glib
TPNV.US (D) Y 272.8 126 307 0.020 0.080 TPNV.US.wus.glib
PACP.BK (D) Y 273.5 236 54 0.020 0.080 PACP.BK.wus.glib
BDM.BK (D) Y 278.5 260 78 0.020 0.080 BDM.BK.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2011/05/12 17:03:17
mtinv Version 2.1_DEVEL OCT2008

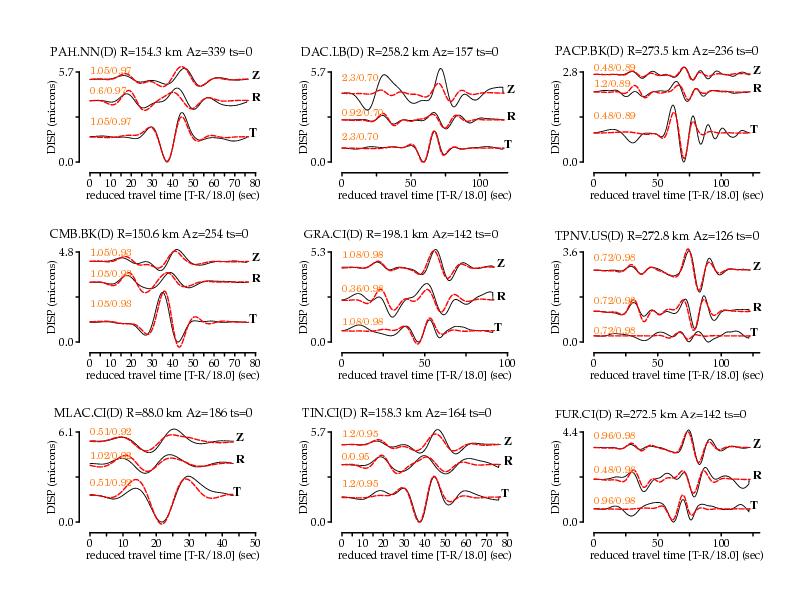

Solution Name: T050.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2011/05/12 (132) 16:23:50.00 38.4176 -118.7369 795904
Depth = 4.0 (km)
Mw = 4.03
Mo = 1.38x10^22 (dyne x cm)
Percent Double Couple = 98 %
Percent CLVD = 2 %
no ISO calculated
Epsilon=0.01
Percent Variance Reduction = 70.50 %
Total Fit = 27.64
Major Double Couple
strike dip rake
Nodal Plane 1: 224 43 -77
Nodal Plane 2: 27 49 -102
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.35 Mtt= 0.44 Mff= 0.90
Mrt= 0.09 Mrf= -0.24 Mtf= 0.66 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.44 -0.66 0.09
-0.66 0.90 0.24
0.09 0.24 -1.35
Eigenvalues:
T-axis eigenvalue= 1.37
N-axis eigenvalue= 0.01
P-axis eigenvalue= -1.39
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.37 trend=125 plunge=3
N-axis ev= 0.00 trend=34 plunge=9
P-axis ev=-1.37 trend=234 plunge=81
Maximum Azmuithal Gap=147 Distance to Nearest Station= 88.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=10 (defining only)
MLAC.CI.D CMB.BK.D PAH.NN.D TIN.CI.D
GRA.CI.D DAC.LB.D FUR.CI.D TPNV.US.D
PACP.BK.D BDM.BK.D
##################
########################-
###########################--
#####################-------#####
#################------------#######
###############----------------#######
-#############-------------------########
############---------------------########
############----------------------#########
###########-----------------------#########
#########------------------------###########
########-------------------------###########
########-------- -------------############
#######--------- P ------------#############
######---------- ------------############
######------------------------#############
#####----------------------##############
####---------------------######## ####
####-------------------########## T ###
##-----------------############ ##
##--------------#################
----------###################
---######################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 88.0 186 6 0.020 0.080 MLAC.CI.wus.glib
CMB.BK (D) Y 150.6 254 73 0.020 0.080 CMB.BK.wus.glib
PAH.NN (D) Y 154.3 339 158 0.020 0.080 PAH.NN.wus.glib
TIN.CI (D) Y 158.3 164 344 0.020 0.080 TIN.CI.wus.glib
GRA.CI (D) Y 198.1 142 323 0.020 0.080 GRA.CI.wus.glib
DAC.LB (D) Y 258.2 157 337 0.020 0.080 DAC.LB.wus.glib
FUR.CI (D) Y 272.5 142 323 0.020 0.080 FUR.CI.wus.glib
TPNV.US (D) Y 272.8 126 307 0.020 0.080 TPNV.US.wus.glib
PACP.BK (D) Y 273.5 236 54 0.020 0.080 PACP.BK.wus.glib
BDM.BK (D) Y 278.5 260 78 0.020 0.080 BDM.BK.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2011/05/12 17:03:16
mtinv Version 2.1_DEVEL OCT2008

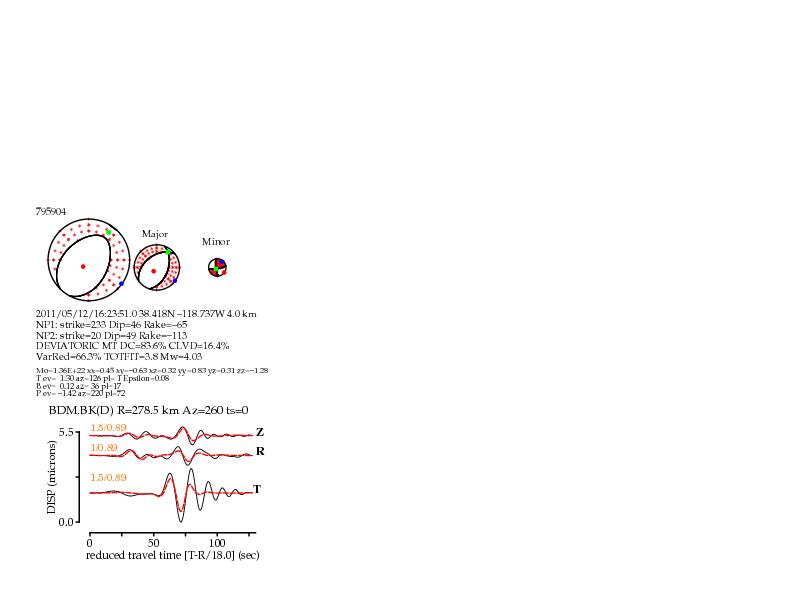

Solution Name: T051.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2011/05/12 (132) 16:23:51.00 38.4176 -118.7369 795904
Depth = 4.0 (km)
Mw = 4.03
Mo = 1.36x10^22 (dyne x cm)
Percent Double Couple = 84 %
Percent CLVD = 16 %
no ISO calculated
Epsilon=0.08
Percent Variance Reduction = 66.35 %
Total Fit = 3.81
Major Double Couple
strike dip rake
Nodal Plane 1: 233 46 -65
Nodal Plane 2: 20 49 -113
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.28 Mtt= 0.45 Mff= 0.83
Mrt= 0.32 Mrf= -0.31 Mtf= 0.63 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.45 -0.63 0.32
-0.63 0.83 0.31
0.32 0.31 -1.28
Eigenvalues:
T-axis eigenvalue= 1.30
N-axis eigenvalue= 0.12
P-axis eigenvalue= -1.42
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.30 trend=126 plunge=1
N-axis ev= 0.00 trend=36 plunge=17
P-axis ev=-1.30 trend=220 plunge=72
Maximum Azmuithal Gap=147 Distance to Nearest Station= 88.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=10 (defining only)
MLAC.CI.D CMB.BK.D PAH.NN.D TIN.CI.D
GRA.CI.D DAC.LB.D FUR.CI.D TPNV.US.D
PACP.BK.D BDM.BK.D
#################
######################---
#########################----
#############################----
#######################-----########
##################-----------#########
-################---------------#########
##############------------------#########
#############--------------------##########
###########----------------------##########
#########------------------------###########
########------------------------############
#######-------------------------############
######-------- --------------#############
######-------- P --------------############
#####--------- -------------#############
####------------------------#############
###-----------------------##############
###---------------------######### ###
#--------------------########## T ##
------------------############
-------------################
--------#################
-#################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 88.0 186 6 0.020 0.080 MLAC.CI.wus.glib
CMB.BK (D) Y 150.6 254 73 0.020 0.080 CMB.BK.wus.glib
PAH.NN (D) Y 154.3 339 158 0.020 0.080 PAH.NN.wus.glib
TIN.CI (D) Y 158.3 164 344 0.020 0.080 TIN.CI.wus.glib
GRA.CI (D) Y 198.1 142 323 0.020 0.080 GRA.CI.wus.glib
DAC.LB (D) Y 258.2 157 337 0.020 0.080 DAC.LB.wus.glib
FUR.CI (D) Y 272.5 142 323 0.020 0.080 FUR.CI.wus.glib
TPNV.US (D) Y 272.8 126 307 0.020 0.080 TPNV.US.wus.glib
PACP.BK (D) Y 273.5 236 54 0.020 0.080 PACP.BK.wus.glib
BDM.BK (D) Y 278.5 260 78 0.020 0.080 BDM.BK.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2011/05/12 17:03:15
mtinv Version 2.1_DEVEL OCT2008

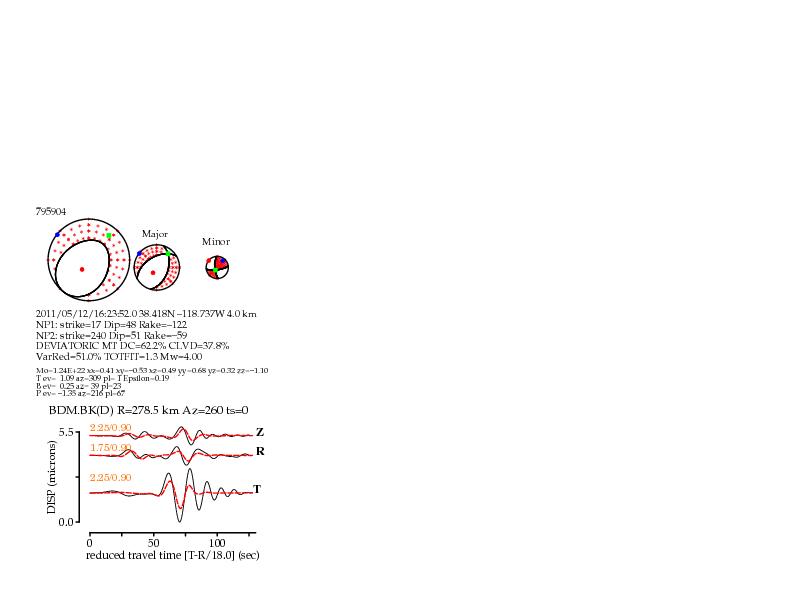

Solution Name: T052.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2011/05/12 (132) 16:23:52.00 38.4176 -118.7369 795904
Depth = 4.0 (km)
Mw = 4.00
Mo = 1.24x10^22 (dyne x cm)
Percent Double Couple = 62 %
Percent CLVD = 38 %
no ISO calculated
Epsilon=0.19
Percent Variance Reduction = 51.00 %
Total Fit = 1.32
Major Double Couple
strike dip rake
Nodal Plane 1: 17 48 -122
Nodal Plane 2: 240 51 -59
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.10 Mtt= 0.41 Mff= 0.68
Mrt= 0.49 Mrf= -0.32 Mtf= 0.53 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.41 -0.53 0.49
-0.53 0.68 0.32
0.49 0.32 -1.10
Eigenvalues:
T-axis eigenvalue= 1.09
N-axis eigenvalue= 0.25
P-axis eigenvalue= -1.35
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.09 trend=309 plunge=1
N-axis ev= 0.00 trend=39 plunge=23
P-axis ev=-1.09 trend=216 plunge=67
Maximum Azmuithal Gap=147 Distance to Nearest Station= 88.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=10 (defining only)
MLAC.CI.D CMB.BK.D PAH.NN.D TIN.CI.D
GRA.CI.D DAC.LB.D FUR.CI.D TPNV.US.D
PACP.BK.D BDM.BK.D
################-
#####################----
########################-----
###########################------
T ###############################----
#######################-----########
-##################------------##########
################----------------#########
##############-------------------##########
############---------------------##########
##########-----------------------###########
########------------------------############
#######-------------------------############
######-------------------------#############
#####--------- --------------############
####---------- P -------------#############
###---------- ------------#############
##------------------------##############
#------------------------##############
---------------------###############
-------------------##############
--------------###############
---------################
--################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 88.0 186 6 0.020 0.080 MLAC.CI.wus.glib
CMB.BK (D) Y 150.6 254 73 0.020 0.080 CMB.BK.wus.glib
PAH.NN (D) Y 154.3 339 158 0.020 0.080 PAH.NN.wus.glib
TIN.CI (D) Y 158.3 164 344 0.020 0.080 TIN.CI.wus.glib
GRA.CI (D) Y 198.1 142 323 0.020 0.080 GRA.CI.wus.glib
DAC.LB (D) Y 258.2 157 337 0.020 0.080 DAC.LB.wus.glib
FUR.CI (D) Y 272.5 142 323 0.020 0.080 FUR.CI.wus.glib
TPNV.US (D) Y 272.8 126 307 0.020 0.080 TPNV.US.wus.glib
PACP.BK (D) Y 273.5 236 54 0.020 0.080 PACP.BK.wus.glib
BDM.BK (D) Y 278.5 260 78 0.020 0.080 BDM.BK.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2011/05/12 17:03:14
mtinv Version 2.1_DEVEL OCT2008
Event ID: mw
Origin ID: 001
Date:

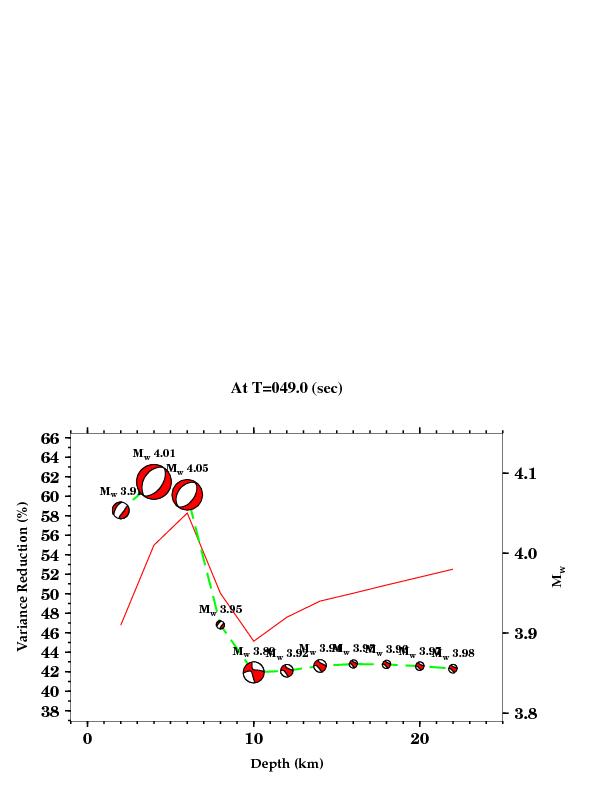

Filename: plotz.jpg
Event ID: mw
Origin ID: 001
Date:

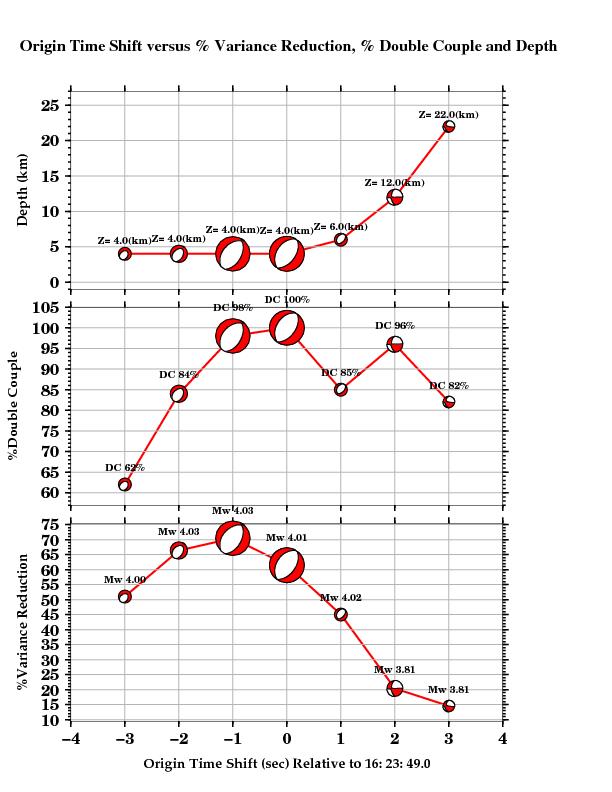

Filename: results.5.jpg
