Event ID: 380267
Origin ID: 922292
Date: 2012/06/23,03:51:57

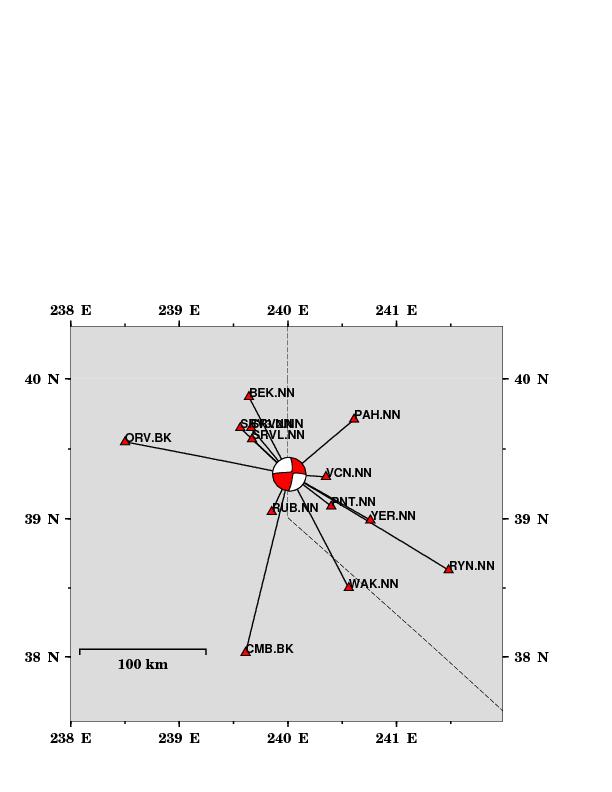

Filename: gmtmap.jpg

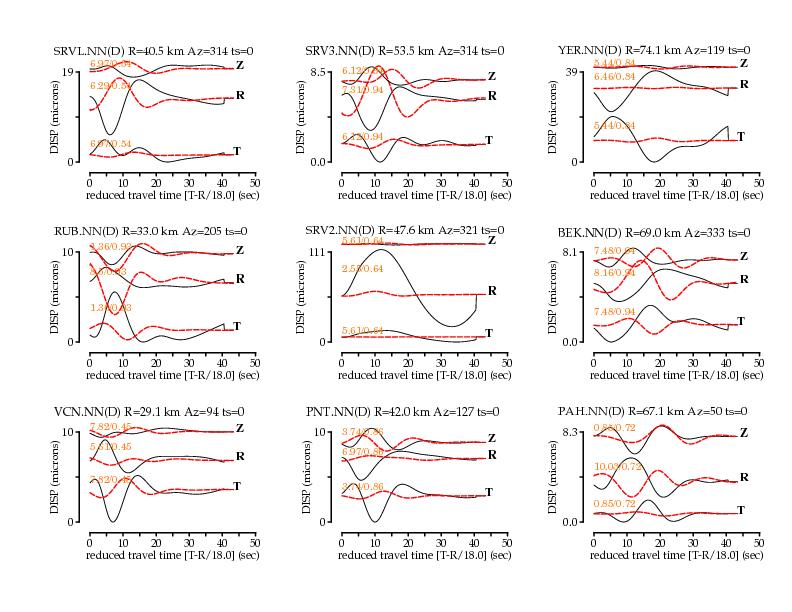

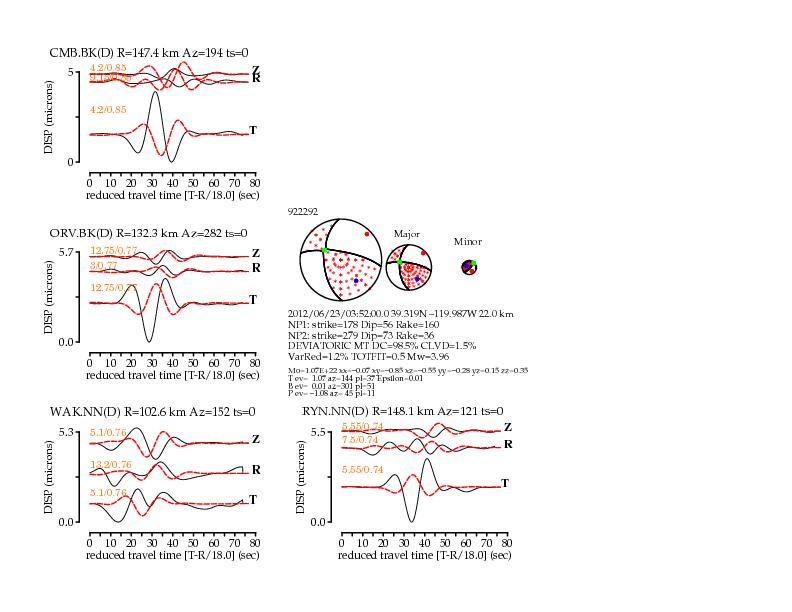

Solution Name: T000.0sec_Z022.0km_
Event ID: 380267
Origin ID: 922292
Date: 2012/06/23,03:51:57
Seismic Moment Tensor Solution
2012/06/23 (175) 03:52:00.00 39.3192 -119.9874 922292
Depth = 22.0 (km)
Mw = 3.96
Mo = 1.07x10^22 (dyne x cm)
Percent Double Couple = 99 %
Percent CLVD = 1 %
no ISO calculated
Epsilon=0.01
Percent Variance Reduction = 1.17 %
Total Fit = 0.47
Major Double Couple
strike dip rake
Nodal Plane 1: 178 56 160
Nodal Plane 2: 279 73 36
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.35 Mtt= -0.07 Mff= -0.28
Mrt= -0.55 Mrf= -0.15 Mtf= 0.85 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-0.07 -0.85 -0.55
-0.85 -0.28 0.15
-0.55 0.15 0.35
Eigenvalues:
T-axis eigenvalue= 1.07
N-axis eigenvalue= 0.01
P-axis eigenvalue= -1.08
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.07 trend=144 plunge=37
N-axis ev= 0.00 trend=301 plunge=51
P-axis ev=-1.07 trend=45 plunge=11
Maximum Azmuithal Gap=77 Distance to Nearest Station= 29.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=13 (defining only)
VCN.NN.D RUB.NN.D SRVL.NN.D PNT.NN.D
SRV2.NN.D SRV3.NN.D PAH.NN.D BEK.NN.D
YER.NN.D WAK.NN.D ORV.BK.D CMB.BK.D
RYN.NN.D
########---------
##########---------------
###########----------------
############----------------- P -
############------------------ --
############-------------------------
-############----------------------------
#############----------------------------
##############-----------------------------
##########################-----------------
------------#####################----------
------------#########################------
------------#############################--
------------###############################
------------###############################
-------------##############################
------------#############################
------------############################
------------############## ##########
-----------############# T #########
-----------############ #######
----------###################
----------###############
-------###########
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
VCN.NN (D) Y 29.1 94 274 0.020 0.080 VCN.NN.wus.glib
RUB.NN (D) Y 33.0 205 25 0.020 0.080 RUB.NN.wus.glib
SRVL.NN (D) Y 40.5 314 133 0.020 0.080 SRVL.NN.wus.glib
PNT.NN (D) Y 42.0 127 307 0.020 0.080 PNT.NN.wus.glib
SRV2.NN (D) Y 47.6 321 140 0.020 0.080 SRV2.NN.wus.glib
SRV3.NN (D) Y 53.5 314 133 0.020 0.080 SRV3.NN.wus.glib
PAH.NN (D) Y 67.1 50 230 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 69.0 333 152 0.020 0.080 BEK.NN.wus.glib
YER.NN (D) Y 74.1 119 300 0.020 0.080 YER.NN.wus.glib
WAK.NN (D) Y 102.6 152 333 0.020 0.080 WAK.NN.wus.glib
ORV.BK (D) Y 132.3 282 101 0.020 0.080 ORV.BK.wus.glib
CMB.BK (D) Y 147.4 194 14 0.020 0.080 CMB.BK.wus.glib
RYN.NN (D) Y 148.1 121 302 0.020 0.080 RYN.NN.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2012/06/25 19:44:15
mtinv Version 2.1_DEVEL OCT2008

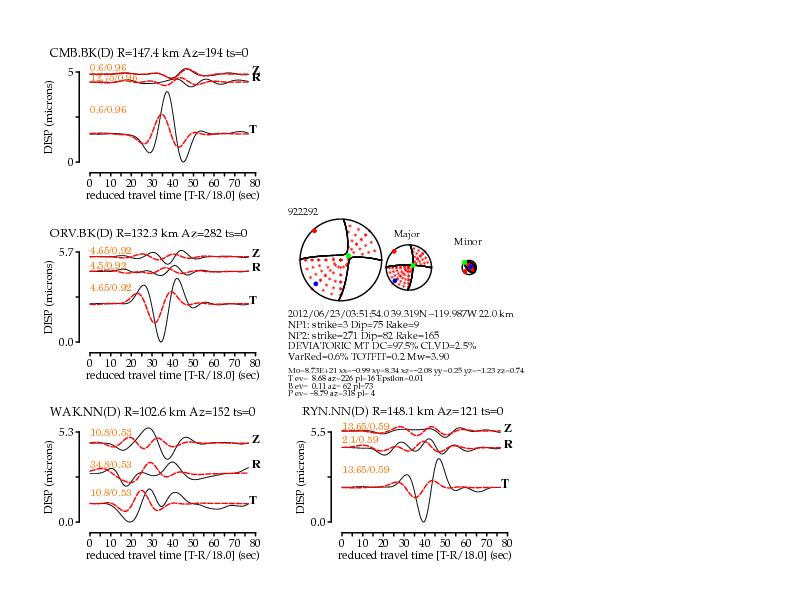

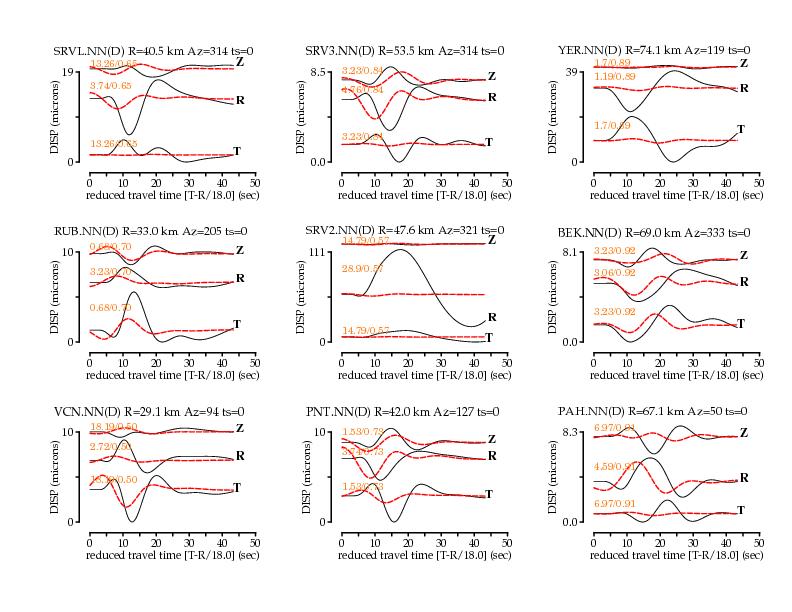

Solution Name: T054.0sec_Z022.0km_
Event ID: 380267
Origin ID: 922292
Date: 2012/06/23,03:51:57
Seismic Moment Tensor Solution
2012/06/23 (175) 03:51:54.00 39.3192 -119.9874 922292
Depth = 22.0 (km)
Mw = 3.90
Mo = 8.73x10^21 (dyne x cm)
Percent Double Couple = 97 %
Percent CLVD = 3 %
no ISO calculated
Epsilon=0.01
Percent Variance Reduction = 0.60 %
Total Fit = 0.17
Major Double Couple
strike dip rake
Nodal Plane 1: 3 75 9
Nodal Plane 2: 271 82 165
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.74 Mtt= -0.99 Mff= 0.25
Mrt= -2.08 Mrf= 1.23 Mtf= -8.34 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.99 8.34 -2.08
8.34 0.25 -1.23
-2.08 -1.23 0.74
Eigenvalues:
T-axis eigenvalue= 8.68
N-axis eigenvalue= 0.11
P-axis eigenvalue= -8.79
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 8.68 trend=226 plunge=16
N-axis ev= 0.00 trend=62 plunge=73
P-axis ev=-8.68 trend=318 plunge=4
Maximum Azmuithal Gap=77 Distance to Nearest Station= 29.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=13 (defining only)
VCN.NN.D RUB.NN.D SRVL.NN.D PNT.NN.D
SRV2.NN.D SRV3.NN.D PAH.NN.D BEK.NN.D
YER.NN.D WAK.NN.D ORV.BK.D CMB.BK.D
RYN.NN.D
----------########
--------------###########
-----------------############
P ------------------##############
------------------################
----------------------################
------------------------#################
------------------------#################
-------------------------##################
-------------------------##################
---------###################################
##########################-----#############
##########################----------------##
##########################-----------------
##########################-----------------
#########################------------------
########################-----------------
#######################----------------
# ###################----------------
T ##################---------------
##################--------------
################-------------
#############-----------
#########--------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
VCN.NN (D) Y 29.1 94 274 0.020 0.080 VCN.NN.wus.glib
RUB.NN (D) Y 33.0 205 25 0.020 0.080 RUB.NN.wus.glib
SRVL.NN (D) Y 40.5 314 133 0.020 0.080 SRVL.NN.wus.glib
PNT.NN (D) Y 42.0 127 307 0.020 0.080 PNT.NN.wus.glib
SRV2.NN (D) Y 47.6 321 140 0.020 0.080 SRV2.NN.wus.glib
SRV3.NN (D) Y 53.5 314 133 0.020 0.080 SRV3.NN.wus.glib
PAH.NN (D) Y 67.1 50 230 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 69.0 333 152 0.020 0.080 BEK.NN.wus.glib
YER.NN (D) Y 74.1 119 300 0.020 0.080 YER.NN.wus.glib
WAK.NN (D) Y 102.6 152 333 0.020 0.080 WAK.NN.wus.glib
ORV.BK (D) Y 132.3 282 101 0.020 0.080 ORV.BK.wus.glib
CMB.BK (D) Y 147.4 194 14 0.020 0.080 CMB.BK.wus.glib
RYN.NN (D) Y 148.1 121 302 0.020 0.080 RYN.NN.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2012/06/25 19:44:18
mtinv Version 2.1_DEVEL OCT2008

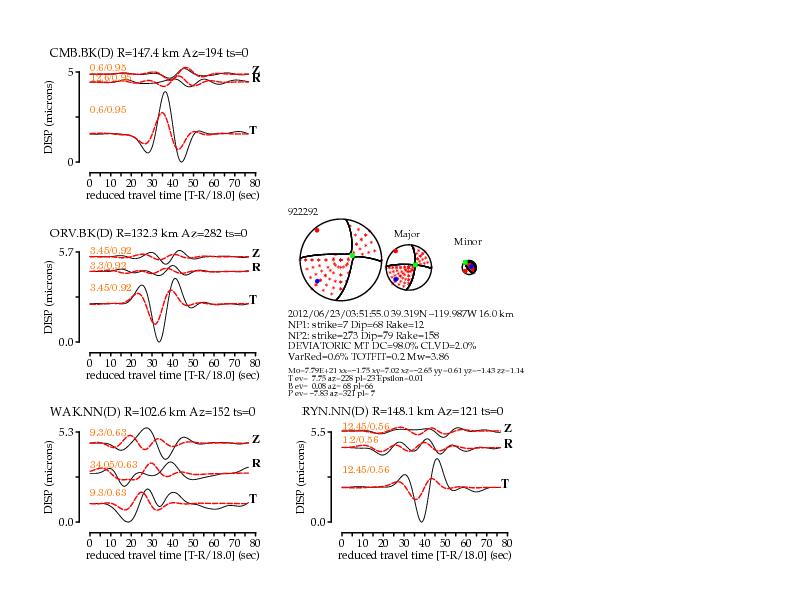

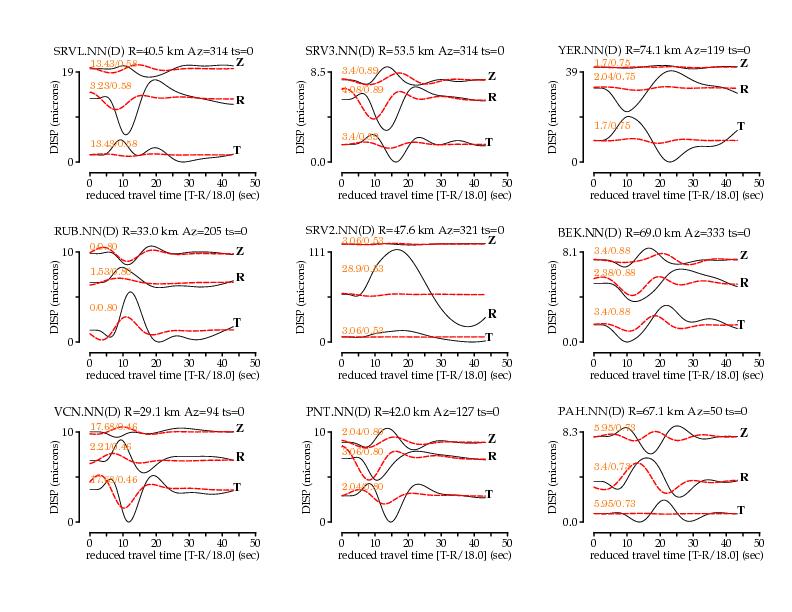

Solution Name: T055.0sec_Z016.0km_
Event ID: 380267
Origin ID: 922292
Date: 2012/06/23,03:51:57
Seismic Moment Tensor Solution
2012/06/23 (175) 03:51:55.00 39.3192 -119.9874 922292
Depth = 16.0 (km)
Mw = 3.86
Mo = 7.79x10^21 (dyne x cm)
Percent Double Couple = 98 %
Percent CLVD = 2 %
no ISO calculated
Epsilon=0.01
Percent Variance Reduction = 0.61 %
Total Fit = 0.20
Major Double Couple
strike dip rake
Nodal Plane 1: 7 68 12
Nodal Plane 2: 273 79 158
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 1.14 Mtt= -1.75 Mff= 0.61
Mrt= -2.65 Mrf= 1.43 Mtf= -7.02 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-1.75 7.02 -2.65
7.02 0.61 -1.43
-2.65 -1.43 1.14
Eigenvalues:
T-axis eigenvalue= 7.75
N-axis eigenvalue= 0.08
P-axis eigenvalue= -7.83
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 7.75 trend=228 plunge=23
N-axis ev= 0.00 trend=68 plunge=66
P-axis ev=-7.75 trend=321 plunge=7
Maximum Azmuithal Gap=77 Distance to Nearest Station= 29.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=13 (defining only)
VCN.NN.D RUB.NN.D SRVL.NN.D PNT.NN.D
SRV2.NN.D SRV3.NN.D PAH.NN.D BEK.NN.D
YER.NN.D WAK.NN.D ORV.BK.D CMB.BK.D
RYN.NN.D
-----------#######
----------------#########
P -----------------###########
------------------############
----------------------##############
------------------------##############
--------------------------###############
--------------------------###############
---------------------------################
---------------------------################
---#########################################
############################----############
############################------------####
############################---------------
###########################----------------
###########################----------------
#########################----------------
########################---------------
# ###################----------------
T ###################--------------
##################--------------
################-------------
#############-----------
########---------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
VCN.NN (D) Y 29.1 94 274 0.020 0.080 VCN.NN.wus.glib
RUB.NN (D) Y 33.0 205 25 0.020 0.080 RUB.NN.wus.glib
SRVL.NN (D) Y 40.5 314 133 0.020 0.080 SRVL.NN.wus.glib
PNT.NN (D) Y 42.0 127 307 0.020 0.080 PNT.NN.wus.glib
SRV2.NN (D) Y 47.6 321 140 0.020 0.080 SRV2.NN.wus.glib
SRV3.NN (D) Y 53.5 314 133 0.020 0.080 SRV3.NN.wus.glib
PAH.NN (D) Y 67.1 50 230 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 69.0 333 152 0.020 0.080 BEK.NN.wus.glib
YER.NN (D) Y 74.1 119 300 0.020 0.080 YER.NN.wus.glib
WAK.NN (D) Y 102.6 152 333 0.020 0.080 WAK.NN.wus.glib
ORV.BK (D) Y 132.3 282 101 0.020 0.080 ORV.BK.wus.glib
CMB.BK (D) Y 147.4 194 14 0.020 0.080 CMB.BK.wus.glib
RYN.NN (D) Y 148.1 121 302 0.020 0.080 RYN.NN.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2012/06/25 19:44:17
mtinv Version 2.1_DEVEL OCT2008

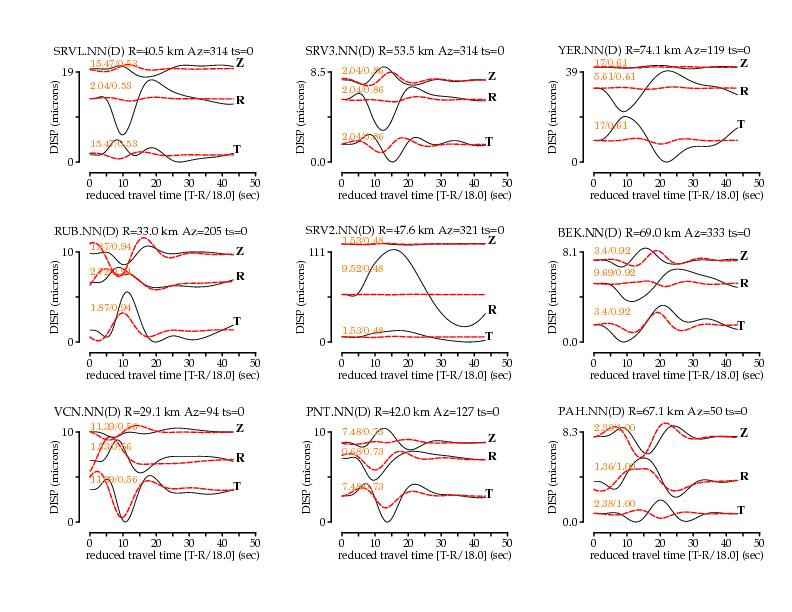

Solution Name: T056.0sec_Z004.0km_
Event ID: 380267
Origin ID: 922292
Date: 2012/06/23,03:51:57
Seismic Moment Tensor Solution
2012/06/23 (175) 03:51:56.00 39.3192 -119.9874 922292
Depth = 4.0 (km)
Mw = 3.97
Mo = 1.13x10^22 (dyne x cm)
Percent Double Couple = 97 %
Percent CLVD = 3 %
no ISO calculated
Epsilon=0.02
Percent Variance Reduction = 0.77 %
Total Fit = 0.17
Major Double Couple
strike dip rake
Nodal Plane 1: 336 32 -61
Nodal Plane 2: 122 62 -107
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.89 Mtt= 0.37 Mff= 0.52
Mrt= -0.61 Mrf= 0.19 Mtf= -0.51 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.37 0.51 -0.61
0.51 0.52 -0.19
-0.61 -0.19 -0.89
Eigenvalues:
T-axis eigenvalue= 1.12
N-axis eigenvalue= 0.02
P-axis eigenvalue= -1.14
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.12 trend=225 plunge=16
N-axis ev= 0.00 trend=130 plunge=15
P-axis ev=-1.12 trend=359 plunge=68
Maximum Azmuithal Gap=77 Distance to Nearest Station= 29.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=13 (defining only)
VCN.NN.D RUB.NN.D SRVL.NN.D PNT.NN.D
SRV2.NN.D SRV3.NN.D PAH.NN.D BEK.NN.D
YER.NN.D WAK.NN.D ORV.BK.D CMB.BK.D
RYN.NN.D
##################
---#----#################
----------------#############
----------------------###########
-------------------------###########
#---------------------------##########
-##------------- ------------##########
####------------ P -------------#########
######----------- --------------#########
#######----------------------------########
#########---------------------------########
##########--------------------------########
############-------------------------#######
##############-----------------------#######
#################--------------------######
###################------------------######
######################-------------######
##########################--------######
#######################################
##############################---
T #############################---
###########################--
########################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
VCN.NN (D) Y 29.1 94 274 0.020 0.080 VCN.NN.wus.glib
RUB.NN (D) Y 33.0 205 25 0.020 0.080 RUB.NN.wus.glib
SRVL.NN (D) Y 40.5 314 133 0.020 0.080 SRVL.NN.wus.glib
PNT.NN (D) Y 42.0 127 307 0.020 0.080 PNT.NN.wus.glib
SRV2.NN (D) Y 47.6 321 140 0.020 0.080 SRV2.NN.wus.glib
SRV3.NN (D) Y 53.5 314 133 0.020 0.080 SRV3.NN.wus.glib
PAH.NN (D) Y 67.1 50 230 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 69.0 333 152 0.020 0.080 BEK.NN.wus.glib
YER.NN (D) Y 74.1 119 300 0.020 0.080 YER.NN.wus.glib
WAK.NN (D) Y 102.6 152 333 0.020 0.080 WAK.NN.wus.glib
ORV.BK (D) Y 132.3 282 101 0.020 0.080 ORV.BK.wus.glib
CMB.BK (D) Y 147.4 194 14 0.020 0.080 CMB.BK.wus.glib
RYN.NN (D) Y 148.1 121 302 0.020 0.080 RYN.NN.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2012/06/25 19:44:17
mtinv Version 2.1_DEVEL OCT2008

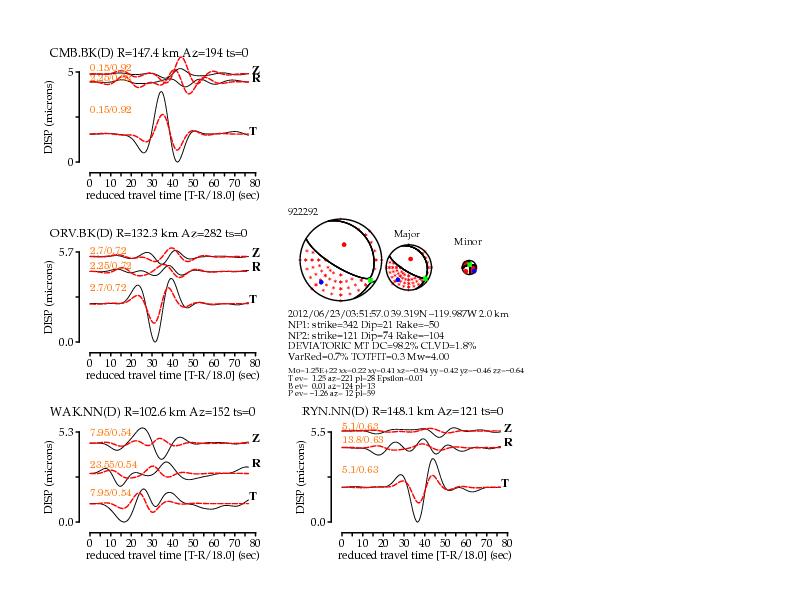

Solution Name: T057.0sec_Z002.0km_
Event ID: 380267
Origin ID: 922292
Date: 2012/06/23,03:51:57
Seismic Moment Tensor Solution
2012/06/23 (175) 03:51:57.00 39.3192 -119.9874 922292
Depth = 2.0 (km)
Mw = 4.00
Mo = 1.25x10^22 (dyne x cm)
Percent Double Couple = 98 %
Percent CLVD = 2 %
no ISO calculated
Epsilon=0.01
Percent Variance Reduction = 0.71 %
Total Fit = 0.26
Major Double Couple
strike dip rake
Nodal Plane 1: 342 21 -50
Nodal Plane 2: 121 74 -104
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.64 Mtt= 0.22 Mff= 0.42
Mrt= -0.94 Mrf= 0.46 Mtf= -0.41 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.22 0.41 -0.94
0.41 0.42 -0.46
-0.94 -0.46 -0.64
Eigenvalues:
T-axis eigenvalue= 1.25
N-axis eigenvalue= 0.01
P-axis eigenvalue= -1.26
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.25 trend=221 plunge=28
N-axis ev= 0.00 trend=124 plunge=13
P-axis ev=-1.25 trend=12 plunge=59
Maximum Azmuithal Gap=77 Distance to Nearest Station= 29.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=13 (defining only)
VCN.NN.D RUB.NN.D SRVL.NN.D PNT.NN.D
SRV2.NN.D SRV3.NN.D PAH.NN.D BEK.NN.D
YER.NN.D WAK.NN.D ORV.BK.D CMB.BK.D
RYN.NN.D
--################
---------------##########
---------------------########
-------------------------########
----------------- --------########
------------------ P ----------#######
-###---------------- -----------#######
#####------------------------------######
########-----------------------------######
##########----------------------------#####
############--------------------------######
##############-------------------------#####
#################----------------------#####
####################-------------------#####
#######################---------------#####
###########################-----------#####
##############################-------####
########################################
### ################################-
# T #############################--
###########################---
###########################--
#######################-
#################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
VCN.NN (D) Y 29.1 94 274 0.020 0.080 VCN.NN.wus.glib
RUB.NN (D) Y 33.0 205 25 0.020 0.080 RUB.NN.wus.glib
SRVL.NN (D) Y 40.5 314 133 0.020 0.080 SRVL.NN.wus.glib
PNT.NN (D) Y 42.0 127 307 0.020 0.080 PNT.NN.wus.glib
SRV2.NN (D) Y 47.6 321 140 0.020 0.080 SRV2.NN.wus.glib
SRV3.NN (D) Y 53.5 314 133 0.020 0.080 SRV3.NN.wus.glib
PAH.NN (D) Y 67.1 50 230 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 69.0 333 152 0.020 0.080 BEK.NN.wus.glib
YER.NN (D) Y 74.1 119 300 0.020 0.080 YER.NN.wus.glib
WAK.NN (D) Y 102.6 152 333 0.020 0.080 WAK.NN.wus.glib
ORV.BK (D) Y 132.3 282 101 0.020 0.080 ORV.BK.wus.glib
CMB.BK (D) Y 147.4 194 14 0.020 0.080 CMB.BK.wus.glib
RYN.NN (D) Y 148.1 121 302 0.020 0.080 RYN.NN.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2012/06/25 19:44:16
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T058.0sec_Z014.0km_
Event ID: 380267
Origin ID: 922292
Date: 2012/06/23,03:51:57
Seismic Moment Tensor Solution
2012/06/23 (175) 03:51:58.00 39.3192 -119.9874 922292
Depth = 14.0 (km)
Mw = 3.74
Mo = 5.09x10^21 (dyne x cm)
Percent Double Couple = 98 %
Percent CLVD = 2 %
no ISO calculated
Epsilon=-0.01
Percent Variance Reduction = 0.21 %
Total Fit = 0.07
Major Double Couple
strike dip rake
Nodal Plane 1: 11 35 -10
Nodal Plane 2: 110 84 -125
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.87 Mtt= -1.07 Mff= 1.94
Mrt= -3.93 Mrf= 1.15 Mtf= -2.52 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-1.07 2.52 -3.93
2.52 1.94 -1.15
-3.93 -1.15 -0.87
Eigenvalues:
T-axis eigenvalue= 5.12
N-axis eigenvalue= -0.06
P-axis eigenvalue= -5.06
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 5.12 trend=228 plunge=30
N-axis ev= 0.00 trend=114 plunge=35
P-axis ev=-5.12 trend=348 plunge=41
Maximum Azmuithal Gap=77 Distance to Nearest Station= 29.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=13 (defining only)
VCN.NN.D RUB.NN.D SRVL.NN.D PNT.NN.D
SRV2.NN.D SRV3.NN.D PAH.NN.D BEK.NN.D
YER.NN.D WAK.NN.D ORV.BK.D CMB.BK.D
RYN.NN.D
-------------#####
-------------------######
--------- ----------#######
----------- P ------------#######
------------ -------------########
------------------------------########
---------------------------------########
#---------------------------------#######
#####------------------------------########
########---------------------------########
#############----------------------#########
#################------------------#########
######################-------------#########
###########################--------#########
#################################-#########
###########################################
#################################-------#
### #########################--------
### T #########################--------
# #######################--------
#########################--------
#####################--------
#################-------
#########--------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
VCN.NN (D) Y 29.1 94 274 0.020 0.080 VCN.NN.wus.glib
RUB.NN (D) Y 33.0 205 25 0.020 0.080 RUB.NN.wus.glib
SRVL.NN (D) Y 40.5 314 133 0.020 0.080 SRVL.NN.wus.glib
PNT.NN (D) Y 42.0 127 307 0.020 0.080 PNT.NN.wus.glib
SRV2.NN (D) Y 47.6 321 140 0.020 0.080 SRV2.NN.wus.glib
SRV3.NN (D) Y 53.5 314 133 0.020 0.080 SRV3.NN.wus.glib
PAH.NN (D) Y 67.1 50 230 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 69.0 333 152 0.020 0.080 BEK.NN.wus.glib
YER.NN (D) Y 74.1 119 300 0.020 0.080 YER.NN.wus.glib
WAK.NN (D) Y 102.6 152 333 0.020 0.080 WAK.NN.wus.glib
ORV.BK (D) Y 132.3 282 101 0.020 0.080 ORV.BK.wus.glib
CMB.BK (D) Y 147.4 194 14 0.020 0.080 CMB.BK.wus.glib
RYN.NN (D) Y 148.1 121 302 0.020 0.080 RYN.NN.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2012/06/25 19:44:16
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T059.0sec_Z020.0km_
Event ID: 380267
Origin ID: 922292
Date: 2012/06/23,03:51:57
Seismic Moment Tensor Solution
2012/06/23 (175) 03:51:59.00 39.3192 -119.9874 922292
Depth = 20.0 (km)
Mw = 3.79
Mo = 6.07x10^21 (dyne x cm)
Percent Double Couple = 95 %
Percent CLVD = 5 %
no ISO calculated
Epsilon=-0.03
Percent Variance Reduction = 0.43 %
Total Fit = 0.07
Major Double Couple
strike dip rake
Nodal Plane 1: 164 30 157
Nodal Plane 2: 274 79 62
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 2.10 Mtt= -1.57 Mff= -0.53
Mrt= -4.97 Mrf= -0.29 Mtf= 2.90 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-1.57 -2.90 -4.97
-2.90 -0.53 0.29
-4.97 0.29 2.10
Eigenvalues:
T-axis eigenvalue= 6.14
N-axis eigenvalue= -0.15
P-axis eigenvalue= -5.99
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 6.14 trend=154 plunge=49
N-axis ev= 0.00 trend=280 plunge=28
P-axis ev=-6.14 trend=27 plunge=28
Maximum Azmuithal Gap=77 Distance to Nearest Station= 29.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=13 (defining only)
VCN.NN.D RUB.NN.D SRVL.NN.D PNT.NN.D
SRV2.NN.D SRV3.NN.D PAH.NN.D BEK.NN.D
YER.NN.D WAK.NN.D ORV.BK.D CMB.BK.D
RYN.NN.D
###--------------
#####------------ -----
#####-------------- P -------
######--------------- ---------
######-----------------------------
######-------------------------------
-######----------------------------------
######-----------------------------------
#######------------------------------------
#######------------------------------------
################################-----------
------#################################----
------#####################################
------######################################
-------####################################
-------####################################
-------##################################
-------#################################
--------############### #############
-------############## T ############
--------############ ##########
--------#####################
---------################
--------##########
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
VCN.NN (D) Y 29.1 94 274 0.020 0.080 VCN.NN.wus.glib
RUB.NN (D) Y 33.0 205 25 0.020 0.080 RUB.NN.wus.glib
SRVL.NN (D) Y 40.5 314 133 0.020 0.080 SRVL.NN.wus.glib
PNT.NN (D) Y 42.0 127 307 0.020 0.080 PNT.NN.wus.glib
SRV2.NN (D) Y 47.6 321 140 0.020 0.080 SRV2.NN.wus.glib
SRV3.NN (D) Y 53.5 314 133 0.020 0.080 SRV3.NN.wus.glib
PAH.NN (D) Y 67.1 50 230 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 69.0 333 152 0.020 0.080 BEK.NN.wus.glib
YER.NN (D) Y 74.1 119 300 0.020 0.080 YER.NN.wus.glib
WAK.NN (D) Y 102.6 152 333 0.020 0.080 WAK.NN.wus.glib
ORV.BK (D) Y 132.3 282 101 0.020 0.080 ORV.BK.wus.glib
CMB.BK (D) Y 147.4 194 14 0.020 0.080 CMB.BK.wus.glib
RYN.NN (D) Y 148.1 121 302 0.020 0.080 RYN.NN.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2012/06/25 19:44:16
mtinv Version 2.1_DEVEL OCT2008
Event ID: 380267
Origin ID: 922292
Date: 2012/06/23,03:51:57
Filename: plotz.jpg
Event ID: 380267
Origin ID: 922292
Date: 2012/06/23,03:51:57
Filename: results.5.jpg
