Event ID: mw
Origin ID: 001
Date:
Filename: fits01.jpg
Event ID: mw
Origin ID: 001
Date:

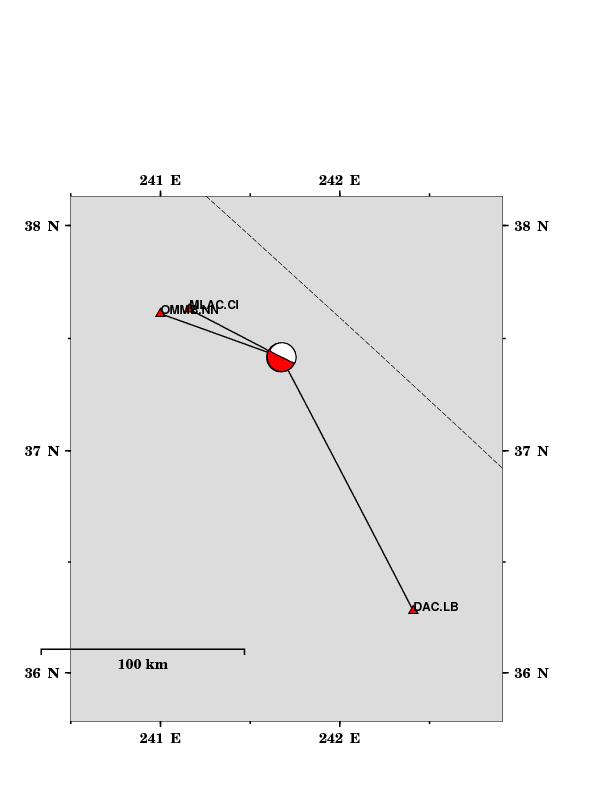

Filename: gmtmap.jpg

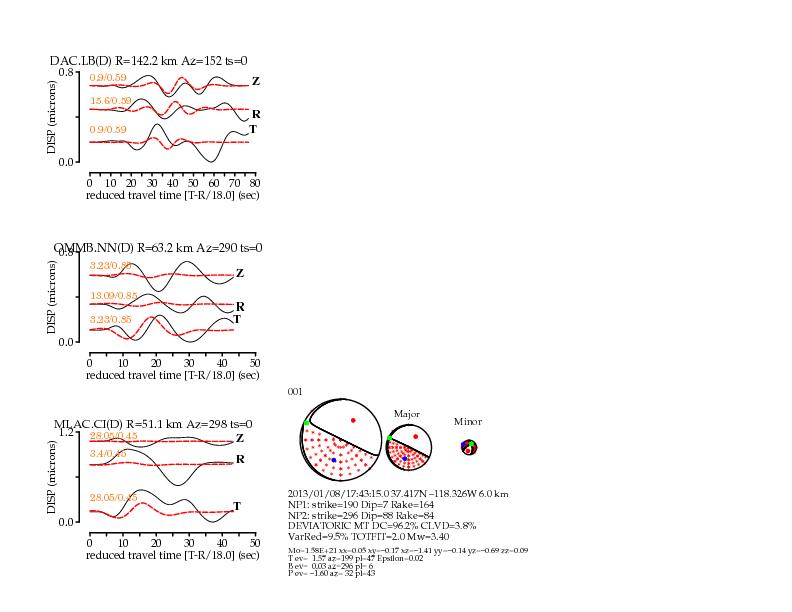

Solution Name: T015.0sec_Z006.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2013/01/08 (008) 17:43:15.00 37.4166 -118.3257 001
Depth = 6.0 (km)
Mw = 3.40
Mo = 1.58x10^21 (dyne x cm)
Percent Double Couple = 96 %
Percent CLVD = 4 %
no ISO calculated
Epsilon=0.02
Percent Variance Reduction = 9.52 %
Total Fit = 1.99
Major Double Couple
strike dip rake
Nodal Plane 1: 190 7 164
Nodal Plane 2: 296 88 84
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.09 Mtt= 0.05 Mff= -0.14
Mrt= -1.41 Mrf= 0.69 Mtf= 0.17 EXP=21
Moment Tensor Elements: Cartesian Coordinates
0.05 -0.17 -1.41
-0.17 -0.14 -0.69
-1.41 -0.69 0.09
Eigenvalues:
T-axis eigenvalue= 1.57
N-axis eigenvalue= 0.03
P-axis eigenvalue= -1.60
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.57 trend=199 plunge=47
N-axis ev= 0.00 trend=296 plunge=6
P-axis ev=-1.57 trend=32 plunge=43
Maximum Azmuithal Gap=215 Distance to Nearest Station= 51.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MLAC.CI.D OMMB.NN.D DAC.LB.D
############-----
######-------------------
####-------------------------
####----------------- ---------
###------------------- P ----------
###-------------------- -----------
-###-------------------------------------
-######----------------------------------
--#########--------------------------------
-##############----------------------------
-##################------------------------
-######################--------------------
-##########################----------------
-#############################-------------
-#################################---------
--###################################------
-######################################--
-######################################
--########## ########################
-######### T #######################
-######## #####################
-############################
-########################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 51.1 298 117 0.020 0.080 MLAC.CI.wus.glib
OMMB.NN (D) Y 63.2 290 110 0.020 0.080 OMMB.NN.wus.glib
DAC.LB (D) Y 142.2 152 333 0.020 0.080 DAC.LB.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2013/01/08 18:54:33
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T016.0sec_Z002.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2013/01/08 (008) 17:43:16.00 37.4166 -118.3257 001
Depth = 2.0 (km)
Mw = 3.38
Mo = 1.47x10^21 (dyne x cm)
Percent Double Couple = 91 %
Percent CLVD = 9 %
no ISO calculated
Epsilon=0.04
Percent Variance Reduction = 11.45 %
Total Fit = 1.19
Major Double Couple
strike dip rake
Nodal Plane 1: 175 10 151
Nodal Plane 2: 293 85 81
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.21 Mtt= -0.06 Mff= -0.15
Mrt= -1.32 Mrf= 0.55 Mtf= 0.28 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.06 -0.28 -1.32
-0.28 -0.15 -0.55
-1.32 -0.55 0.21
Eigenvalues:
T-axis eigenvalue= 1.43
N-axis eigenvalue= 0.06
P-axis eigenvalue= -1.50
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.43 trend=193 plunge=49
N-axis ev= 0.00 trend=294 plunge=9
P-axis ev=-1.43 trend=31 plunge=40
Maximum Azmuithal Gap=215 Distance to Nearest Station= 51.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MLAC.CI.D OMMB.NN.D DAC.LB.D
#######----------
#####--------------------
####-------------------------
####----------------- ---------
###------------------- P ----------
###-------------------- -----------
-###-------------------------------------
#####------------------------------------
--#########--------------------------------
--###############--------------------------
--###################----------------------
-########################------------------
-############################--------------
--###############################----------
--##################################-------
--######################################---
--#######################################
--######################################
--############ ######################
--########## T #####################
--######### ###################
--###########################
---######################
--################
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 51.1 298 117 0.020 0.080 MLAC.CI.wus.glib
OMMB.NN (D) Y 63.2 290 110 0.020 0.080 OMMB.NN.wus.glib
DAC.LB (D) Y 142.2 152 333 0.020 0.080 DAC.LB.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2013/01/08 18:54:33
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T017.0sec_Z002.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2013/01/08 (008) 17:43:17.00 37.4166 -118.3257 001
Depth = 2.0 (km)
Mw = 3.33
Mo = 1.21x10^21 (dyne x cm)
Percent Double Couple = 71 %
Percent CLVD = 29 %
no ISO calculated
Epsilon=0.15
Percent Variance Reduction = 14.51 %
Total Fit = 0.48
Major Double Couple
strike dip rake
Nodal Plane 1: 174 16 150
Nodal Plane 2: 293 82 76
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.25 Mtt= -0.11 Mff= -0.14
Mrt= -1.02 Mrf= 0.46 Mtf= 0.42 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.11 -0.42 -1.02
-0.42 -0.14 -0.46
-1.02 -0.46 0.25
Eigenvalues:
T-axis eigenvalue= 1.11
N-axis eigenvalue= 0.19
P-axis eigenvalue= -1.30
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.11 trend=187 plunge=51
N-axis ev= 0.00 trend=295 plunge=14
P-axis ev=-1.11 trend=35 plunge=35
Maximum Azmuithal Gap=215 Distance to Nearest Station= 51.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MLAC.CI.D OMMB.NN.D DAC.LB.D
######-----------
######-------------------
#####------------------------
#####------------------ -------
####-------------------- P --------
####--------------------- ---------
-####------------------------------------
#######----------------------------------
---###########-----------------------------
---################------------------------
---####################--------------------
---########################----------------
---############################------------
---###############################---------
---##################################------
----####################################---
---######################################
---#####################################
----########### #####################
---########## T ####################
----######## ##################
----#########################
----#####################
---###############
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 51.1 298 117 0.020 0.080 MLAC.CI.wus.glib
OMMB.NN (D) Y 63.2 290 110 0.020 0.080 OMMB.NN.wus.glib
DAC.LB (D) Y 142.2 152 333 0.020 0.080 DAC.LB.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2013/01/08 18:54:33
mtinv Version 2.1_DEVEL OCT2008

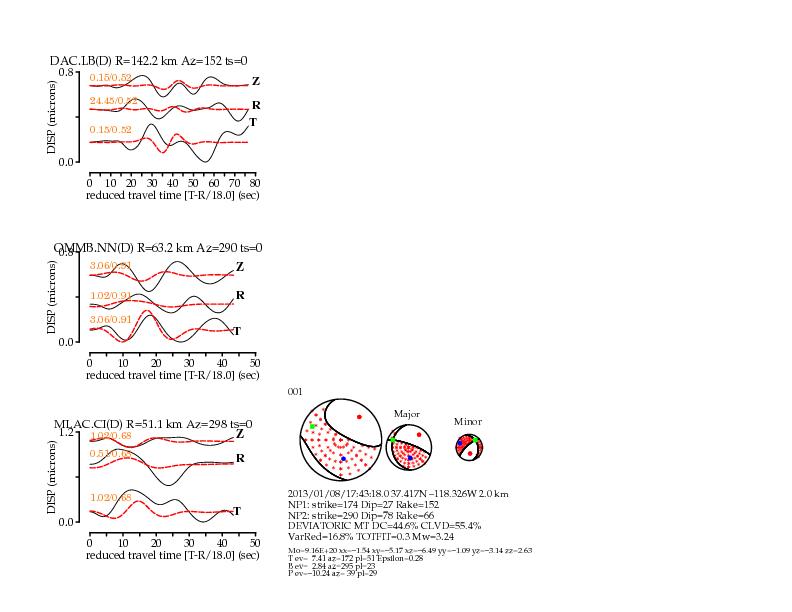

Solution Name: T018.0sec_Z002.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2013/01/08 (008) 17:43:18.00 37.4166 -118.3257 001
Depth = 2.0 (km)
Mw = 3.24
Mo = 9.16x10^20 (dyne x cm)
Percent Double Couple = 45 %
Percent CLVD = 55 %
no ISO calculated
Epsilon=0.28
Percent Variance Reduction = 16.83 %
Total Fit = 0.30
Major Double Couple
strike dip rake
Nodal Plane 1: 174 27 152
Nodal Plane 2: 290 78 66
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 2.63 Mtt= -1.54 Mff= -1.09
Mrt= -6.49 Mrf= 3.14 Mtf= 5.17 EXP=20
Moment Tensor Elements: Cartesian Coordinates
-1.54 -5.17 -6.49
-5.17 -1.09 -3.14
-6.49 -3.14 2.63
Eigenvalues:
T-axis eigenvalue= 7.41
N-axis eigenvalue= 2.84
P-axis eigenvalue=-10.24
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 7.41 trend=172 plunge=51
N-axis ev= 0.00 trend=295 plunge=23
P-axis ev=-7.41 trend=39 plunge=29
Maximum Azmuithal Gap=215 Distance to Nearest Station= 51.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MLAC.CI.D OMMB.NN.D DAC.LB.D
######-----------
#######------------------
#######---------------- ---
#######------------------ P -----
######-------------------- ------
######-------------------------------
-######----------------------------------
######-----------------------------------
------##########---------------------------
-----#################---------------------
-----#####################-----------------
-----#########################-------------
-----#############################---------
-----################################------
------##################################---
------####################################-
------###################################
-----###################################
------############# #################
-----############ T ################
------########## ##############
-----########################
------###################
-----#############
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 51.1 298 117 0.020 0.080 MLAC.CI.wus.glib
OMMB.NN (D) Y 63.2 290 110 0.020 0.080 OMMB.NN.wus.glib
DAC.LB (D) Y 142.2 152 333 0.020 0.080 DAC.LB.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2013/01/08 18:54:33
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T019.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2013/01/08 (008) 17:43:19.00 37.4166 -118.3257 001
Depth = 4.0 (km)
Mw = 3.12
Mo = 6.00x10^20 (dyne x cm)
Percent Double Couple = 68 %
Percent CLVD = 32 %
no ISO calculated
Epsilon=0.16
Percent Variance Reduction = 19.21 %
Total Fit = 0.57
Major Double Couple
strike dip rake
Nodal Plane 1: 178 82 -179
Nodal Plane 2: 88 89 -8
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.97 Mtt= -0.89 Mff= -0.08
Mrt= -0.93 Mrf= 0.35 Mtf= 5.85 EXP=20
Moment Tensor Elements: Cartesian Coordinates
-0.89 -5.85 -0.93
-5.85 -0.08 -0.35
-0.93 -0.35 0.97
Eigenvalues:
T-axis eigenvalue= 5.41
N-axis eigenvalue= 1.05
P-axis eigenvalue= -6.46
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 5.41 trend=133 plunge=5
N-axis ev= 0.00 trend=258 plunge=81
P-axis ev=-5.41 trend=43 plunge=7
Maximum Azmuithal Gap=215 Distance to Nearest Station= 51.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MLAC.CI.D OMMB.NN.D DAC.LB.D
########---------
############-------------
##############-------------
###############-------------- P -
################-------------- --
#################--------------------
-##################----------------------
###################----------------------
####################-----------------------
####################-----------------------
####################-----------------------
####################---------------#########
############################################
-------------------#########################
-------------------########################
-------------------########################
------------------#######################
-----------------#######################
------------------#####################
----------------############## ###
---------------############## T #
--------------#############
------------#############
--------##########
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 51.1 298 117 0.020 0.080 MLAC.CI.wus.glib
OMMB.NN (D) Y 63.2 290 110 0.020 0.080 OMMB.NN.wus.glib
DAC.LB (D) Y 142.2 152 333 0.020 0.080 DAC.LB.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2013/01/08 18:54:33
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T020.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2013/01/08 (008) 17:43:20.00 37.4166 -118.3257 001
Depth = 4.0 (km)
Mw = 3.13
Mo = 6.12x10^20 (dyne x cm)
Percent Double Couple = 90 %
Percent CLVD = 10 %
no ISO calculated
Epsilon=0.05
Percent Variance Reduction = 20.17 %
Total Fit = 1.80
Major Double Couple
strike dip rake
Nodal Plane 1: 358 76 -170
Nodal Plane 2: 265 80 -15
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.26 Mtt= -0.64 Mff= 0.90
Mrt= 1.63 Mrf= -1.01 Mtf= 5.75 EXP=20
Moment Tensor Elements: Cartesian Coordinates
-0.64 -5.75 1.63
-5.75 0.90 1.01
1.63 1.01 -0.26
Eigenvalues:
T-axis eigenvalue= 5.95
N-axis eigenvalue= 0.32
P-axis eigenvalue= -6.27
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 5.95 trend=312 plunge=3
N-axis ev= 0.00 trend=51 plunge=72
P-axis ev=-5.95 trend=221 plunge=17
Maximum Azmuithal Gap=215 Distance to Nearest Station= 51.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MLAC.CI.D OMMB.NN.D DAC.LB.D
#########--------
##############-----------
################-------------
##################--------------
T ##################---------------
###################---------------
-#######################-----------------
########################-----------------
##########################-----------------
##########################-----------------
############################################
##############-----------###################
######-------------------###################
#------------------------###################
-------------------------##################
-------------------------##################
------------------------#################
-----------------------#################
----------------------#################
- ----------------################
P ----------------##############
----------------############
--------------###########
---------#########
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 51.1 298 117 0.020 0.080 MLAC.CI.wus.glib
OMMB.NN (D) Y 63.2 290 110 0.020 0.080 OMMB.NN.wus.glib
DAC.LB (D) Y 142.2 152 333 0.020 0.080 DAC.LB.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2013/01/08 18:54:33
mtinv Version 2.1_DEVEL OCT2008

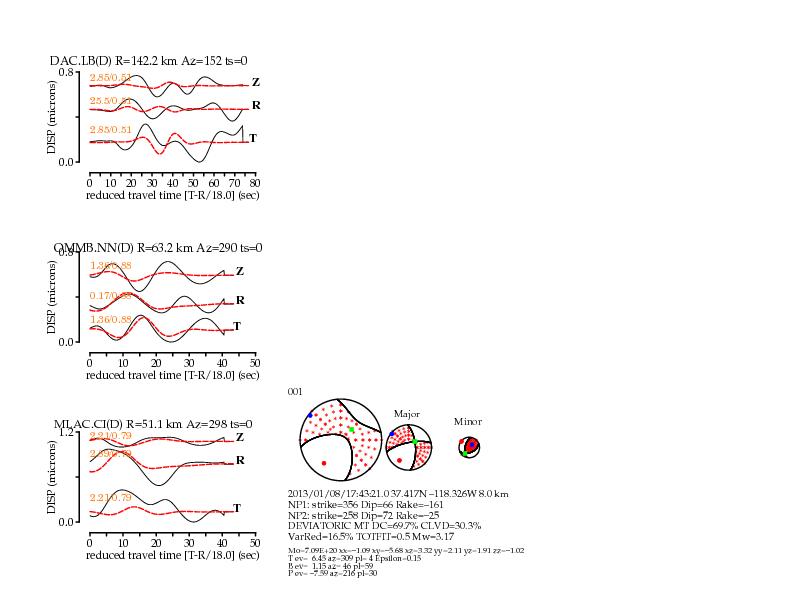

Solution Name: T021.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2013/01/08 (008) 17:43:21.00 37.4166 -118.3257 001
Depth = 8.0 (km)
Mw = 3.17
Mo = 7.09x10^20 (dyne x cm)
Percent Double Couple = 70 %
Percent CLVD = 30 %
no ISO calculated
Epsilon=0.15
Percent Variance Reduction = 16.53 %
Total Fit = 0.53
Major Double Couple
strike dip rake
Nodal Plane 1: 356 66 -161
Nodal Plane 2: 258 72 -25
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.02 Mtt= -1.09 Mff= 2.11
Mrt= 3.32 Mrf= -1.91 Mtf= 5.68 EXP=20
Moment Tensor Elements: Cartesian Coordinates
-1.09 -5.68 3.32
-5.68 2.11 1.91
3.32 1.91 -1.02
Eigenvalues:
T-axis eigenvalue= 6.45
N-axis eigenvalue= 1.15
P-axis eigenvalue= -7.59
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 6.45 trend=309 plunge=4
N-axis ev= 0.00 trend=46 plunge=59
P-axis ev=-6.45 trend=216 plunge=30
Maximum Azmuithal Gap=215 Distance to Nearest Station= 51.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MLAC.CI.D OMMB.NN.D DAC.LB.D
#########--------
##############-----------
#################------------
####################-------------
T ######################-------------
#######################-------------
-#########################---------------
##########################---------------
#######################################----
##########################-################
#################----------#################
###########----------------#################
#######---------------------################
####------------------------################
##--------------------------###############
---------------------------################
--------------------------###############
-------------------------###############
-------------------------##############
--- ----------------##############
-- P ----------------############
---------------###########
---------------##########
----------########
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MLAC.CI (D) Y 51.1 298 117 0.020 0.080 MLAC.CI.wus.glib
OMMB.NN (D) Y 63.2 290 110 0.020 0.080 OMMB.NN.wus.glib
DAC.LB (D) Y 142.2 152 333 0.020 0.080 DAC.LB.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2013/01/08 18:54:32
mtinv Version 2.1_DEVEL OCT2008
Event ID: mw
Origin ID: 001
Date:
Filename: plotz.jpg
Event ID: mw
Origin ID: 001
Date:
Filename: results.5.jpg
