Event ID: mw
Origin ID: 001
Date:

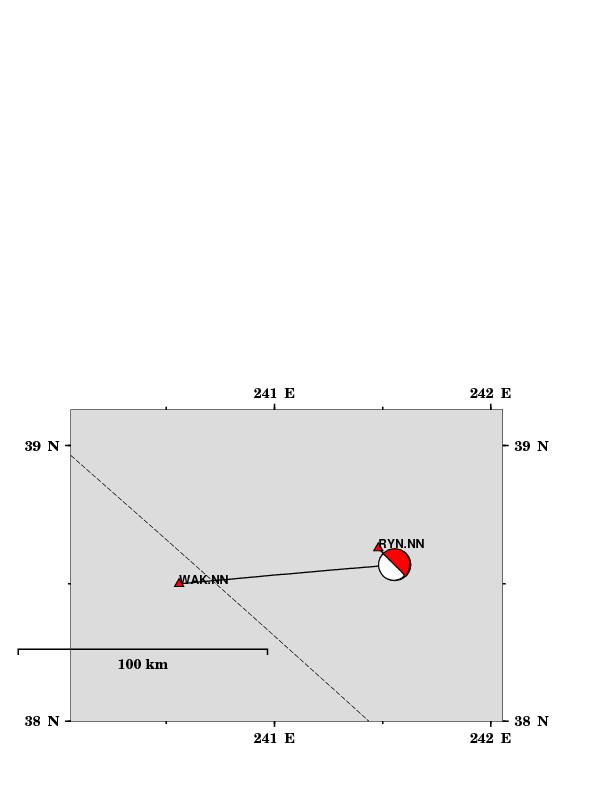

Filename: gmtmap.jpg

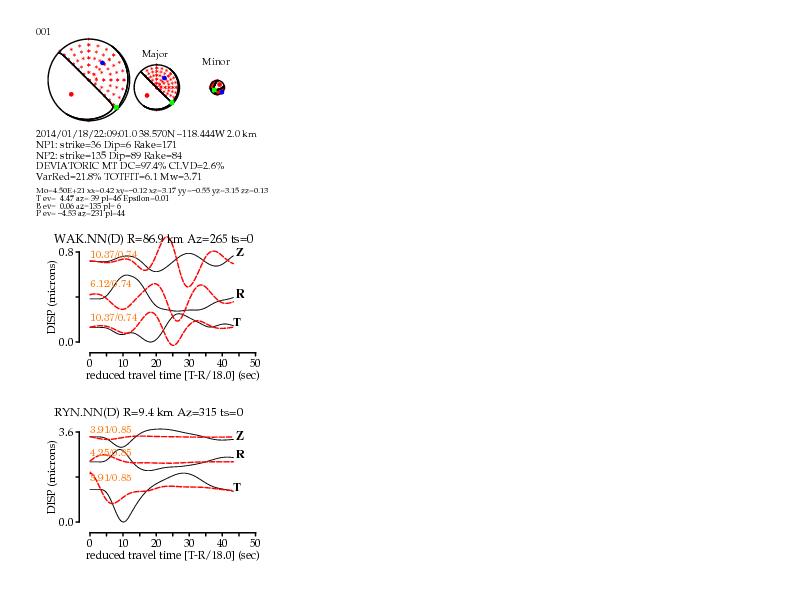

Solution Name: T001.0sec_Z002.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/01/18 (018) 22:09:01.00 38.5696 -118.4437 001
Depth = 2.0 (km)
Mw = 3.71
Mo = 4.50x10^21 (dyne x cm)
Percent Double Couple = 97 %
Percent CLVD = 3 %
no ISO calculated
Epsilon=0.01
Percent Variance Reduction = 21.78 %
Total Fit = 6.11
Major Double Couple
strike dip rake
Nodal Plane 1: 36 6 171
Nodal Plane 2: 135 89 84
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.13 Mtt= 0.42 Mff= -0.55
Mrt= 3.17 Mrf= -3.15 Mtf= 0.12 EXP=21
Moment Tensor Elements: Cartesian Coordinates
0.42 -0.12 3.17
-0.12 -0.55 3.15
3.17 3.15 0.13
Eigenvalues:
T-axis eigenvalue= 4.47
N-axis eigenvalue= 0.06
P-axis eigenvalue= -4.53
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 4.47 trend=39 plunge=46
N-axis ev= 0.00 trend=135 plunge=6
P-axis ev=-4.47 trend=231 plunge=44
Maximum Azmuithal Gap=310 Distance to Nearest Station= 9.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
RYN.NN.D WAK.NN.D
##################
#########################
#############################
-################################
---##################### ########
------################### T #########
---------################## ##########-
-----------##############################
--------------############################-
----------------##########################-
-----------------##########################
-------------------########################
---------------------######################
-----------------------###################-
-------------------------#################-
--------------------------################-
------ ------------------#############-
----- P --------------------##########-
----- ----------------------#######--
------------------------------####-
-----------------------------###-
--#---------------------#####
#####-------------#######
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
RYN.NN (D) Y 9.4 315 135 0.020 0.080 RYN.NN.wus.glib
WAK.NN (D) Y 86.9 265 85 0.020 0.080 WAK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/01/19 00:25:00
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T002.0sec_Z002.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/01/18 (018) 22:09:02.00 38.5696 -118.4437 001
Depth = 2.0 (km)
Mw = 3.72
Mo = 4.71x10^21 (dyne x cm)
Percent Double Couple = 96 %
Percent CLVD = 4 %
no ISO calculated
Epsilon=0.02
Percent Variance Reduction = 31.49 %
Total Fit = 6.25
Major Double Couple
strike dip rake
Nodal Plane 1: 21 5 157
Nodal Plane 2: 134 88 86
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.25 Mtt= 0.21 Mff= -0.46
Mrt= 3.38 Mrf= -3.25 Mtf= 0.23 EXP=21
Moment Tensor Elements: Cartesian Coordinates
0.21 -0.23 3.38
-0.23 -0.46 3.25
3.38 3.25 0.25
Eigenvalues:
T-axis eigenvalue= 4.66
N-axis eigenvalue= 0.10
P-axis eigenvalue= -4.76
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 4.66 trend=40 plunge=47
N-axis ev= 0.00 trend=134 plunge=4
P-axis ev=-4.66 trend=228 plunge=43
Maximum Azmuithal Gap=310 Distance to Nearest Station= 9.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
RYN.NN.D WAK.NN.D
#################
########################-
#############################
-###############################-
--###################### ########
-----#################### T #########
---------################## ##########-
----------###############################
-------------#############################-
---------------############################
-----------------##########################
-------------------########################
---------------------######################
----------------------#####################
------------------------##################-
--------------------------################-
------ ------------------#############-
----- P --------------------###########
----- ----------------------########-
------------------------------####-
------------------------------###
-------------------------####
--------------------#####
-#################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
RYN.NN (D) Y 9.4 315 135 0.020 0.080 RYN.NN.wus.glib
WAK.NN (D) Y 86.9 265 85 0.020 0.080 WAK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/01/19 00:25:00
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T003.0sec_Z014.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/01/18 (018) 22:09:03.00 38.5696 -118.4437 001
Depth = 14.0 (km)
Mw = 3.63
Mo = 3.44x10^21 (dyne x cm)
Percent Double Couple = 97 %
Percent CLVD = 3 %
no ISO calculated
Epsilon=-0.01
Percent Variance Reduction = 36.59 %
Total Fit = 9.99
Major Double Couple
strike dip rake
Nodal Plane 1: 324 84 -175
Nodal Plane 2: 233 85 -6
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.11 Mtt= -3.20 Mff= 3.31
Mrt= 0.45 Mrf= -0.06 Mtf= 1.02 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-3.20 -1.02 0.45
-1.02 3.31 0.06
0.45 0.06 -0.11
Eigenvalues:
T-axis eigenvalue= 3.47
N-axis eigenvalue= -0.05
P-axis eigenvalue= -3.42
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 3.47 trend=279 plunge=0
N-axis ev= 0.00 trend=10 plunge=82
P-axis ev=-3.47 trend=189 plunge=8
Maximum Azmuithal Gap=310 Distance to Nearest Station= 9.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
RYN.NN.D WAK.NN.D
-----------------
-------------------------
###--------------------------
#######--------------------------
##########-------------------------#
############--------------------######
-###############---------------##########
#################-----------#############
####################------#################
####################---###################
T ###########################################
###########################################
###################----#####################
#################-------####################
###############-----------#################
#############--------------################
##########-----------------##############
######---------------------#############
#####-----------------------###########
#--------------------------#########
---------------------------######
--------------------------###
------- --------------
--- P -----------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
RYN.NN (D) Y 9.4 315 135 0.020 0.080 RYN.NN.wus.glib
WAK.NN (D) Y 86.9 265 85 0.020 0.080 WAK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/01/19 00:25:00
mtinv Version 2.1_DEVEL OCT2008

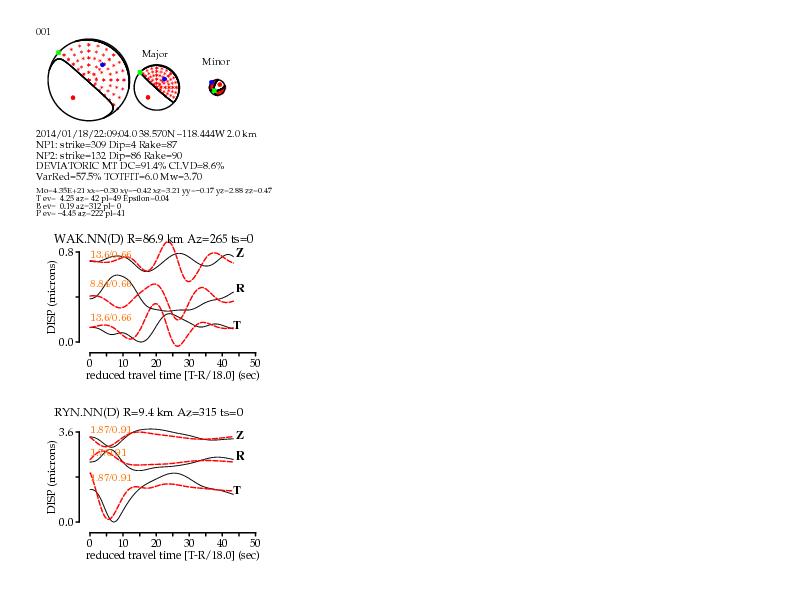

Solution Name: T004.0sec_Z002.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/01/18 (018) 22:09:04.00 38.5696 -118.4437 001
Depth = 2.0 (km)
Mw = 3.70
Mo = 4.35x10^21 (dyne x cm)
Percent Double Couple = 91 %
Percent CLVD = 9 %
no ISO calculated
Epsilon=0.04
Percent Variance Reduction = 57.46 %
Total Fit = 5.98
Major Double Couple
strike dip rake
Nodal Plane 1: 309 4 87
Nodal Plane 2: 132 86 90
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.47 Mtt= -0.30 Mff= -0.17
Mrt= 3.21 Mrf= -2.88 Mtf= 0.42 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.30 -0.42 3.21
-0.42 -0.17 2.88
3.21 2.88 0.47
Eigenvalues:
T-axis eigenvalue= 4.25
N-axis eigenvalue= 0.19
P-axis eigenvalue= -4.45
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 4.25 trend=42 plunge=49
N-axis ev= 0.00 trend=312 plunge=0
P-axis ev=-4.25 trend=222 plunge=41
Maximum Azmuithal Gap=310 Distance to Nearest Station= 9.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
RYN.NN.D WAK.NN.D
################-
-#######################-
############################-
################################-
###################################
----##################### #########
--------################### T ##########-
---------################## ###########
------------##############################-
--------------#############################
----------------###########################
------------------#########################
--------------------#######################
----------------------#####################
------------------------###################
--------------------------#################
---------------------------##############
----- --------------------############
----- P -----------------------#######-
--- -------------------------####
---------------------------------
-----------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
RYN.NN (D) Y 9.4 315 135 0.020 0.080 RYN.NN.wus.glib
WAK.NN (D) Y 86.9 265 85 0.020 0.080 WAK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/01/19 00:25:00
mtinv Version 2.1_DEVEL OCT2008

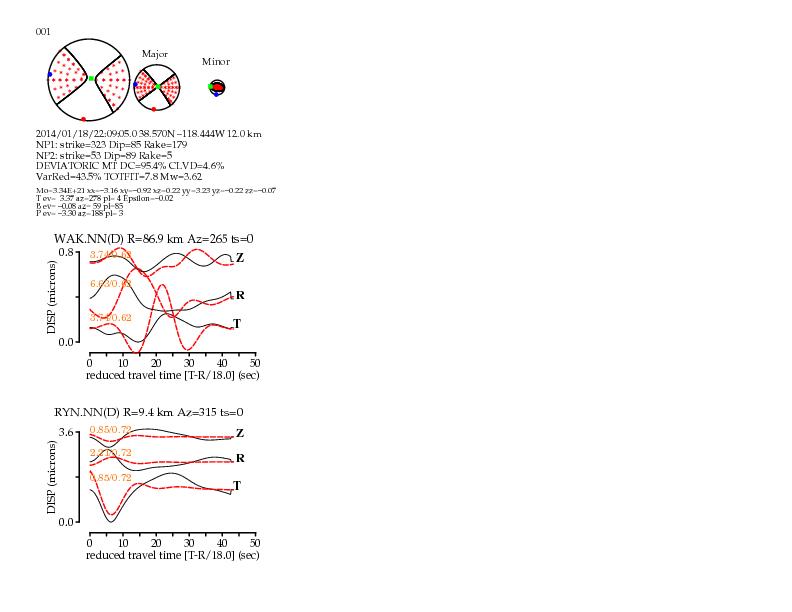

Solution Name: T005.0sec_Z012.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/01/18 (018) 22:09:05.00 38.5696 -118.4437 001
Depth = 12.0 (km)
Mw = 3.62
Mo = 3.34x10^21 (dyne x cm)
Percent Double Couple = 95 %
Percent CLVD = 5 %
no ISO calculated
Epsilon=-0.02
Percent Variance Reduction = 43.49 %
Total Fit = 7.79
Major Double Couple
strike dip rake
Nodal Plane 1: 323 85 179
Nodal Plane 2: 53 89 5
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.07 Mtt= -3.16 Mff= 3.23
Mrt= 0.22 Mrf= 0.22 Mtf= 0.92 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-3.16 -0.92 0.22
-0.92 3.23 -0.22
0.22 -0.22 -0.07
Eigenvalues:
T-axis eigenvalue= 3.37
N-axis eigenvalue= -0.08
P-axis eigenvalue= -3.30
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 3.37 trend=278 plunge=4
N-axis ev= 0.00 trend=59 plunge=85
P-axis ev=-3.37 trend=188 plunge=3
Maximum Azmuithal Gap=310 Distance to Nearest Station= 9.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
RYN.NN.D WAK.NN.D
-----------------
-------------------------
###--------------------------
#######--------------------------
##########-------------------------#
############---------------------#####
-###############-----------------########
#################-------------###########
####################---------##############
####################-----#################
T #####################--####################
###########################################
######################-#####################
####################----####################
#################---------#################
###############------------################
###########----------------##############
########-------------------#############
######-----------------------##########
#---------------------------########
----------------------------#####
---------------------------##
------- --------------
--- P -----------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
RYN.NN (D) Y 9.4 315 135 0.020 0.080 RYN.NN.wus.glib
WAK.NN (D) Y 86.9 265 85 0.020 0.080 WAK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/01/19 00:25:00
mtinv Version 2.1_DEVEL OCT2008

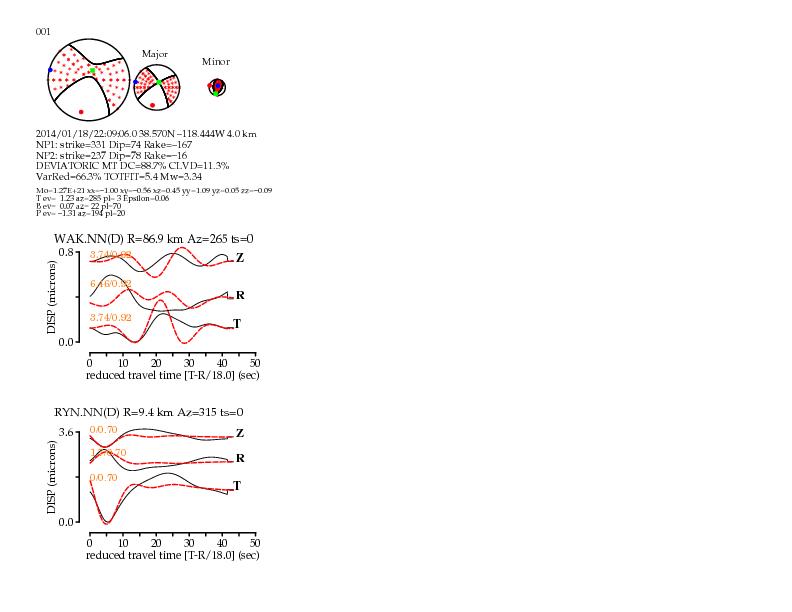

Solution Name: T006.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/01/18 (018) 22:09:06.00 38.5696 -118.4437 001
Depth = 4.0 (km)
Mw = 3.34
Mo = 1.27x10^21 (dyne x cm)
Percent Double Couple = 89 %
Percent CLVD = 11 %
no ISO calculated
Epsilon=0.06
Percent Variance Reduction = 66.32 %
Total Fit = 5.39
Major Double Couple
strike dip rake
Nodal Plane 1: 331 74 -167
Nodal Plane 2: 237 78 -16
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.09 Mtt= -1.00 Mff= 1.09
Mrt= 0.45 Mrf= -0.05 Mtf= 0.56 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-1.00 -0.56 0.45
-0.56 1.09 0.05
0.45 0.05 -0.09
Eigenvalues:
T-axis eigenvalue= 1.23
N-axis eigenvalue= 0.07
P-axis eigenvalue= -1.31
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.23 trend=285 plunge=3
N-axis ev= 0.00 trend=22 plunge=70
P-axis ev=-1.23 trend=194 plunge=20
Maximum Azmuithal Gap=310 Distance to Nearest Station= 9.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
RYN.NN.D WAK.NN.D
-----------------
####---------------------
########---------------------
############---------------------
##############---------------------
#################----------------#####
-###################----------###########
#####################-----###############
T ##########################################
##########################################
#####################---####################
###################------###################
################----------##################
##############-------------#################
############----------------###############
#########--------------------##############
######----------------------#############
####------------------------############
##--------------------------###########
---------------------------#########
--------------------------#######
------- ---------------####
----- P ---------------##
- -------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
RYN.NN (D) Y 9.4 315 135 0.020 0.080 RYN.NN.wus.glib
WAK.NN (D) Y 86.9 265 85 0.020 0.080 WAK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/01/19 00:25:00
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T007.0sec_Z010.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/01/18 (018) 22:09:07.00 38.5696 -118.4437 001
Depth = 10.0 (km)
Mw = 3.55
Mo = 2.63x10^21 (dyne x cm)
Percent Double Couple = 94 %
Percent CLVD = 6 %
no ISO calculated
Epsilon=0.03
Percent Variance Reduction = 33.59 %
Total Fit = 4.50
Major Double Couple
strike dip rake
Nodal Plane 1: 52 73 7
Nodal Plane 2: 320 83 163
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.26 Mtt= -2.57 Mff= 2.31
Mrt= -0.26 Mrf= 0.73 Mtf= 0.53 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-2.57 -0.53 -0.26
-0.53 2.31 -0.73
-0.26 -0.73 0.26
Eigenvalues:
T-axis eigenvalue= 2.58
N-axis eigenvalue= 0.09
P-axis eigenvalue= -2.67
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 2.58 trend=275 plunge=17
N-axis ev= 0.00 trend=118 plunge=72
P-axis ev=-2.58 trend=7 plunge=7
Maximum Azmuithal Gap=310 Distance to Nearest Station= 9.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
RYN.NN.D WAK.NN.D
-------- P ------
------------ ----------
#----------------------------
######---------------------------
########--------------------------##
###########-----------------------####
-##############--------------------######
#################-----------------#######
####################-------------##########
#####################-----------###########
######################-------##############
T #######################----################
###########################################
############################################
########################---################
######################------###############
##################----------#############
##############---------------###########
###########-------------------#########
####-------------------------#######
-----------------------------####
----------------------------#
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
RYN.NN (D) Y 9.4 315 135 0.020 0.080 RYN.NN.wus.glib
WAK.NN (D) Y 86.9 265 85 0.020 0.080 WAK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/01/19 00:25:00
mtinv Version 2.1_DEVEL OCT2008
Event ID: mw
Origin ID: 001
Date:

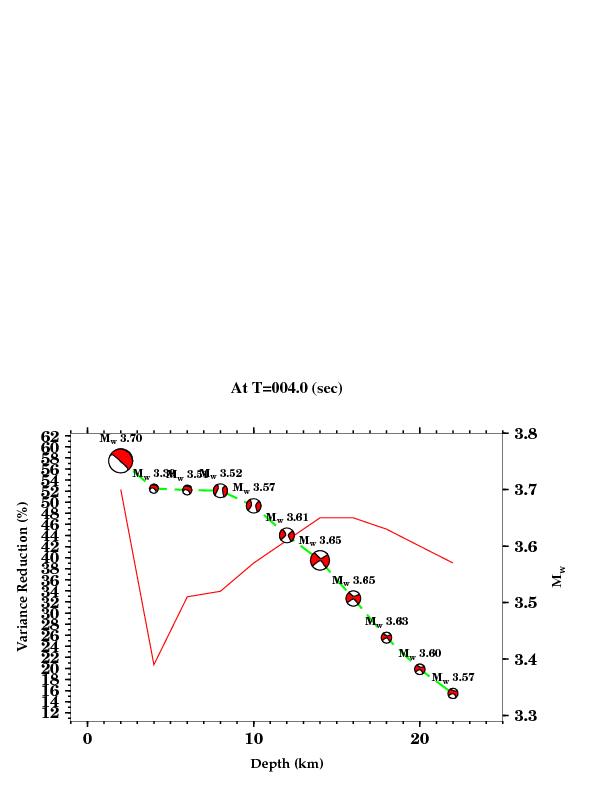

Filename: plotz.jpg
Event ID: mw
Origin ID: 001
Date:

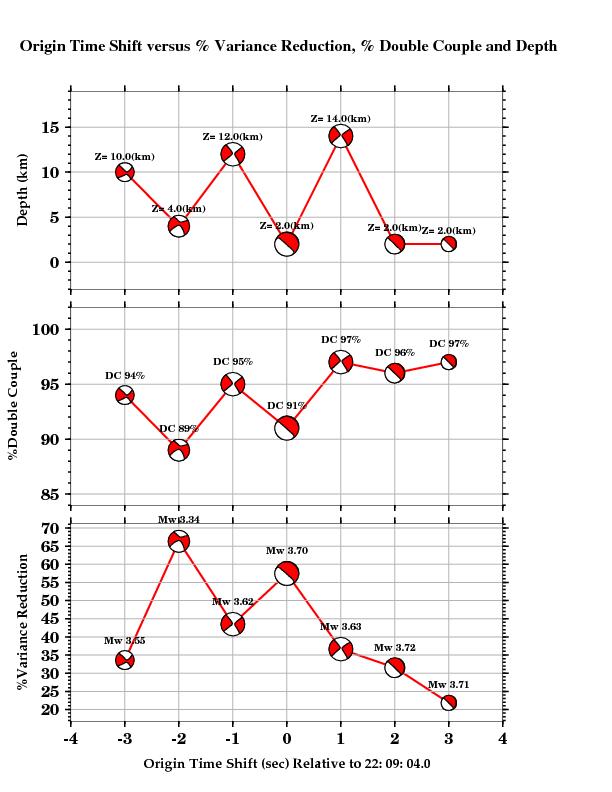

Filename: results.5.jpg
