Event ID: mw
Origin ID: 001
Date:
Filename: gmtmap.jpg
Solution Name: T000.0sec_Z006.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/12/23 (357) 01:42:00.00 41.8330 -119.6264 001
Depth = 6.0 (km)
Mw = 3.46
Mo = 1.90x10^21 (dyne x cm)
Percent Double Couple = 94 %
Percent CLVD = 6 %
no ISO calculated
Epsilon=-0.03
Percent Variance Reduction = 45.20 %
Total Fit = 6.11
Major Double Couple
strike dip rake
Nodal Plane 1: 107 12 34
Nodal Plane 2: 344 83 100
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.47 Mtt= -0.27 Mff= -0.20
Mrt= -0.46 Mrf= 1.75 Mtf= 0.38 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.27 -0.38 -0.46
-0.38 -0.20 -1.75
-0.46 -1.75 0.47
Eigenvalues:
T-axis eigenvalue= 1.93
N-axis eigenvalue= -0.06
P-axis eigenvalue= -1.87
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.93 trend=265 plunge=51
N-axis ev= 0.00 trend=162 plunge=10
P-axis ev=-1.93 trend=64 plunge=37
Maximum Azmuithal Gap=227 Distance to Nearest Station= 56.2 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MOD.BK.D WVOR.US.D TREE.UW.D
###--------------
########-----------------
###########------------------
##############-------------------
################-------------------
#################--------------------
-###################------------- -----
#####################------------ P -----
######################------------ ------
#######################--------------------
#######################--------------------
##### ################-------------------
##### T ################-------------------
-#### #################------------------
-########################------------------
--########################----------------#
--#######################---------------#
-########################------------###
---######################-----------###
--#####################---------####
---####################-----#####
----#################-#######
------###################
--------------####
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MOD.BK (D) Y 56.2 278 97 0.020 0.080 MOD.BK.wus.glib
WVOR.US (D) Y 104.9 50 231 0.020 0.080 WVOR.US.wus.glib
TREE.UW (D) Y 144.0 314 133 0.020 0.080 TREE.UW.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/12/23 04:26:11
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T001.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/12/23 (357) 01:42:01.00 41.8330 -119.6264 001
Depth = 8.0 (km)
Mw = 3.40
Mo = 1.58x10^21 (dyne x cm)
Percent Double Couple = 98 %
Percent CLVD = 2 %
no ISO calculated
Epsilon=0.01
Percent Variance Reduction = 55.45 %
Total Fit = 20.72
Major Double Couple
strike dip rake
Nodal Plane 1: 92 20 4
Nodal Plane 2: 357 88 110
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.07 Mtt= -0.04 Mff= -0.04
Mrt= -0.06 Mrf= 1.48 Mtf= 0.54 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.04 -0.54 -0.06
-0.54 -0.04 -1.48
-0.06 -1.48 0.07
Eigenvalues:
T-axis eigenvalue= 1.57
N-axis eigenvalue= 0.01
P-axis eigenvalue= -1.58
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.57 trend=287 plunge=43
N-axis ev= 0.00 trend=177 plunge=20
P-axis ev=-1.57 trend=69 plunge=40
Maximum Azmuithal Gap=227 Distance to Nearest Station= 56.2 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MOD.BK.D WVOR.US.D TREE.UW.D
########---------
############-------------
###############--------------
#################----------------
##################-----------------
###################------------------
-####################--------------------
#####################------------ -----
### ################------------ P ------
### T ################------------ ------
### ################---------------------
######################---------------------
#######################--------------------#
#######################-------------------##
-######################------------------##
--#####################-----------------###
--####################----------------###
--###################---------------####
----#################------------######
---################----------#######
-----#############------#########
-------######################
-------------############
---------#########
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MOD.BK (D) Y 56.2 278 97 0.020 0.080 MOD.BK.wus.glib
WVOR.US (D) Y 104.9 50 231 0.020 0.080 WVOR.US.wus.glib
TREE.UW (D) Y 144.0 314 133 0.020 0.080 TREE.UW.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/12/23 04:26:11
mtinv Version 2.1_DEVEL OCT2008

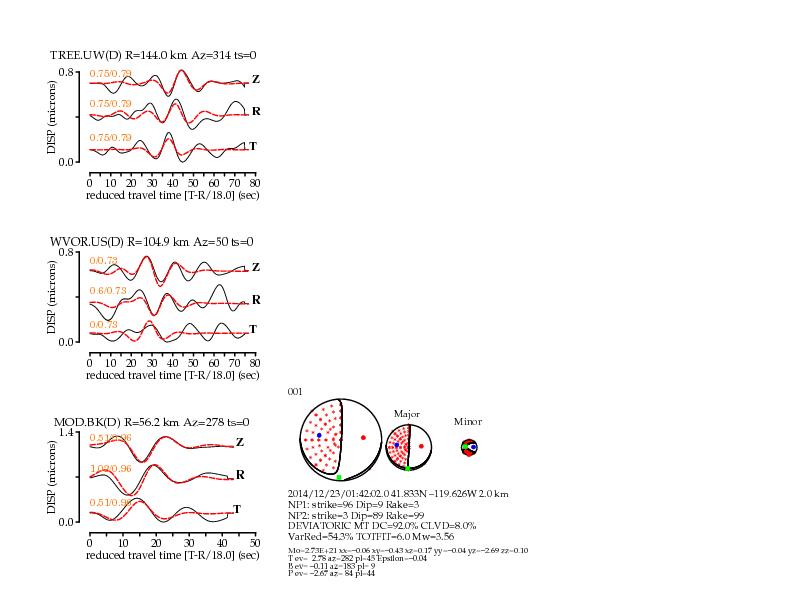

Solution Name: T002.0sec_Z002.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/12/23 (357) 01:42:02.00 41.8330 -119.6264 001
Depth = 2.0 (km)
Mw = 3.56
Mo = 2.73x10^21 (dyne x cm)
Percent Double Couple = 92 %
Percent CLVD = 8 %
no ISO calculated
Epsilon=-0.04
Percent Variance Reduction = 54.32 %
Total Fit = 6.02
Major Double Couple
strike dip rake
Nodal Plane 1: 96 9 3
Nodal Plane 2: 3 89 99
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.10 Mtt= -0.06 Mff= -0.04
Mrt= 0.17 Mrf= 2.69 Mtf= 0.43 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.06 -0.43 0.17
-0.43 -0.04 -2.69
0.17 -2.69 0.10
Eigenvalues:
T-axis eigenvalue= 2.78
N-axis eigenvalue= -0.11
P-axis eigenvalue= -2.67
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 2.78 trend=282 plunge=45
N-axis ev= 0.00 trend=183 plunge=9
P-axis ev=-2.78 trend=84 plunge=44
Maximum Azmuithal Gap=227 Distance to Nearest Station= 56.2 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MOD.BK.D WVOR.US.D TREE.UW.D
##########-------
##############-----------
################-------------
##################---------------
###################----------------
####################-----------------
-#####################-------------------
######################-------------------
#######################--------------------
### ################---------------------
### T ################------------ ------
### ################------------ P ------
######################------------ ------
######################--------------------##
######################--------------------#
-#####################-------------------##
-####################------------------##
-###################-----------------###
--##################----------------###
-################---------------####
--##############-------------####
--############----------#####
----########---##########
-------###########
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MOD.BK (D) Y 56.2 278 97 0.020 0.080 MOD.BK.wus.glib
WVOR.US (D) Y 104.9 50 231 0.020 0.080 WVOR.US.wus.glib
TREE.UW (D) Y 144.0 314 133 0.020 0.080 TREE.UW.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/12/23 04:26:11
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T003.0sec_Z002.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/12/23 (357) 01:42:03.00 41.8330 -119.6264 001
Depth = 2.0 (km)
Mw = 3.51
Mo = 2.32x10^21 (dyne x cm)
Percent Double Couple = 81 %
Percent CLVD = 19 %
no ISO calculated
Epsilon=-0.09
Percent Variance Reduction = 43.71 %
Total Fit = 2.20
Major Double Couple
strike dip rake
Nodal Plane 1: 90 10 -18
Nodal Plane 2: 198 87 -99
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.13 Mtt= 0.05 Mff= 0.08
Mrt= 0.72 Mrf= 2.15 Mtf= 0.47 EXP=21
Moment Tensor Elements: Cartesian Coordinates
0.05 -0.47 0.72
-0.47 0.08 -2.15
0.72 -2.15 -0.13
Eigenvalues:
T-axis eigenvalue= 2.43
N-axis eigenvalue= -0.23
P-axis eigenvalue= -2.20
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 2.43 trend=296 plunge=41
N-axis ev= 0.00 trend=198 plunge=9
P-axis ev=-2.43 trend=98 plunge=47
Maximum Azmuithal Gap=227 Distance to Nearest Station= 56.2 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MOD.BK.D WVOR.US.D TREE.UW.D
###############--
###################------
####################---------
######################-----------
######################-------------
######################---------------
-# ###################-----------------
## T ##################------------------
### #################--------------------
#######################--------------------
######################---------------------
######################---------------------
#####################------------- ------#
#####################------------- P -----##
####################-------------- -----#
-###################---------------------##
-#################---------------------##
-###############---------------------###
--##############-------------------####
-############-------------------####
--##########----------------#####
--#######--------------######
----########-############
--################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MOD.BK (D) Y 56.2 278 97 0.020 0.080 MOD.BK.wus.glib
WVOR.US (D) Y 104.9 50 231 0.020 0.080 WVOR.US.wus.glib
TREE.UW (D) Y 144.0 314 133 0.020 0.080 TREE.UW.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/12/23 04:26:11
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T057.0sec_Z014.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/12/23 (357) 01:41:57.00 41.8330 -119.6264 001
Depth = 14.0 (km)
Mw = 3.19
Mo = 7.65x10^20 (dyne x cm)
Percent Double Couple = 88 %
Percent CLVD = 12 %
no ISO calculated
Epsilon=0.06
Percent Variance Reduction = 11.63 %
Total Fit = 0.91
Major Double Couple
strike dip rake
Nodal Plane 1: 198 46 -129
Nodal Plane 2: 67 56 -57
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -6.05 Mtt= 2.63 Mff= 3.42
Mrt= -3.31 Mrf= 1.38 Mtf= 4.24 EXP=20
Moment Tensor Elements: Cartesian Coordinates
2.63 -4.24 -3.31
-4.24 3.42 -1.38
-3.31 -1.38 -6.05
Eigenvalues:
T-axis eigenvalue= 7.40
N-axis eigenvalue= 0.47
P-axis eigenvalue= -7.87
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 7.40 trend=135 plunge=6
N-axis ev= 0.00 trend=227 plunge=27
P-axis ev=-7.40 trend=33 plunge=63
Maximum Azmuithal Gap=227 Distance to Nearest Station= 56.2 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MOD.BK.D WVOR.US.D TREE.UW.D
################-
#################--------
###############--------------
##############-------------------
#############----------------------
#############------------------------
-#############---------- --------------
############------------ P -------------#
#############------------ ------------###
############---------------------------####
###########---------------------------######
###########--------------------------#######
##########-------------------------#########
##########-----------------------###########
##########--------------------#############
##########-----------------################
#########-------------###################
-#######-----###########################
-------################################
------######################## ###
------####################### T #
----#######################
---######################
-#################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MOD.BK (D) Y 56.2 278 97 0.020 0.080 MOD.BK.wus.glib
WVOR.US (D) Y 104.9 50 231 0.020 0.080 WVOR.US.wus.glib
TREE.UW (D) Y 144.0 314 133 0.020 0.080 TREE.UW.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/12/23 04:26:12
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T058.0sec_Z014.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/12/23 (357) 01:41:58.00 41.8330 -119.6264 001
Depth = 14.0 (km)
Mw = 3.27
Mo = 1.02x10^21 (dyne x cm)
Percent Double Couple = 77 %
Percent CLVD = 23 %
no ISO calculated
Epsilon=0.11
Percent Variance Reduction = 23.94 %
Total Fit = 1.01
Major Double Couple
strike dip rake
Nodal Plane 1: 73 48 -39
Nodal Plane 2: 191 62 -131
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.63 Mtt= 0.26 Mff= 0.37
Mrt= -0.30 Mrf= 0.52 Mtf= 0.61 EXP=21
Moment Tensor Elements: Cartesian Coordinates
0.26 -0.61 -0.30
-0.61 0.37 -0.52
-0.30 -0.52 -0.63
Eigenvalues:
T-axis eigenvalue= 0.95
N-axis eigenvalue= 0.12
P-axis eigenvalue= -1.07
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 0.95 trend=309 plunge=8
N-axis ev= 0.00 trend=213 plunge=36
P-axis ev=-0.95 trend=50 plunge=53
Maximum Azmuithal Gap=227 Distance to Nearest Station= 56.2 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MOD.BK.D WVOR.US.D TREE.UW.D
#############----
###############----------
###############--------------
################-----------------
T ################-------------------
###############---------------------
-################---------- -----------
################----------- P -----------
################------------ -----------#
################-------------------------##
###############-------------------------####
###############------------------------#####
##############------------------------######
##############----------------------########
##############--------------------#########
##############------------------###########
-############--------------##############
--##########---------###################
-------################################
----------##########################
---------########################
--------#####################
------###################
---###############
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MOD.BK (D) Y 56.2 278 97 0.020 0.080 MOD.BK.wus.glib
WVOR.US (D) Y 104.9 50 231 0.020 0.080 WVOR.US.wus.glib
TREE.UW (D) Y 144.0 314 133 0.020 0.080 TREE.UW.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/12/23 04:26:12
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T059.0sec_Z006.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2014/12/23 (357) 01:41:59.00 41.8330 -119.6264 001
Depth = 6.0 (km)
Mw = 3.41
Mo = 1.62x10^21 (dyne x cm)
Percent Double Couple = 89 %
Percent CLVD = 11 %
no ISO calculated
Epsilon=-0.05
Percent Variance Reduction = 28.55 %
Total Fit = 2.39
Major Double Couple
strike dip rake
Nodal Plane 1: 119 11 57
Nodal Plane 2: 332 81 96
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.56 Mtt= -0.31 Mff= -0.25
Mrt= -0.68 Mrf= 1.37 Mtf= 0.25 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.31 -0.25 -0.68
-0.25 -0.25 -1.37
-0.68 -1.37 0.56
Eigenvalues:
T-axis eigenvalue= 1.67
N-axis eigenvalue= -0.09
P-axis eigenvalue= -1.57
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.67 trend=249 plunge=54
N-axis ev= 0.00 trend=151 plunge=6
P-axis ev=-1.67 trend=57 plunge=35
Maximum Azmuithal Gap=227 Distance to Nearest Station= 56.2 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
MOD.BK.D WVOR.US.D TREE.UW.D
-----------------
####---------------------
#######----------------------
###########----------------------
#############----------------------
###############---------------- ---
-#################--------------- P -----
####################------------- -----
-#####################---------------------
-######################--------------------
########################-------------------
#########################------------------
-#########################-----------------
-###### #################----------------
-###### T #################----------------
--##### ##################---------------
--##########################-------------
--##########################----------#
---#########################--------###
--#########################------###
---#######################---####
----#########################
-----####################
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
MOD.BK (D) Y 56.2 278 97 0.020 0.080 MOD.BK.wus.glib
WVOR.US (D) Y 104.9 50 231 0.020 0.080 WVOR.US.wus.glib
TREE.UW (D) Y 144.0 314 133 0.020 0.080 TREE.UW.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2014/12/23 04:26:12
mtinv Version 2.1_DEVEL OCT2008
Event ID: mw
Origin ID: 001
Date:
Filename: plotz.jpg
Event ID: mw
Origin ID: 001
Date:
Filename: results.5.jpg
