Event ID: mw
Origin ID: 001
Date:

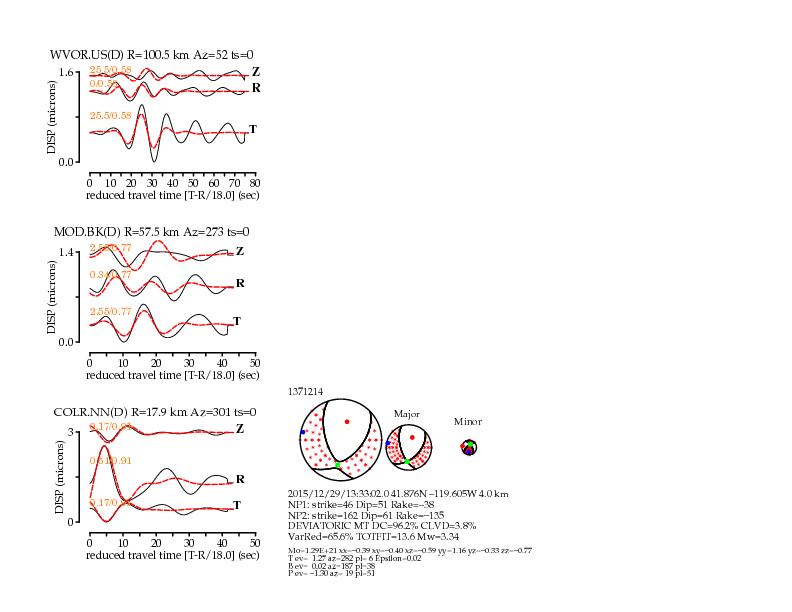

Filename: fits01.jpg
Event ID: mw
Origin ID: 001
Date:

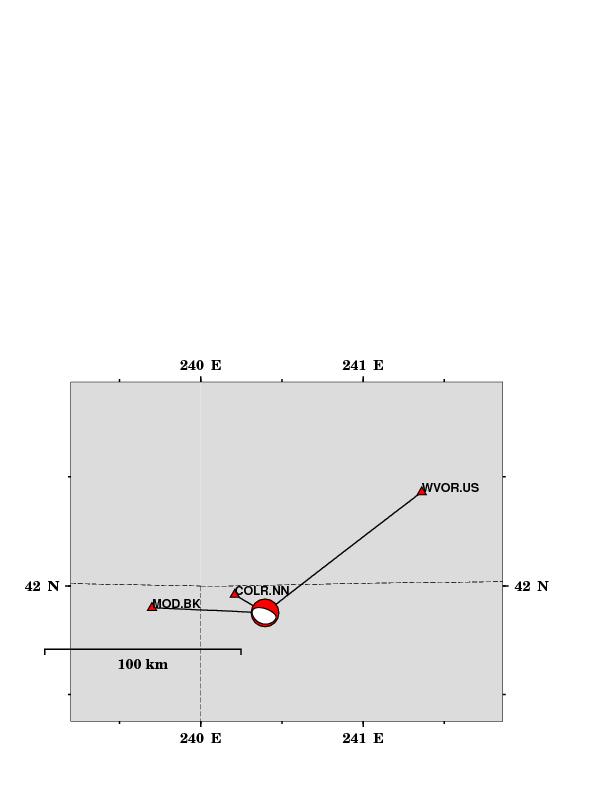

Filename: gmtmap.jpg

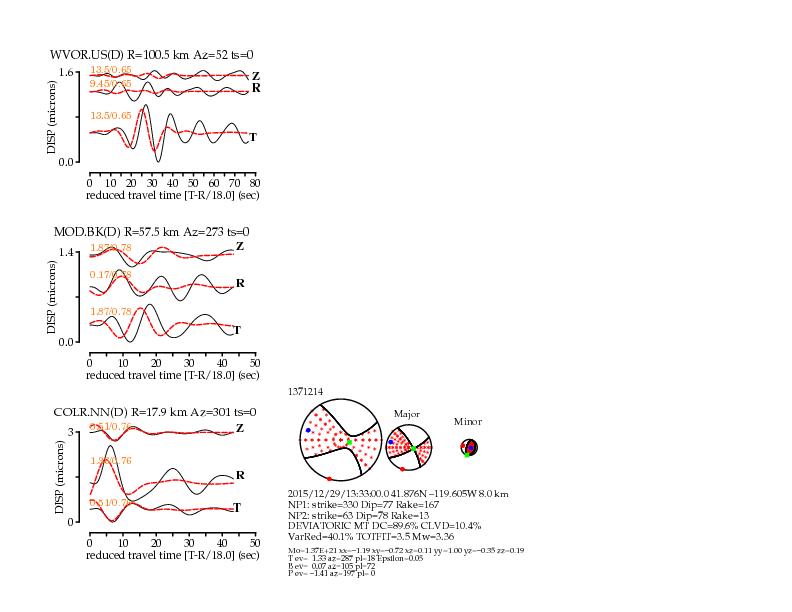

Solution Name: T000.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2015/12/29 (363) 13:33:00.00 41.8763 -119.6054 1371214
Depth = 8.0 (km)
Mw = 3.36
Mo = 1.37x10^21 (dyne x cm)
Percent Double Couple = 90 %
Percent CLVD = 10 %
no ISO calculated
Epsilon=0.05
Percent Variance Reduction = 40.15 %
Total Fit = 3.52
Major Double Couple
strike dip rake
Nodal Plane 1: 330 77 167
Nodal Plane 2: 63 78 13
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.19 Mtt= -1.19 Mff= 1.00
Mrt= 0.11 Mrf= 0.35 Mtf= 0.72 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-1.19 -0.72 0.11
-0.72 1.00 -0.35
0.11 -0.35 0.19
Eigenvalues:
T-axis eigenvalue= 1.33
N-axis eigenvalue= 0.07
P-axis eigenvalue= -1.41
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.33 trend=287 plunge=18
N-axis ev= 0.00 trend=105 plunge=72
P-axis ev=-1.33 trend=197 plunge=0
Maximum Azmuithal Gap=221 Distance to Nearest Station= 17.9 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
COLR.NN.D MOD.BK.D WVOR.US.D
-----------------
###----------------------
#######----------------------
###########----------------------
#############----------------------
################---------------------
-##################--------------------##
###################-----------------####
T #####################-------------#######
######################----------#########
#########################------#############
##########################--################
############################################
############################################
######################-----################
##################----------###############
############----------------#############
######---------------------#############
----------------------------###########
---------------------------#########
--------------------------#######
-------------------------####
--- -----------------##
P ---------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
COLR.NN (D) Y 17.9 301 121 0.040 0.100 COLR.NN.wus.glib
MOD.BK (D) Y 57.5 273 92 0.040 0.100 MOD.BK.wus.glib
WVOR.US (D) Y 100.5 52 233 0.040 0.100 WVOR.US.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/01/12 18:13:30
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T001.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2015/12/29 (363) 13:33:01.00 41.8763 -119.6054 1371214
Depth = 8.0 (km)
Mw = 3.39
Mo = 1.50x10^21 (dyne x cm)
Percent Double Couple = 92 %
Percent CLVD = 8 %
no ISO calculated
Epsilon=0.04
Percent Variance Reduction = 55.50 %
Total Fit = 6.44
Major Double Couple
strike dip rake
Nodal Plane 1: 62 71 1
Nodal Plane 2: 332 89 161
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.07 Mtt= -1.20 Mff= 1.13
Mrt= -0.22 Mrf= 0.43 Mtf= 0.81 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-1.20 -0.81 -0.22
-0.81 1.13 -0.43
-0.22 -0.43 0.07
Eigenvalues:
T-axis eigenvalue= 1.47
N-axis eigenvalue= 0.06
P-axis eigenvalue= -1.53
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.47 trend=286 plunge=14
N-axis ev= 0.00 trend=148 plunge=71
P-axis ev=-1.47 trend=19 plunge=12
Maximum Azmuithal Gap=221 Distance to Nearest Station= 17.9 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
COLR.NN.D MOD.BK.D WVOR.US.D
------------ P --
####------------ ------
######-----------------------
#########------------------------
###########------------------------
##############-----------------------
-###############-----------------------##
##################--------------------###
T ##################------------------######
###################---------------########
#####################------------###########
######################---------#############
#######################-----################
########################-###################
###########################################
######################--###################
#################-------#################
##########--------------################
-------------------------##############
------------------------############
------------------------#########
-----------------------######
----------------------###
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
COLR.NN (D) Y 17.9 301 121 0.040 0.100 COLR.NN.wus.glib
MOD.BK (D) Y 57.5 273 92 0.040 0.100 MOD.BK.wus.glib
WVOR.US (D) Y 100.5 52 233 0.040 0.100 WVOR.US.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/01/12 18:13:30
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T002.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2015/12/29 (363) 13:33:02.00 41.8763 -119.6054 1371214
Depth = 4.0 (km)
Mw = 3.34
Mo = 1.29x10^21 (dyne x cm)
Percent Double Couple = 96 %
Percent CLVD = 4 %
no ISO calculated
Epsilon=0.02
Percent Variance Reduction = 65.56 %
Total Fit = 13.60
Major Double Couple
strike dip rake
Nodal Plane 1: 46 51 -38
Nodal Plane 2: 162 61 -135
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.77 Mtt= -0.39 Mff= 1.16
Mrt= -0.59 Mrf= 0.33 Mtf= 0.40 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.39 -0.40 -0.59
-0.40 1.16 -0.33
-0.59 -0.33 -0.77
Eigenvalues:
T-axis eigenvalue= 1.27
N-axis eigenvalue= 0.02
P-axis eigenvalue= -1.30
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.27 trend=282 plunge=6
N-axis ev= 0.00 trend=187 plunge=38
P-axis ev=-1.27 trend=19 plunge=51
Maximum Azmuithal Gap=221 Distance to Nearest Station= 17.9 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
COLR.NN.D MOD.BK.D WVOR.US.D
##---------------
######-------------------
#######----------------------
########---------- -----------#
#########---------- P -----------###
##########---------- -----------####
-###########------------------------#####
############------------------------#####
############-----------------------#######
T ############-----------------------#######
#############---------------------#########
##############--------------------##########
###############------------------###########
###############----------------#############
################--------------#############
#################-----------###############
#################--------################
#################-----##################
##################-####################
####################################
############----#################
---------------##############
---------------##########
--------------####
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
COLR.NN (D) Y 17.9 301 121 0.040 0.100 COLR.NN.wus.glib
MOD.BK (D) Y 57.5 273 92 0.040 0.100 MOD.BK.wus.glib
WVOR.US (D) Y 100.5 52 233 0.040 0.100 WVOR.US.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/01/12 18:13:30
mtinv Version 2.1_DEVEL OCT2008

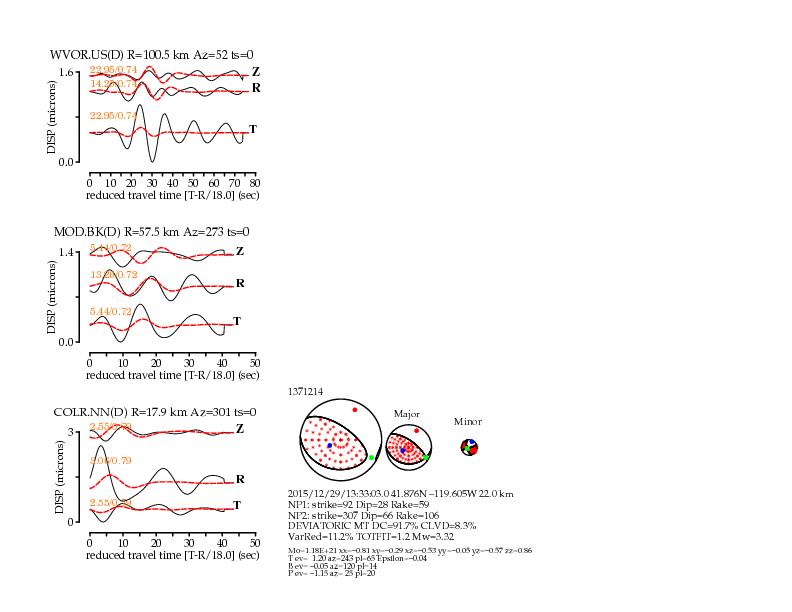

Solution Name: T003.0sec_Z022.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2015/12/29 (363) 13:33:03.00 41.8763 -119.6054 1371214
Depth = 22.0 (km)
Mw = 3.32
Mo = 1.18x10^21 (dyne x cm)
Percent Double Couple = 92 %
Percent CLVD = 8 %
no ISO calculated
Epsilon=-0.04
Percent Variance Reduction = 11.17 %
Total Fit = 1.20
Major Double Couple
strike dip rake
Nodal Plane 1: 92 28 59
Nodal Plane 2: 307 66 106
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.86 Mtt= -0.81 Mff= -0.05
Mrt= -0.53 Mrf= 0.57 Mtf= 0.29 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.81 -0.29 -0.53
-0.29 -0.05 -0.57
-0.53 -0.57 0.86
Eigenvalues:
T-axis eigenvalue= 1.20
N-axis eigenvalue= -0.05
P-axis eigenvalue= -1.15
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.20 trend=243 plunge=65
N-axis ev= 0.00 trend=120 plunge=14
P-axis ev=-1.20 trend=25 plunge=20
Maximum Azmuithal Gap=221 Distance to Nearest Station= 17.9 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
COLR.NN.D MOD.BK.D WVOR.US.D
------------- -
----------------- P -----
------------------- -------
---------------------------------
#####------------------------------
#############------------------------
-#################-----------------------
#####################--------------------
#########################------------------
############################---------------
##############################-------------
###############################------------
#################################---------##
########## ######################-------##
-######### T #######################-----##
--######## ########################---###
---######################################
---#####################################
-----#############################--###
------########################-----#
---------################--------
-----------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
COLR.NN (D) Y 17.9 301 121 0.040 0.100 COLR.NN.wus.glib
MOD.BK (D) Y 57.5 273 92 0.040 0.100 MOD.BK.wus.glib
WVOR.US (D) Y 100.5 52 233 0.040 0.100 WVOR.US.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/01/12 18:13:30
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T057.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2015/12/29 (363) 13:32:57.00 41.8763 -119.6054 1371214
Depth = 4.0 (km)
Mw = 3.25
Mo = 9.30x10^20 (dyne x cm)
Percent Double Couple = 87 %
Percent CLVD = 13 %
no ISO calculated
Epsilon=0.06
Percent Variance Reduction = 6.78 %
Total Fit = 0.49
Major Double Couple
strike dip rake
Nodal Plane 1: 104 23 -94
Nodal Plane 2: 288 67 -88
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -6.97 Mtt= 5.94 Mff= 1.03
Mrt= 6.07 Mrf= -2.19 Mtf= -1.51 EXP=20
Moment Tensor Elements: Cartesian Coordinates
5.94 1.51 6.07
1.51 1.03 2.19
6.07 2.19 -6.97
Eigenvalues:
T-axis eigenvalue= 8.97
N-axis eigenvalue= 0.61
P-axis eigenvalue= -9.59
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 8.97 trend=17 plunge=22
N-axis ev= 0.00 trend=108 plunge=2
P-axis ev=-8.97 trend=202 plunge=68
Maximum Azmuithal Gap=221 Distance to Nearest Station= 17.9 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
COLR.NN.D MOD.BK.D WVOR.US.D
############ ###
################ T ######
################## ########
#################################
####################################
######################################
-########################################
#########################################
-#----------------#########################
#-----------------------###################
#----------------------------###############
#-------------------------------############
##---------------------------------#########
###----------------------------------#######
###------------------------------------####
####------------ ----------------------##
#####---------- P ---------------------##
#####--------- -------------------####
########--------------------------#####
########----------------------######
############------------#########
#############################
#########################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
COLR.NN (D) Y 17.9 301 121 0.040 0.100 COLR.NN.wus.glib
MOD.BK (D) Y 57.5 273 92 0.040 0.100 MOD.BK.wus.glib
WVOR.US (D) Y 100.5 52 233 0.040 0.100 WVOR.US.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/01/12 18:13:31
mtinv Version 2.1_DEVEL OCT2008

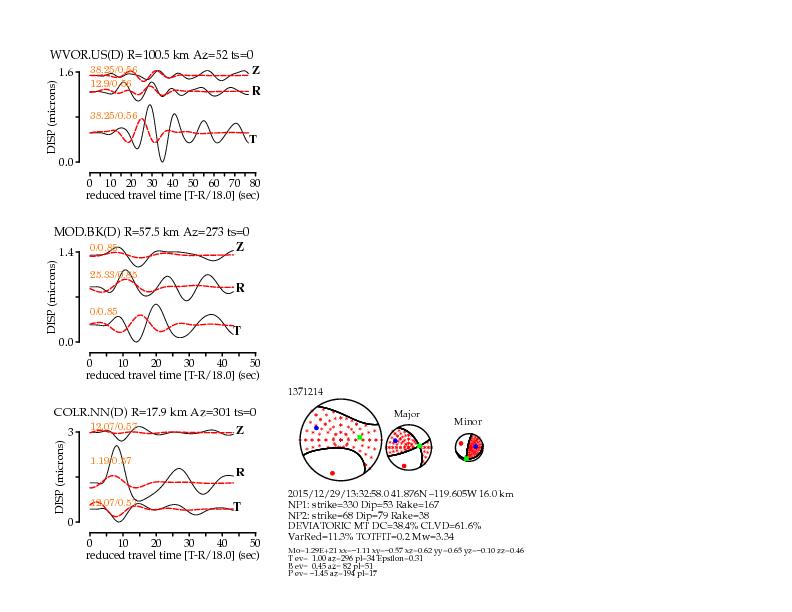

Solution Name: T058.0sec_Z016.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2015/12/29 (363) 13:32:58.00 41.8763 -119.6054 1371214
Depth = 16.0 (km)
Mw = 3.34
Mo = 1.29x10^21 (dyne x cm)
Percent Double Couple = 38 %
Percent CLVD = 62 %
no ISO calculated
Epsilon=0.31
Percent Variance Reduction = 11.26 %
Total Fit = 0.18
Major Double Couple
strike dip rake
Nodal Plane 1: 330 53 167
Nodal Plane 2: 68 79 38
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.46 Mtt= -1.11 Mff= 0.65
Mrt= 0.62 Mrf= 0.10 Mtf= 0.57 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-1.11 -0.57 0.62
-0.57 0.65 -0.10
0.62 -0.10 0.46
Eigenvalues:
T-axis eigenvalue= 1.00
N-axis eigenvalue= 0.45
P-axis eigenvalue= -1.45
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.00 trend=296 plunge=34
N-axis ev= 0.00 trend=82 plunge=51
P-axis ev=-1.00 trend=194 plunge=17
Maximum Azmuithal Gap=221 Distance to Nearest Station= 17.9 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
COLR.NN.D MOD.BK.D WVOR.US.D
-----------------
######-------------------
############-----------------
#################----------------
####################---------------
#######################--------------
-# #####################---------------
## T #######################------------#
### ########################--------#####
###############################-----#######
############################################
############################################
#############################---############
#########################--------###########
####################-------------##########
###############------------------##########
#######--------------------------########
--------------------------------########
--------------------------------#######
-----------------------------#######
----------------------------#####
-------------------------####
----- ---------------##
- P -------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
COLR.NN (D) Y 17.9 301 121 0.040 0.100 COLR.NN.wus.glib
MOD.BK (D) Y 57.5 273 92 0.040 0.100 MOD.BK.wus.glib
WVOR.US (D) Y 100.5 52 233 0.040 0.100 WVOR.US.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/01/12 18:13:30
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T059.0sec_Z006.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2015/12/29 (363) 13:32:59.00 41.8763 -119.6054 1371214
Depth = 6.0 (km)
Mw = 3.29
Mo = 1.07x10^21 (dyne x cm)
Percent Double Couple = 97 %
Percent CLVD = 3 %
no ISO calculated
Epsilon=0.01
Percent Variance Reduction = 20.27 %
Total Fit = 5.47
Major Double Couple
strike dip rake
Nodal Plane 1: 347 45 -131
Nodal Plane 2: 218 57 -57
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.82 Mtt= -0.17 Mff= 0.98
Mrt= 0.49 Mrf= 0.10 Mtf= 0.26 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.17 -0.26 0.49
-0.26 0.98 -0.10
0.49 -0.10 -0.82
Eigenvalues:
T-axis eigenvalue= 1.06
N-axis eigenvalue= 0.01
P-axis eigenvalue= -1.08
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.06 trend=285 plunge=7
N-axis ev= 0.00 trend=18 plunge=28
P-axis ev=-1.06 trend=182 plunge=62
Maximum Azmuithal Gap=221 Distance to Nearest Station= 17.9 (km)
Number of Stations (D=Displacement/V=Velocity) Used=3 (defining only)
COLR.NN.D MOD.BK.D WVOR.US.D
#######----------
##############-----------
###################---#######
#################################
#####################--#############
####################-----#############
-##################---------#############
#################------------############
T ################--------------############
##############-----------------###########
##############------------------############
#############--------------------###########
############---------------------###########
###########----------------------###########
##########-----------------------##########
#########------------------------##########
########-------- -------------#########
#######-------- P ------------##########
######--------- ------------#########
####-----------------------#########
####---------------------########
##--------------------#######
------------------#######
-------------#####
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
COLR.NN (D) Y 17.9 301 121 0.040 0.100 COLR.NN.wus.glib
MOD.BK (D) Y 57.5 273 92 0.040 0.100 MOD.BK.wus.glib
WVOR.US (D) Y 100.5 52 233 0.040 0.100 WVOR.US.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/01/12 18:13:30
mtinv Version 2.1_DEVEL OCT2008
Event ID: mw
Origin ID: 001
Date:

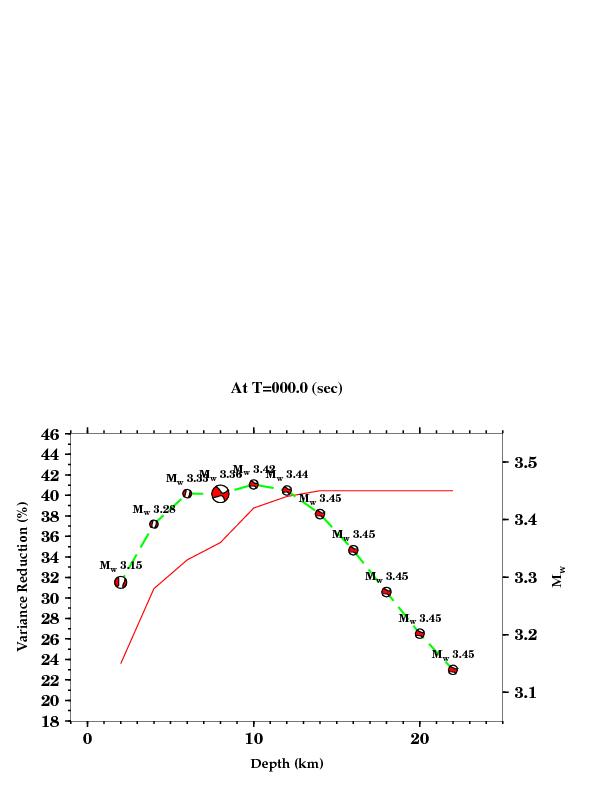

Filename: plotz.jpg
Event ID: mw
Origin ID: 001
Date:

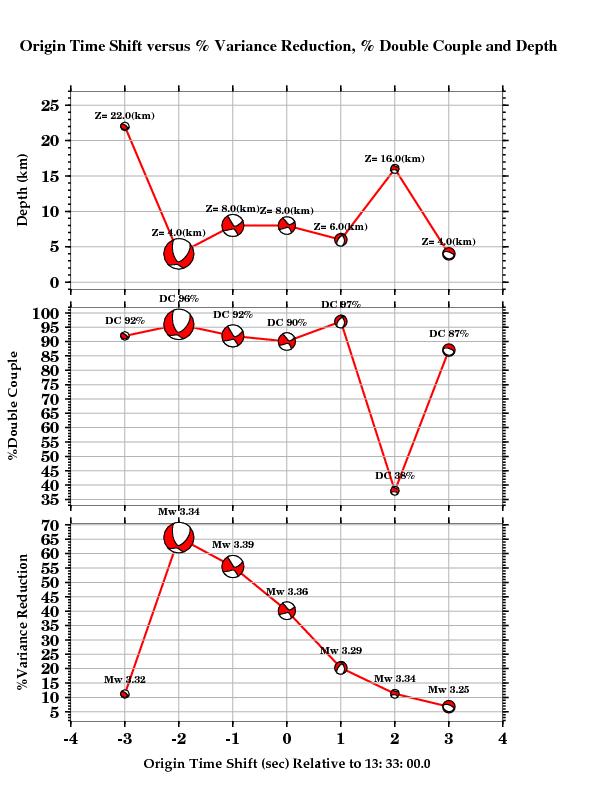

Filename: results.5.jpg
