Event ID: mw
Origin ID: 001
Date:

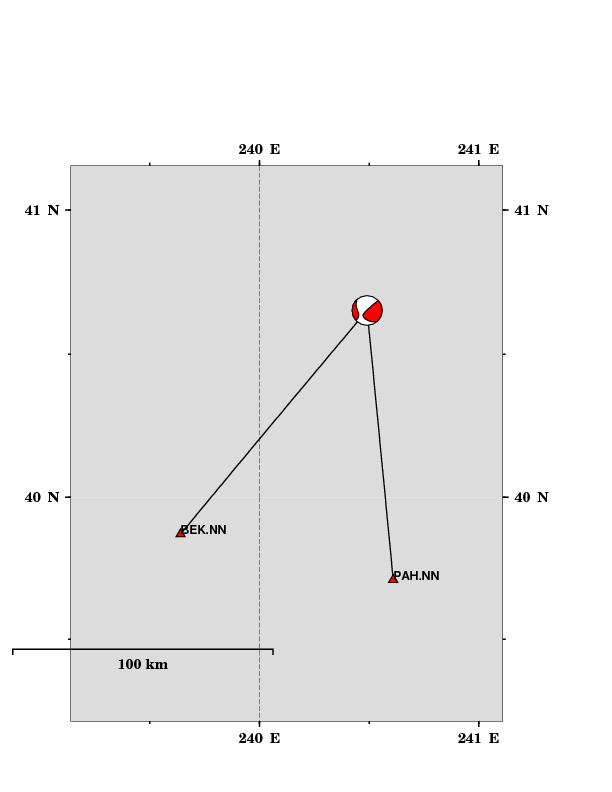

Filename: gmtmap.jpg
Solution Name: T042.0sec_Z022.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2016/05/05 (126) 23:11:42.00 40.6519 -119.5093 1421636
Depth = 22.0 (km)
Mw = 3.46
Mo = 1.93x10^21 (dyne x cm)
Percent Double Couple = 92 %
Percent CLVD = 8 %
no ISO calculated
Epsilon=-0.04
Percent Variance Reduction = 3.76 %
Total Fit = 0.43
Major Double Couple
strike dip rake
Nodal Plane 1: 137 45 178
Nodal Plane 2: 229 88 45
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.06 Mtt= -1.39 Mff= 1.33
Mrt= -0.95 Mrf= -0.97 Mtf= 0.16 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-1.39 -0.16 -0.95
-0.16 1.33 0.97
-0.95 0.97 0.06
Eigenvalues:
T-axis eigenvalue= 1.96
N-axis eigenvalue= -0.08
P-axis eigenvalue= -1.89
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.96 trend=103 plunge=31
N-axis ev= 0.00 trend=230 plunge=45
P-axis ev=-1.96 trend=353 plunge=28
Maximum Azmuithal Gap=314 Distance to Nearest Station=105.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
PAH.NN.D BEK.NN.D
--- -----------
------- P ---------------
--------- -----------------
##-------------------------------
###-----------------------------####
###---------------------------########
-####-------------------------###########
#####-----------------------#############
######---------------------################
#######------------------##################
#######----------------#####################
########-------------#######################
#########---------##########################
##########-------#################### ####
###########----###################### T ###
##################################### ###
#########################################
#########---############################
#######-------#########################
####----------######################
-----------------################
---------------------######--
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
PAH.NN (D) Y 105.1 174 355 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 112.9 220 39 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/05/06 00:39:51
mtinv Version 2.1_DEVEL OCT2008

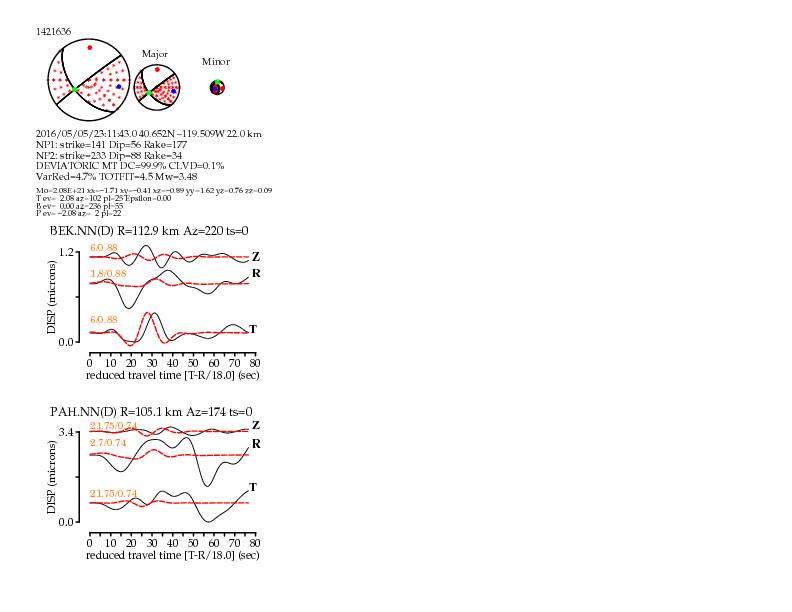

Solution Name: T043.0sec_Z022.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2016/05/05 (126) 23:11:43.00 40.6519 -119.5093 1421636
Depth = 22.0 (km)
Mw = 3.48
Mo = 2.08x10^21 (dyne x cm)
Percent Double Couple = 100 %
Percent CLVD = 0 %
no ISO calculated
Epsilon=0.00
Percent Variance Reduction = 4.74 %
Total Fit = 4.51
Major Double Couple
strike dip rake
Nodal Plane 1: 141 56 177
Nodal Plane 2: 233 88 34
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.09 Mtt= -1.71 Mff= 1.62
Mrt= -0.89 Mrf= -0.76 Mtf= 0.41 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-1.71 -0.41 -0.89
-0.41 1.62 0.76
-0.89 0.76 0.09
Eigenvalues:
T-axis eigenvalue= 2.08
N-axis eigenvalue= 0.00
P-axis eigenvalue= -2.08
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 2.08 trend=102 plunge=25
N-axis ev= 0.00 trend=236 plunge=55
P-axis ev=-2.08 trend=2 plunge=22
Maximum Azmuithal Gap=314 Distance to Nearest Station=105.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
PAH.NN.D BEK.NN.D
------ P --------
---------- ------------
##---------------------------
###------------------------------
####------------------------------##
#####---------------------------######
-######-------------------------#########
#######----------------------############
#########-------------------###############
##########---------------##################
##########-------------#####################
###########---------########################
############------##########################
#############---##################### ####
##################################### T ###
##################################### ###
###########---###########################
########-------#########################
#####------------######################
#-----------------##################
--------------------#############
-----------------------######
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
PAH.NN (D) Y 105.1 174 355 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 112.9 220 39 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/05/06 00:39:51
mtinv Version 2.1_DEVEL OCT2008

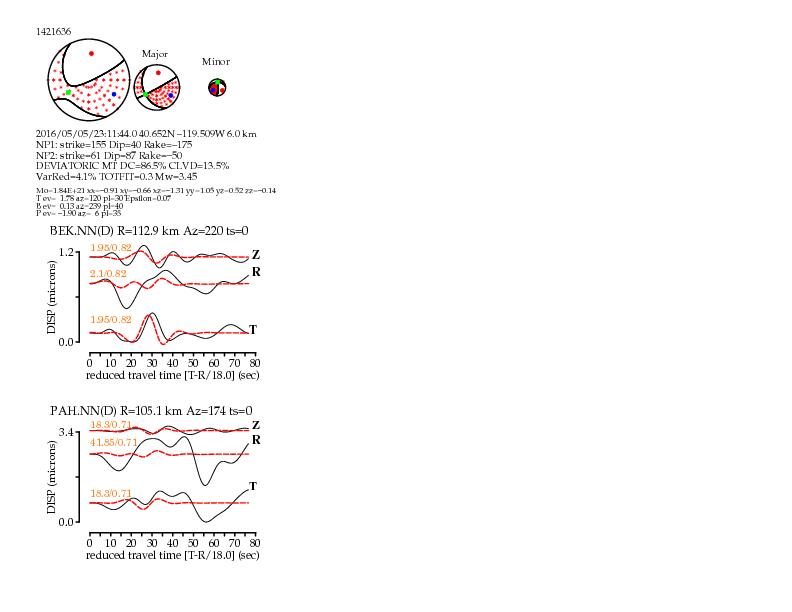

Solution Name: T044.0sec_Z006.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2016/05/05 (126) 23:11:44.00 40.6519 -119.5093 1421636
Depth = 6.0 (km)
Mw = 3.45
Mo = 1.84x10^21 (dyne x cm)
Percent Double Couple = 86 %
Percent CLVD = 14 %
no ISO calculated
Epsilon=0.07
Percent Variance Reduction = 4.10 %
Total Fit = 0.28
Major Double Couple
strike dip rake
Nodal Plane 1: 155 40 -175
Nodal Plane 2: 61 87 -50
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.14 Mtt= -0.91 Mff= 1.05
Mrt= -1.31 Mrf= -0.52 Mtf= 0.66 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.91 -0.66 -1.31
-0.66 1.05 0.52
-1.31 0.52 -0.14
Eigenvalues:
T-axis eigenvalue= 1.78
N-axis eigenvalue= 0.13
P-axis eigenvalue= -1.90
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.78 trend=120 plunge=30
N-axis ev= 0.00 trend=239 plunge=40
P-axis ev=-1.78 trend=6 plunge=35
Maximum Azmuithal Gap=314 Distance to Nearest Station=105.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
PAH.NN.D BEK.NN.D
-----------------
####------ ------------
####-------- P --------------
#####--------- ----------------
######-----------------------------
######-------------------------------
-######-------------------------------###
#######----------------------------######
########-------------------------##########
########----------------------#############
########------------------##################
########---------------#####################
#########-----------########################
##########------############################
##########---##############################
###########################################
########--######################## ####
####------####################### T ####
-----------###################### ###
-----------#########################
------------#####################
------------#################
-------------############
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
PAH.NN (D) Y 105.1 174 355 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 112.9 220 39 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/05/06 00:39:51
mtinv Version 2.1_DEVEL OCT2008

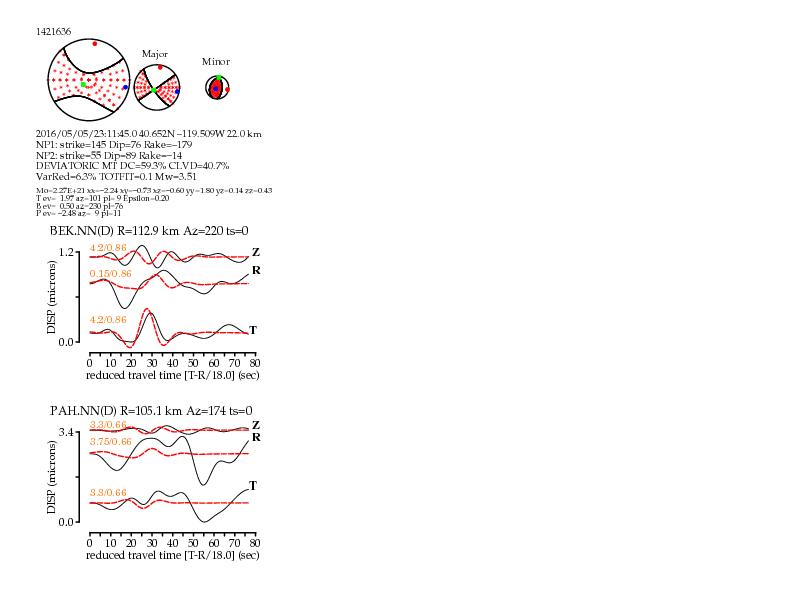

Solution Name: T045.0sec_Z022.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2016/05/05 (126) 23:11:45.00 40.6519 -119.5093 1421636
Depth = 22.0 (km)
Mw = 3.51
Mo = 2.27x10^21 (dyne x cm)
Percent Double Couple = 59 %
Percent CLVD = 41 %
no ISO calculated
Epsilon=0.20
Percent Variance Reduction = 6.26 %
Total Fit = 0.15
Major Double Couple
strike dip rake
Nodal Plane 1: 145 76 -179
Nodal Plane 2: 55 89 -14
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.43 Mtt= -2.24 Mff= 1.80
Mrt= -0.60 Mrf= -0.14 Mtf= 0.73 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-2.24 -0.73 -0.60
-0.73 1.80 0.14
-0.60 0.14 0.43
Eigenvalues:
T-axis eigenvalue= 1.97
N-axis eigenvalue= 0.50
P-axis eigenvalue= -2.48
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.97 trend=101 plunge=9
N-axis ev= 0.00 trend=230 plunge=76
P-axis ev=-1.97 trend=9 plunge=11
Maximum Azmuithal Gap=314 Distance to Nearest Station=105.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
PAH.NN.D BEK.NN.D
-------- P ------
------------ ----------
###--------------------------
#####----------------------------
#######----------------------------
#########-------------------------####
-##########-----------------------#######
############-------------------##########
##############---------------##############
###############------------################
################--------####################
#################-----######################
############################################
####################################### ##
#################--#################### T #
##############------################### #
###########----------####################
#######--------------###################
#####------------------################
-----------------------#############
------------------------#########
------------------------#####
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
PAH.NN (D) Y 105.1 174 355 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 112.9 220 39 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/05/06 00:39:51
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T046.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2016/05/05 (126) 23:11:46.00 40.6519 -119.5093 1421636
Depth = 8.0 (km)
Mw = 3.52
Mo = 2.33x10^21 (dyne x cm)
Percent Double Couple = 80 %
Percent CLVD = 20 %
no ISO calculated
Epsilon=0.10
Percent Variance Reduction = 5.84 %
Total Fit = 0.27
Major Double Couple
strike dip rake
Nodal Plane 1: 111 37 101
Nodal Plane 2: 278 54 82
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 2.07 Mtt= -2.18 Mff= 0.11
Mrt= -0.70 Mrf= -0.05 Mtf= 0.64 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-2.18 -0.64 -0.70
-0.64 0.11 0.05
-0.70 0.05 2.07
Eigenvalues:
T-axis eigenvalue= 2.20
N-axis eigenvalue= 0.25
P-axis eigenvalue= -2.45
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 2.20 trend=156 plunge=79
N-axis ev= 0.00 trend=283 plunge=6
P-axis ev=-2.20 trend=14 plunge=8
Maximum Azmuithal Gap=314 Distance to Nearest Station=105.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
PAH.NN.D BEK.NN.D
---------- P ----
-------------- --------
-----------------------------
---------------------------------
-----------------------------------
-------------------------------------
----------##############-----------------
#----#########################-----------
##-################################--------
#####################################------
#-######################################---
--#######################################--
---########################################
----############### #####################
-----############## T #####################
------############# #####################
-------##################################
--------###############################
-----------##########################--
------------###################----
-------------------###-----------
-----------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
PAH.NN (D) Y 105.1 174 355 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 112.9 220 39 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/05/06 00:39:51
mtinv Version 2.1_DEVEL OCT2008

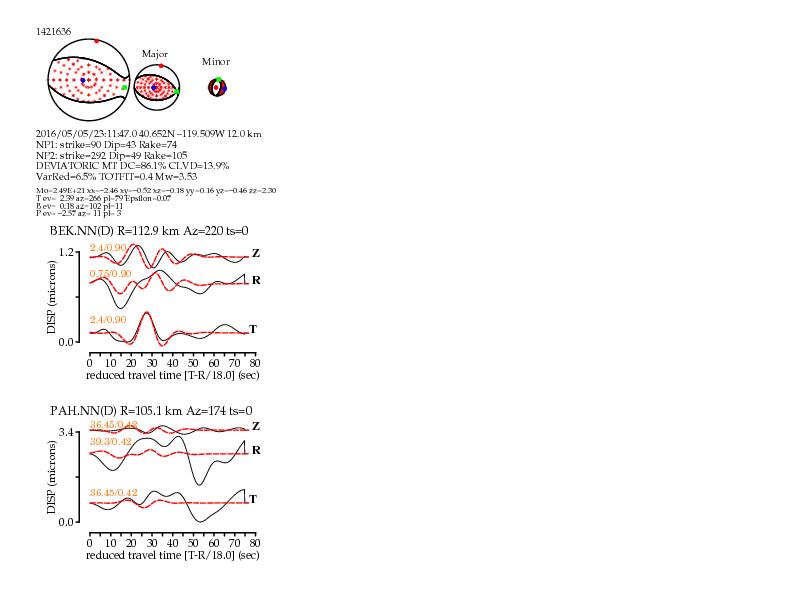

Solution Name: T047.0sec_Z012.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2016/05/05 (126) 23:11:47.00 40.6519 -119.5093 1421636
Depth = 12.0 (km)
Mw = 3.53
Mo = 2.49x10^21 (dyne x cm)
Percent Double Couple = 86 %
Percent CLVD = 14 %
no ISO calculated
Epsilon=0.07
Percent Variance Reduction = 6.46 %
Total Fit = 0.43
Major Double Couple
strike dip rake
Nodal Plane 1: 90 43 74
Nodal Plane 2: 292 49 105
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 2.30 Mtt= -2.46 Mff= 0.16
Mrt= -0.18 Mrf= 0.46 Mtf= 0.52 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-2.46 -0.52 -0.18
-0.52 0.16 -0.46
-0.18 -0.46 2.30
Eigenvalues:
T-axis eigenvalue= 2.39
N-axis eigenvalue= 0.18
P-axis eigenvalue= -2.57
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 2.39 trend=266 plunge=79
N-axis ev= 0.00 trend=102 plunge=11
P-axis ev=-2.39 trend=11 plunge=3
Maximum Azmuithal Gap=314 Distance to Nearest Station=105.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
PAH.NN.D BEK.NN.D
---------- P ----
-------------- --------
-----------------------------
---------------------------------
-----------------------------------
----################-----------------
--#########################--------------
##############################-----------
##################################---------
####################################-------
#####################################------
############## ######################----
############## T #######################--##
-############# ###########################
--#########################################
----###################################--##
-----################################---#
-------##########################------
-----------#################-----------
-----------------------------------
---------------------------------
-----------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
PAH.NN (D) Y 105.1 174 355 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 112.9 220 39 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/05/06 00:39:51
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T048.0sec_Z016.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2016/05/05 (126) 23:11:48.00 40.6519 -119.5093 1421636
Depth = 16.0 (km)
Mw = 3.49
Mo = 2.11x10^21 (dyne x cm)
Percent Double Couple = 99 %
Percent CLVD = 1 %
no ISO calculated
Epsilon=-0.01
Percent Variance Reduction = 5.07 %
Total Fit = 2.28
Major Double Couple
strike dip rake
Nodal Plane 1: 302 50 126
Nodal Plane 2: 74 52 55
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 1.68 Mtt= -2.05 Mff= 0.36
Mrt= 0.19 Mrf= 0.84 Mtf= 0.36 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-2.05 -0.36 0.19
-0.36 0.36 -0.84
0.19 -0.84 1.68
Eigenvalues:
T-axis eigenvalue= 2.11
N-axis eigenvalue= -0.01
P-axis eigenvalue= -2.10
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 2.11 trend=280 plunge=63
N-axis ev= 0.00 trend=97 plunge=27
P-axis ev=-2.11 trend=188 plunge=1
Maximum Azmuithal Gap=314 Distance to Nearest Station=105.1 (km)
Number of Stations (D=Displacement/V=Velocity) Used=2 (defining only)
PAH.NN.D BEK.NN.D
-----------------
-------------------------
-----------------------------
---------------------------------
--#############--------------------
#####################----------------
-#########################---------------
#############################------------
################################----------#
##################################-------##
######## ########################-----####
######## T #########################---#####
######## #################################
############################################
####################################--#####
##################################-----####
-#############################--------###
----####################-------------###
------------###----------------------##
-----------------------------------
---------------------------------
-----------------------------
------- --------------
--- P -----------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
PAH.NN (D) Y 105.1 174 355 0.020 0.080 PAH.NN.wus.glib
BEK.NN (D) Y 112.9 220 39 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2016/05/06 00:39:51
mtinv Version 2.1_DEVEL OCT2008
Event ID: mw
Origin ID: 001
Date:

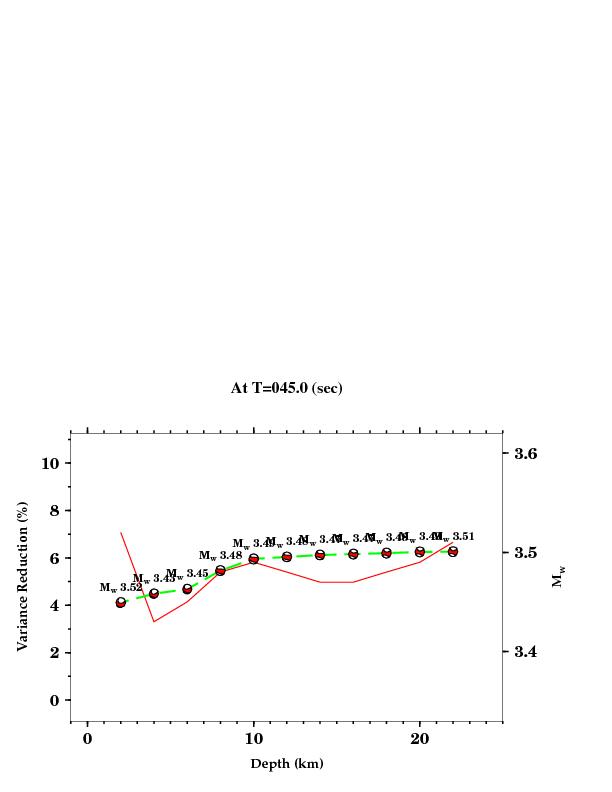

Filename: plotz.jpg
Event ID: mw
Origin ID: 001
Date:

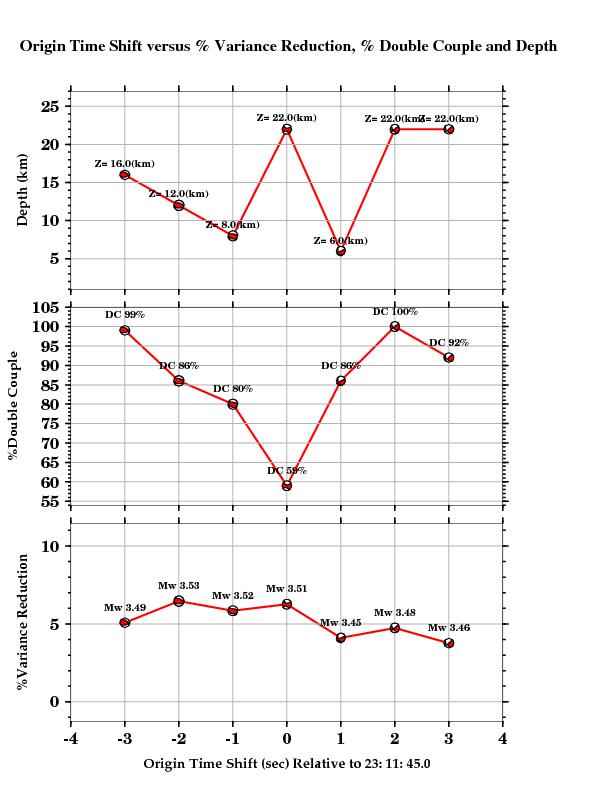

Filename: results.5.jpg
