Event ID: mw
Origin ID: 001
Date:

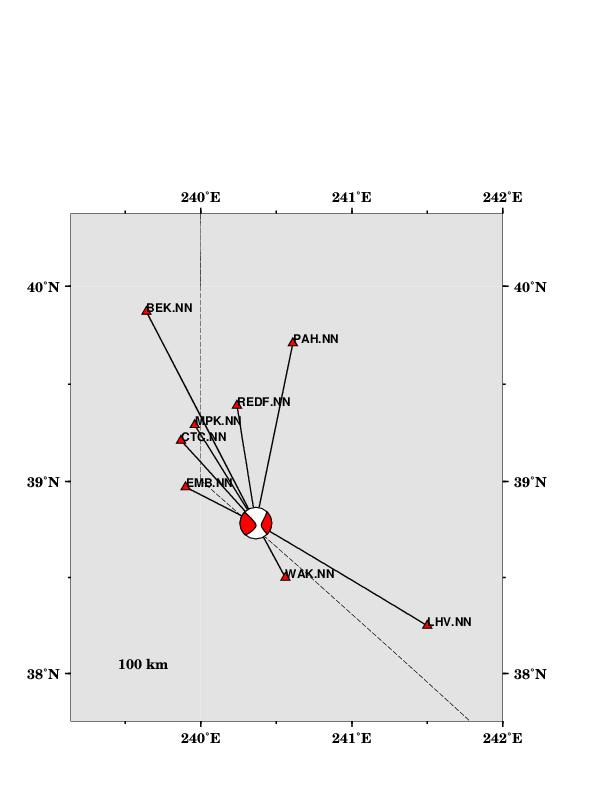

Filename: gmtmap.jpg
Solution Name: T022.0sec_Z022.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2017/06/06 (157) 22:45:22.00 38.7832 -119.6348 1576638
Depth = 22.0 (km)
Mw = 3.66
Mo = 3.87x10^21 (dyne x cm)
Percent Double Couple = 88 %
Percent CLVD = 12 %
no ISO calculated
Epsilon=-0.06
Percent Variance Reduction = 10.37 %
Total Fit = 0.81
Major Double Couple
strike dip rake
Nodal Plane 1: 44 72 1
Nodal Plane 2: 314 89 162
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.15 Mtt= -3.59 Mff= 3.74
Mrt= -0.75 Mrf= 0.97 Mtf= -0.17 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-3.59 0.17 -0.75
0.17 3.74 -0.97
-0.75 -0.97 -0.15
Eigenvalues:
T-axis eigenvalue= 3.99
N-axis eigenvalue= -0.24
P-axis eigenvalue= -3.75
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 3.99 trend=267 plunge=14
N-axis ev= 0.00 trend=130 plunge=72
P-axis ev=-3.99 trend=0 plunge=12
Maximum Azmuithal Gap=146 Distance to Nearest Station= 35.7 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
WAK.NN.D EMB.NN.D CTC.NN.D MPK.NN.D
REDF.NN.D PAH.NN.D LHV.NN.D BEK.NN.D
------ P --------
---------- ------------
-----------------------------
##-----------------------------##
####----------------------------####
########------------------------######
-###########---------------------########
##############------------------#########
#################---------------###########
###################------------############
#####################--------###############
#####################------################
T #######################--##################
###########################################
#########################-#################
#######################----################
####################--------#############
#################------------###########
###############----------------########
##########---------------------#####
#####---------------------------#
-----------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
WAK.NN (D) Y 35.7 152 332 0.020 0.080 WAK.NN.wus.glib
EMB.NN (D) Y 45.3 297 117 0.020 0.080 EMB.NN.wus.glib
CTC.NN (D) Y 63.9 318 138 0.020 0.080 CTC.NN.wus.glib
MPK.NN (D) Y 66.3 328 148 0.020 0.080 MPK.NN.wus.glib
REDF.NN (D) Y 68.3 351 171 0.020 0.080 REDF.NN.wus.glib
PAH.NN (D) Y 105.1 11 192 0.020 0.080 PAH.NN.wus.glib
LHV.NN (D) Y 115.1 121 301 0.020 0.080 LHV.NN.wus.glib
BEK.NN (D) Y 135.9 333 152 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2017/06/07 00:20:36
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T023.0sec_Z022.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2017/06/06 (157) 22:45:23.00 38.7832 -119.6348 1576638
Depth = 22.0 (km)
Mw = 3.80
Mo = 6.15x10^21 (dyne x cm)
Percent Double Couple = 84 %
Percent CLVD = 16 %
no ISO calculated
Epsilon=-0.08
Percent Variance Reduction = 26.42 %
Total Fit = 1.55
Major Double Couple
strike dip rake
Nodal Plane 1: 43 71 -2
Nodal Plane 2: 133 88 -161
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.58 Mtt= -5.51 Mff= 6.08
Mrt= -1.39 Mrf= 1.35 Mtf= -0.45 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-5.51 0.45 -1.39
0.45 6.08 -1.35
-1.39 -1.35 -0.58
Eigenvalues:
T-axis eigenvalue= 6.39
N-axis eigenvalue= -0.51
P-axis eigenvalue= -5.87
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 6.39 trend=266 plunge=12
N-axis ev= 0.00 trend=139 plunge=71
P-axis ev=-6.39 trend=360 plunge=15
Maximum Azmuithal Gap=146 Distance to Nearest Station= 35.7 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
WAK.NN.D EMB.NN.D CTC.NN.D MPK.NN.D
REDF.NN.D PAH.NN.D LHV.NN.D BEK.NN.D
---- P ----------
-------- --------------
-----------------------------
##-----------------------------##
####---------------------------#####
#######-------------------------######
-##########----------------------########
#############-------------------#########
###############-----------------###########
#################--------------############
###################----------###############
####################-------################
T ######################---##################
###########################################
###########################################
########################--#################
#####################------##############
##################----------############
###############---------------#########
###########--------------------#####
######--------------------------#
-----------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
WAK.NN (D) Y 35.7 152 332 0.020 0.080 WAK.NN.wus.glib
EMB.NN (D) Y 45.3 297 117 0.020 0.080 EMB.NN.wus.glib
CTC.NN (D) Y 63.9 318 138 0.020 0.080 CTC.NN.wus.glib
MPK.NN (D) Y 66.3 328 148 0.020 0.080 MPK.NN.wus.glib
REDF.NN (D) Y 68.3 351 171 0.020 0.080 REDF.NN.wus.glib
PAH.NN (D) Y 105.1 11 192 0.020 0.080 PAH.NN.wus.glib
LHV.NN (D) Y 115.1 121 301 0.020 0.080 LHV.NN.wus.glib
BEK.NN (D) Y 135.9 333 152 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2017/06/07 00:20:36
mtinv Version 2.1_DEVEL OCT2008

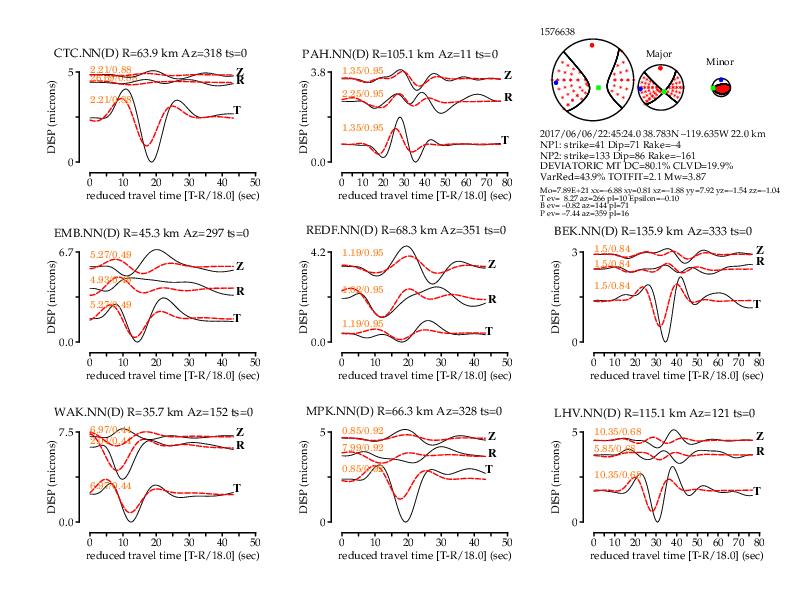

Solution Name: T024.0sec_Z022.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2017/06/06 (157) 22:45:24.00 38.7832 -119.6348 1576638
Depth = 22.0 (km)
Mw = 3.87
Mo = 7.89x10^21 (dyne x cm)
Percent Double Couple = 80 %
Percent CLVD = 20 %
no ISO calculated
Epsilon=-0.10
Percent Variance Reduction = 43.94 %
Total Fit = 2.11
Major Double Couple
strike dip rake
Nodal Plane 1: 41 71 -4
Nodal Plane 2: 133 86 -161
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.04 Mtt= -6.88 Mff= 7.92
Mrt= -1.88 Mrf= 1.54 Mtf= -0.81 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-6.88 0.81 -1.88
0.81 7.92 -1.54
-1.88 -1.54 -1.04
Eigenvalues:
T-axis eigenvalue= 8.27
N-axis eigenvalue= -0.82
P-axis eigenvalue= -7.44
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 8.27 trend=266 plunge=10
N-axis ev= 0.00 trend=144 plunge=71
P-axis ev=-8.27 trend=359 plunge=16
Maximum Azmuithal Gap=146 Distance to Nearest Station= 35.7 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
WAK.NN.D EMB.NN.D CTC.NN.D MPK.NN.D
REDF.NN.D PAH.NN.D LHV.NN.D BEK.NN.D
---- P ----------
-------- --------------
-----------------------------
#-----------------------------###
####---------------------------#####
######-------------------------#######
-#########----------------------#########
############-------------------##########
###############----------------############
#################-------------#############
###################----------###############
####################-------################
T #####################----##################
#######################-###################
###########################################
########################--#################
#####################------##############
##################----------############
################--------------#########
###########-------------------######
#######-------------------------#
-----------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
WAK.NN (D) Y 35.7 152 332 0.020 0.080 WAK.NN.wus.glib
EMB.NN (D) Y 45.3 297 117 0.020 0.080 EMB.NN.wus.glib
CTC.NN (D) Y 63.9 318 138 0.020 0.080 CTC.NN.wus.glib
MPK.NN (D) Y 66.3 328 148 0.020 0.080 MPK.NN.wus.glib
REDF.NN (D) Y 68.3 351 171 0.020 0.080 REDF.NN.wus.glib
PAH.NN (D) Y 105.1 11 192 0.020 0.080 PAH.NN.wus.glib
LHV.NN (D) Y 115.1 121 301 0.020 0.080 LHV.NN.wus.glib
BEK.NN (D) Y 135.9 333 152 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2017/06/07 00:20:36
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T025.0sec_Z010.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2017/06/06 (157) 22:45:25.00 38.7832 -119.6348 1576638
Depth = 10.0 (km)
Mw = 3.84
Mo = 7.10x10^21 (dyne x cm)
Percent Double Couple = 81 %
Percent CLVD = 19 %
no ISO calculated
Epsilon=-0.10
Percent Variance Reduction = 61.75 %
Total Fit = 3.07
Major Double Couple
strike dip rake
Nodal Plane 1: 40 68 -7
Nodal Plane 2: 133 84 -157
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.12 Mtt= -5.94 Mff= 7.05
Mrt= -2.09 Mrf= 1.51 Mtf= -0.82 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-5.94 0.82 -2.09
0.82 7.05 -1.51
-2.09 -1.51 -1.12
Eigenvalues:
T-axis eigenvalue= 7.43
N-axis eigenvalue= -0.71
P-axis eigenvalue= -6.72
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 7.43 trend=265 plunge=11
N-axis ev= 0.00 trend=147 plunge=67
P-axis ev=-7.43 trend=359 plunge=20
Maximum Azmuithal Gap=146 Distance to Nearest Station= 35.7 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
WAK.NN.D EMB.NN.D CTC.NN.D MPK.NN.D
REDF.NN.D PAH.NN.D LHV.NN.D BEK.NN.D
---- P ----------
-------- --------------
----------------------------#
#-----------------------------###
####---------------------------#####
######-------------------------#######
-#########-----------------------########
###########---------------------#########
##############------------------###########
################---------------############
##################------------##############
###################----------###############
#####################-----#################
T ######################---##################
##########################################
###########################################
######################----###############
###################--------#############
#################-------------#########
#############-----------------######
#########-----------------------#
#----------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
WAK.NN (D) Y 35.7 152 332 0.020 0.080 WAK.NN.wus.glib
EMB.NN (D) Y 45.3 297 117 0.020 0.080 EMB.NN.wus.glib
CTC.NN (D) Y 63.9 318 138 0.020 0.080 CTC.NN.wus.glib
MPK.NN (D) Y 66.3 328 148 0.020 0.080 MPK.NN.wus.glib
REDF.NN (D) Y 68.3 351 171 0.020 0.080 REDF.NN.wus.glib
PAH.NN (D) Y 105.1 11 192 0.020 0.080 PAH.NN.wus.glib
LHV.NN (D) Y 115.1 121 301 0.020 0.080 LHV.NN.wus.glib
BEK.NN (D) Y 135.9 333 152 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2017/06/07 00:20:36
mtinv Version 2.1_DEVEL OCT2008
Solution Name: T026.0sec_Z002.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2017/06/06 (157) 22:45:26.00 38.7832 -119.6348 1576638
Depth = 2.0 (km)
Mw = 3.82
Mo = 6.58x10^21 (dyne x cm)
Percent Double Couple = 98 %
Percent CLVD = 2 %
no ISO calculated
Epsilon=0.01
Percent Variance Reduction = 73.75 %
Total Fit = 24.62
Major Double Couple
strike dip rake
Nodal Plane 1: 33 63 -25
Nodal Plane 2: 135 68 -151
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -2.20 Mtt= -4.20 Mff= 6.40
Mrt= -3.20 Mrf= 0.03 Mtf= -1.19 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-4.20 1.19 -3.20
1.19 6.40 -0.03
-3.20 -0.03 -2.20
Eigenvalues:
T-axis eigenvalue= 6.55
N-axis eigenvalue= 0.07
P-axis eigenvalue= -6.62
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 6.55 trend=263 plunge=3
N-axis ev= 0.00 trend=169 plunge=54
P-axis ev=-6.55 trend=355 plunge=36
Maximum Azmuithal Gap=146 Distance to Nearest Station= 35.7 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
WAK.NN.D EMB.NN.D CTC.NN.D MPK.NN.D
REDF.NN.D PAH.NN.D LHV.NN.D BEK.NN.D
-----------------
-------- -------------#
---------- P -------------###
##---------- -------------#####
###--------------------------#######
#####-------------------------########
-######-------------------------#########
########-----------------------##########
##########----------------------###########
###########--------------------############
#############-----------------##############
##############----------------##############
##############-------------################
T ################----------#################
##################-------#################
#####################----##################
#########################################
########################################
####################---################
################---------###########
#############---------------#####
########---------------------
#-----------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
WAK.NN (D) Y 35.7 152 332 0.020 0.080 WAK.NN.wus.glib
EMB.NN (D) Y 45.3 297 117 0.020 0.080 EMB.NN.wus.glib
CTC.NN (D) Y 63.9 318 138 0.020 0.080 CTC.NN.wus.glib
MPK.NN (D) Y 66.3 328 148 0.020 0.080 MPK.NN.wus.glib
REDF.NN (D) Y 68.3 351 171 0.020 0.080 REDF.NN.wus.glib
PAH.NN (D) Y 105.1 11 192 0.020 0.080 PAH.NN.wus.glib
LHV.NN (D) Y 115.1 121 301 0.020 0.080 LHV.NN.wus.glib
BEK.NN (D) Y 135.9 333 152 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2017/06/07 00:20:35
mtinv Version 2.1_DEVEL OCT2008

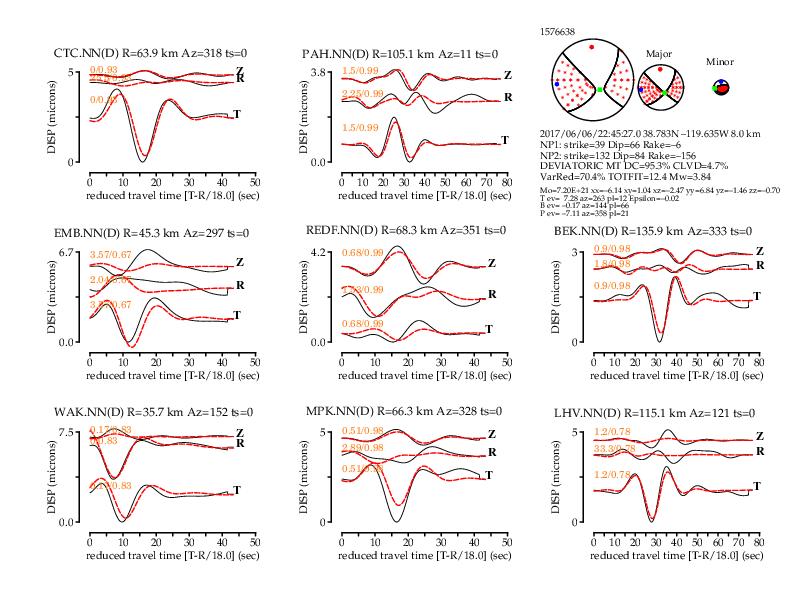

Solution Name: T027.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2017/06/06 (157) 22:45:27.00 38.7832 -119.6348 1576638
Depth = 8.0 (km)
Mw = 3.84
Mo = 7.20x10^21 (dyne x cm)
Percent Double Couple = 95 %
Percent CLVD = 5 %
no ISO calculated
Epsilon=-0.02
Percent Variance Reduction = 70.38 %
Total Fit = 12.41
Major Double Couple
strike dip rake
Nodal Plane 1: 39 66 -6
Nodal Plane 2: 132 84 -156
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.70 Mtt= -6.14 Mff= 6.84
Mrt= -2.47 Mrf= 1.46 Mtf= -1.04 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-6.14 1.04 -2.47
1.04 6.84 -1.46
-2.47 -1.46 -0.70
Eigenvalues:
T-axis eigenvalue= 7.28
N-axis eigenvalue= -0.17
P-axis eigenvalue= -7.11
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 7.28 trend=263 plunge=12
N-axis ev= 0.00 trend=144 plunge=66
P-axis ev=-7.28 trend=358 plunge=21
Maximum Azmuithal Gap=146 Distance to Nearest Station= 35.7 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
WAK.NN.D EMB.NN.D CTC.NN.D MPK.NN.D
REDF.NN.D PAH.NN.D LHV.NN.D BEK.NN.D
---- P ----------
-------- --------------
----------------------------#
------------------------------###
###----------------------------#####
######-------------------------#######
-########------------------------########
###########---------------------#########
##############------------------###########
################---------------############
##################------------##############
####################---------###############
#####################------################
T #######################--##################
##########################################
###########################################
#######################---###############
####################--------############
##################------------#########
#############------------------#####
#########------------------------
###--------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
WAK.NN (D) Y 35.7 152 332 0.020 0.080 WAK.NN.wus.glib
EMB.NN (D) Y 45.3 297 117 0.020 0.080 EMB.NN.wus.glib
CTC.NN (D) Y 63.9 318 138 0.020 0.080 CTC.NN.wus.glib
MPK.NN (D) Y 66.3 328 148 0.020 0.080 MPK.NN.wus.glib
REDF.NN (D) Y 68.3 351 171 0.020 0.080 REDF.NN.wus.glib
PAH.NN (D) Y 105.1 11 192 0.020 0.080 PAH.NN.wus.glib
LHV.NN (D) Y 115.1 121 301 0.020 0.080 LHV.NN.wus.glib
BEK.NN (D) Y 135.9 333 152 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2017/06/07 00:20:35
mtinv Version 2.1_DEVEL OCT2008

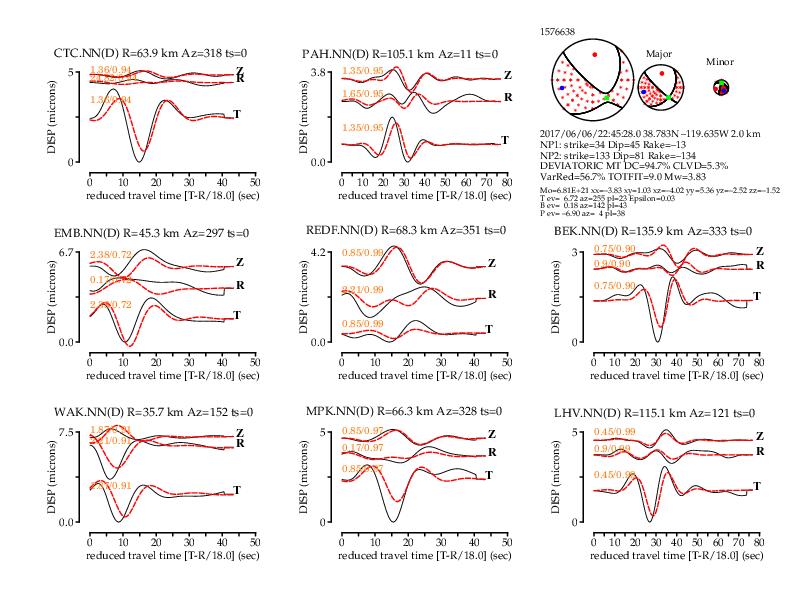

Solution Name: T028.0sec_Z002.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2017/06/06 (157) 22:45:28.00 38.7832 -119.6348 1576638
Depth = 2.0 (km)
Mw = 3.83
Mo = 6.81x10^21 (dyne x cm)
Percent Double Couple = 95 %
Percent CLVD = 5 %
no ISO calculated
Epsilon=0.03
Percent Variance Reduction = 56.73 %
Total Fit = 9.01
Major Double Couple
strike dip rake
Nodal Plane 1: 34 45 -13
Nodal Plane 2: 133 81 -134
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.52 Mtt= -3.83 Mff= 5.36
Mrt= -4.02 Mrf= 2.52 Mtf= -1.03 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-3.83 1.03 -4.02
1.03 5.36 -2.52
-4.02 -2.52 -1.52
Eigenvalues:
T-axis eigenvalue= 6.72
N-axis eigenvalue= 0.18
P-axis eigenvalue= -6.90
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 6.72 trend=255 plunge=23
N-axis ev= 0.00 trend=142 plunge=43
P-axis ev=-6.72 trend=4 plunge=38
Maximum Azmuithal Gap=146 Distance to Nearest Station= 35.7 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
WAK.NN.D EMB.NN.D CTC.NN.D MPK.NN.D
REDF.NN.D PAH.NN.D LHV.NN.D BEK.NN.D
-----------------
---------- ------------
------------ P -----------###
#------------- ------------####
####---------------------------#####
######--------------------------######
-########-------------------------#######
###########------------------------######
#############----------------------########
###############--------------------########
#################------------------#########
##################----------------##########
####################--------------##########
####################-----------###########
T ######################--------###########
########################-----############
#########################################
########################################
##########################---##########
######################-------#######
###################-------------#
#############----------------
-###--------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
WAK.NN (D) Y 35.7 152 332 0.020 0.080 WAK.NN.wus.glib
EMB.NN (D) Y 45.3 297 117 0.020 0.080 EMB.NN.wus.glib
CTC.NN (D) Y 63.9 318 138 0.020 0.080 CTC.NN.wus.glib
MPK.NN (D) Y 66.3 328 148 0.020 0.080 MPK.NN.wus.glib
REDF.NN (D) Y 68.3 351 171 0.020 0.080 REDF.NN.wus.glib
PAH.NN (D) Y 105.1 11 192 0.020 0.080 PAH.NN.wus.glib
LHV.NN (D) Y 115.1 121 301 0.020 0.080 LHV.NN.wus.glib
BEK.NN (D) Y 135.9 333 152 0.020 0.080 BEK.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2017/06/07 00:20:35
mtinv Version 2.1_DEVEL OCT2008
Event ID: mw
Origin ID: 001
Date:

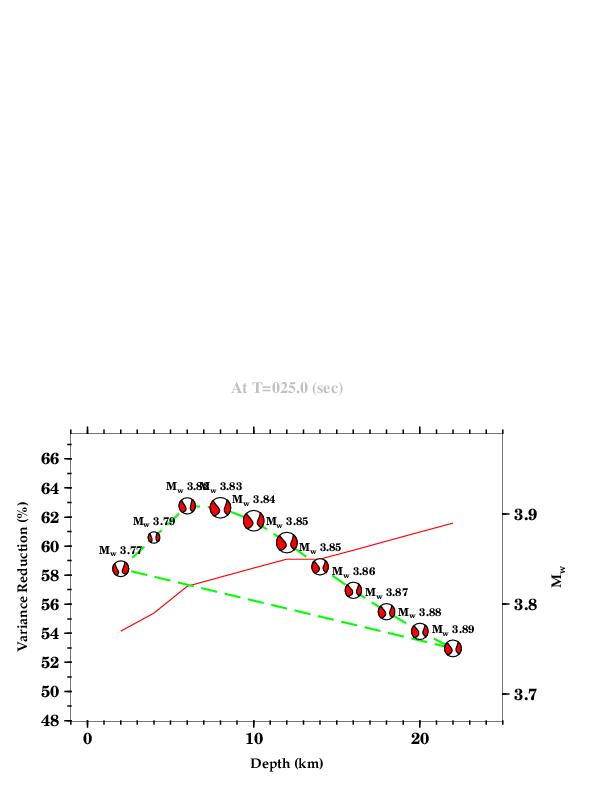

Filename: plotz.jpg
Event ID: mw
Origin ID: 001
Date:

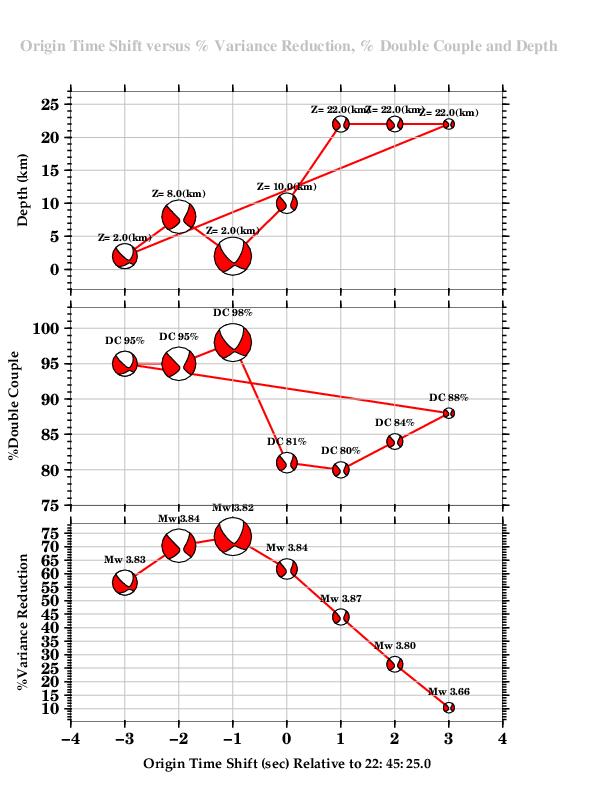

Filename: results.5.jpg
