Event ID: 670931
Origin ID: 1788562
Date: 2018/12/20,13:24:02

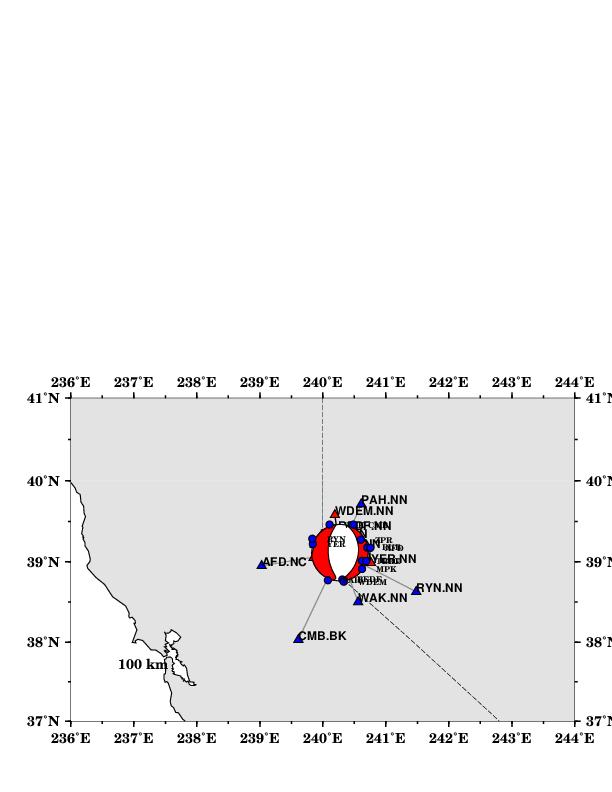

Filename: gmtmap.jpg

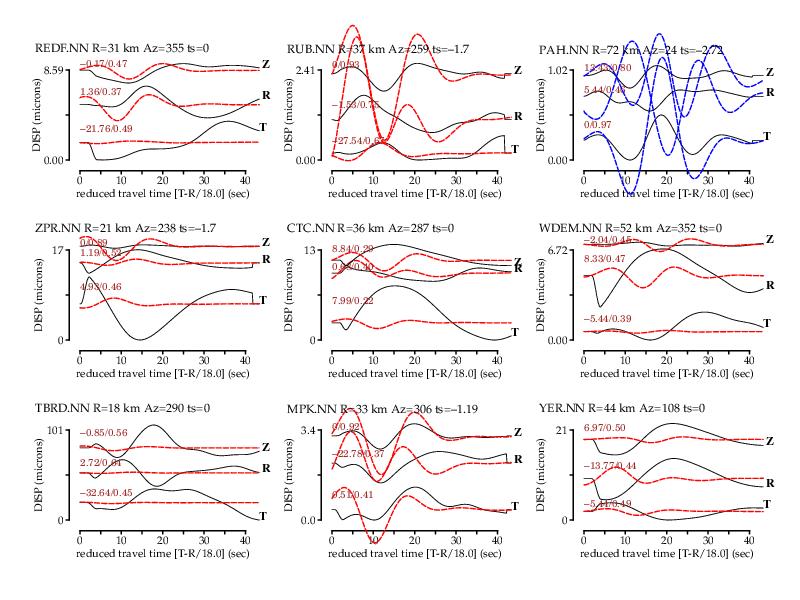

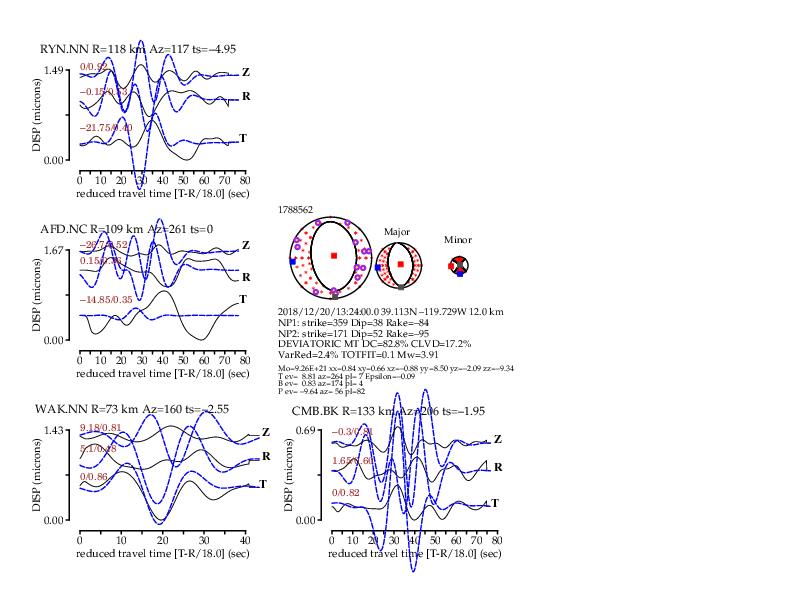

Solution Name: T000.0sec_Z012.0km_
Event ID: 670931
Origin ID: 1788562
Date: 2018/12/20,13:24:02
Seismic Moment Tensor Solution
2018/12/20 (354) 13:24:00.00 39.1129 -119.7290 1788562
Depth = 12.0 (km)
Mw = 3.91
Mo = 9.26x10^21 (dyne x cm)
Percent Double Couple = 83 %
Percent CLVD = 17 %
no ISO calculated
Epsilon=-0.09
Percent Variance Reduction = 2.37 %
Total Fit = 0.13
Major Double Couple
strike dip rake
Nodal Plane 1: 359 38 -84
Nodal Plane 2: 171 52 -95
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -9.34 Mtt= 0.84 Mff= 8.50
Mrt= -0.88 Mrf= 2.09 Mtf= -0.66 EXP=21
Moment Tensor Elements: Cartesian Coordinates
0.84 0.66 -0.88
0.66 8.50 -2.09
-0.88 -2.09 -9.34
Eigenvalues:
T-axis eigenvalue= 8.81
N-axis eigenvalue= 0.83
P-axis eigenvalue= -9.64
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 8.81 trend=264 plunge=7
N-axis ev= 0.00 trend=174 plunge=4
P-axis ev=-8.81 trend=56 plunge=82
Maximum Azmuithal Gap=130 Distance to Nearest Station= 18.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
TBRD.NN.D ZPR.NN.D REDF.NN.D MPK.NN.D
CTC.NN.D RUB.NN.D YER.NN.D WDEM.NN.D
######--##########
########-------##########
#########-----------#########
##########--------------#########
##########----------------##########
##########------------------##########
-###########-------------------##########
###########---------------------#########
############----------------------#########
############----------------------#########
############--------- ----------##########
############--------- P ----------##########
###########--------- ----------##########
T ############---------------------##########
############---------------------#########
##############--------------------#########
#############-------------------#########
#############-----------------##########
##############----------------#########
#############-------------##########
#############-----------#########
#############-------#########
#############---#########
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
TBRD.NN (D) Y 18.4 290 110 0.020 0.080 TBRD.NN.wus.glib
ZPR.NN (D) Y 21.5 238 58 0.020 0.080 ZPR.NN.wus.glib
REDF.NN (D) Y 30.9 355 175 0.020 0.080 REDF.NN.wus.glib
MPK.NN (D) Y 33.2 306 126 0.020 0.080 MPK.NN.wus.glib
CTC.NN (D) Y 36.2 287 107 0.020 0.080 CTC.NN.wus.glib
RUB.NN (D) Y 37.0 259 79 0.020 0.080 RUB.NN.wus.glib
YER.NN (D) Y 44.3 108 288 0.020 0.080 YER.NN.wus.glib
WDEM.NN (D) Y 52.4 352 172 0.020 0.080 WDEM.NN.wus.glib
PAH.NN (D) N 72.4 24 204 0.020 0.080 PAH.NN.wus.glib
WAK.NN (D) N 72.6 160 340 0.020 0.080 WAK.NN.wus.glib
AFD.NC (D) N 108.6 261 80 0.020 0.080 AFD.NC.wus.glib
RYN.NN (D) N 117.5 117 298 0.020 0.080 RYN.NN.wus.glib
CMB.BK (D) N 133.3 206 25 0.020 0.080 CMB.BK.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2018/12/31 19:11:07 UTC
Date: 2018/12/31 11:11:07 PST
mtinv Version 3.0.3 Thu Apr 17 11:01:57 EDT 2014

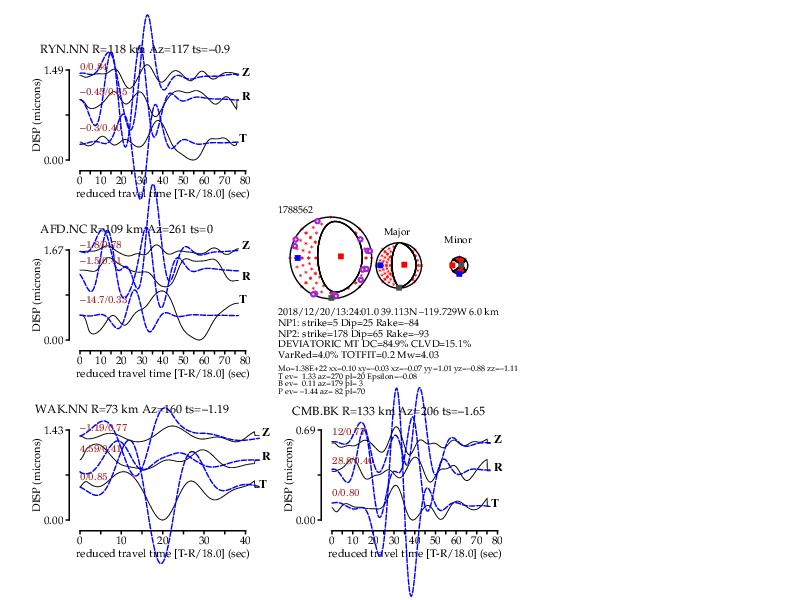

Solution Name: T001.0sec_Z006.0km_
Event ID: 670931
Origin ID: 1788562
Date: 2018/12/20,13:24:02
Seismic Moment Tensor Solution
2018/12/20 (354) 13:24:01.00 39.1129 -119.7290 1788562
Depth = 6.0 (km)
Mw = 4.03
Mo = 1.38x10^22 (dyne x cm)
Percent Double Couple = 85 %
Percent CLVD = 15 %
no ISO calculated
Epsilon=-0.08
Percent Variance Reduction = 4.01 %
Total Fit = 0.25
Major Double Couple
strike dip rake
Nodal Plane 1: 5 25 -84
Nodal Plane 2: 178 65 -93
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.11 Mtt= 0.10 Mff= 1.01
Mrt= -0.07 Mrf= 0.88 Mtf= 0.03 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.10 -0.03 -0.07
-0.03 1.01 -0.88
-0.07 -0.88 -1.11
Eigenvalues:
T-axis eigenvalue= 1.33
N-axis eigenvalue= 0.11
P-axis eigenvalue= -1.44
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.33 trend=270 plunge=20
N-axis ev= 0.00 trend=179 plunge=3
P-axis ev=-1.33 trend=82 plunge=70
Maximum Azmuithal Gap=130 Distance to Nearest Station= 18.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
TBRD.NN.D ZPR.NN.D REDF.NN.D MPK.NN.D
CTC.NN.D RUB.NN.D YER.NN.D WDEM.NN.D
########--########
###########-------#######
############----------#######
#############--------------######
#############----------------#######
##############-----------------#######
-##############-------------------#######
###############--------------------######
################---------------------######
################---------------------######
##############----------- --------#######
T ##############----------- P --------#######
##############----------- --------#######
################---------------------#######
################---------------------######
################--------------------#######
################-------------------######
###############------------------#######
################----------------#######
##############--------------########
##############-----------########
#############--------########
############----#########
##################
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
TBRD.NN (D) Y 18.4 290 110 0.020 0.080 TBRD.NN.wus.glib
ZPR.NN (D) Y 21.5 238 58 0.020 0.080 ZPR.NN.wus.glib
REDF.NN (D) Y 30.9 355 175 0.020 0.080 REDF.NN.wus.glib
MPK.NN (D) Y 33.2 306 126 0.020 0.080 MPK.NN.wus.glib
CTC.NN (D) Y 36.2 287 107 0.020 0.080 CTC.NN.wus.glib
RUB.NN (D) Y 37.0 259 79 0.020 0.080 RUB.NN.wus.glib
YER.NN (D) Y 44.3 108 288 0.020 0.080 YER.NN.wus.glib
WDEM.NN (D) Y 52.4 352 172 0.020 0.080 WDEM.NN.wus.glib
PAH.NN (D) N 72.4 24 204 0.020 0.080 PAH.NN.wus.glib
WAK.NN (D) N 72.6 160 340 0.020 0.080 WAK.NN.wus.glib
AFD.NC (D) N 108.6 261 80 0.020 0.080 AFD.NC.wus.glib
RYN.NN (D) N 117.5 117 298 0.020 0.080 RYN.NN.wus.glib
CMB.BK (D) N 133.3 206 25 0.020 0.080 CMB.BK.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2018/12/31 19:11:07 UTC
Date: 2018/12/31 11:11:07 PST
mtinv Version 3.0.3 Thu Apr 17 11:01:57 EDT 2014

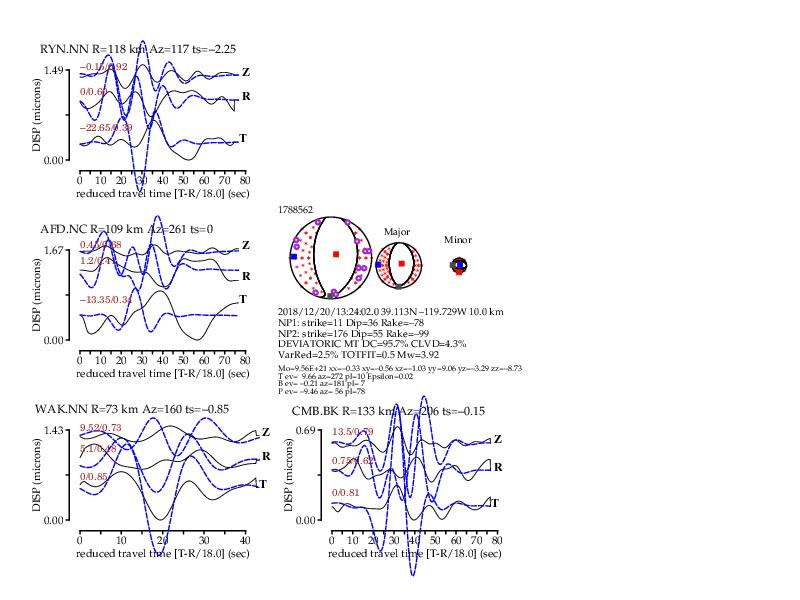

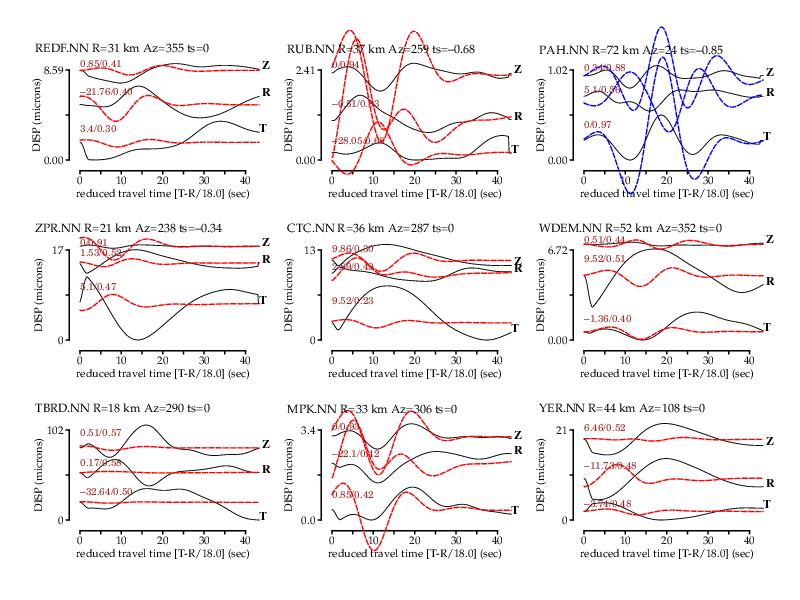

Solution Name: T002.0sec_Z010.0km_
Event ID: 670931
Origin ID: 1788562
Date: 2018/12/20,13:24:02
Seismic Moment Tensor Solution
2018/12/20 (354) 13:24:02.00 39.1129 -119.7290 1788562
Depth = 10.0 (km)
Mw = 3.92
Mo = 9.56x10^21 (dyne x cm)
Percent Double Couple = 96 %
Percent CLVD = 4 %
no ISO calculated
Epsilon=0.02
Percent Variance Reduction = 2.50 %
Total Fit = 0.47
Major Double Couple
strike dip rake
Nodal Plane 1: 11 36 -78
Nodal Plane 2: 176 55 -99
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -8.73 Mtt= -0.33 Mff= 9.06
Mrt= -1.03 Mrf= 3.29 Mtf= 0.56 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-0.33 -0.56 -1.03
-0.56 9.06 -3.29
-1.03 -3.29 -8.73
Eigenvalues:
T-axis eigenvalue= 9.66
N-axis eigenvalue= -0.21
P-axis eigenvalue= -9.46
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 9.66 trend=272 plunge=10
N-axis ev= 0.00 trend=181 plunge=7
P-axis ev=-9.66 trend=56 plunge=78
Maximum Azmuithal Gap=130 Distance to Nearest Station= 18.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
TBRD.NN.D ZPR.NN.D REDF.NN.D MPK.NN.D
CTC.NN.D RUB.NN.D YER.NN.D WDEM.NN.D
#######------#####
##########---------######
##########------------#######
###########---------------#######
###########-----------------########
############------------------########
-############--------------------########
#############--------------------########
#############----------------------########
#############---------- ---------########
############---------- P ---------#########
T ############---------- ---------#########
############----------------------#########
#############----------------------#########
##############--------------------#########
##############--------------------#########
##############------------------#########
#############-----------------##########
##############---------------##########
#############------------###########
#############----------##########
############------###########
############-############
##################
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
TBRD.NN (D) Y 18.4 290 110 0.020 0.080 TBRD.NN.wus.glib
ZPR.NN (D) Y 21.5 238 58 0.020 0.080 ZPR.NN.wus.glib
REDF.NN (D) Y 30.9 355 175 0.020 0.080 REDF.NN.wus.glib
MPK.NN (D) Y 33.2 306 126 0.020 0.080 MPK.NN.wus.glib
CTC.NN (D) Y 36.2 287 107 0.020 0.080 CTC.NN.wus.glib
RUB.NN (D) Y 37.0 259 79 0.020 0.080 RUB.NN.wus.glib
YER.NN (D) Y 44.3 108 288 0.020 0.080 YER.NN.wus.glib
WDEM.NN (D) Y 52.4 352 172 0.020 0.080 WDEM.NN.wus.glib
PAH.NN (D) N 72.4 24 204 0.020 0.080 PAH.NN.wus.glib
WAK.NN (D) N 72.6 160 340 0.020 0.080 WAK.NN.wus.glib
AFD.NC (D) N 108.6 261 80 0.020 0.080 AFD.NC.wus.glib
RYN.NN (D) N 117.5 117 298 0.020 0.080 RYN.NN.wus.glib
CMB.BK (D) N 133.3 206 25 0.020 0.080 CMB.BK.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2018/12/31 19:11:25 UTC
Date: 2018/12/31 11:11:25 PST
mtinv Version 3.0.3 Thu Apr 17 11:01:57 EDT 2014

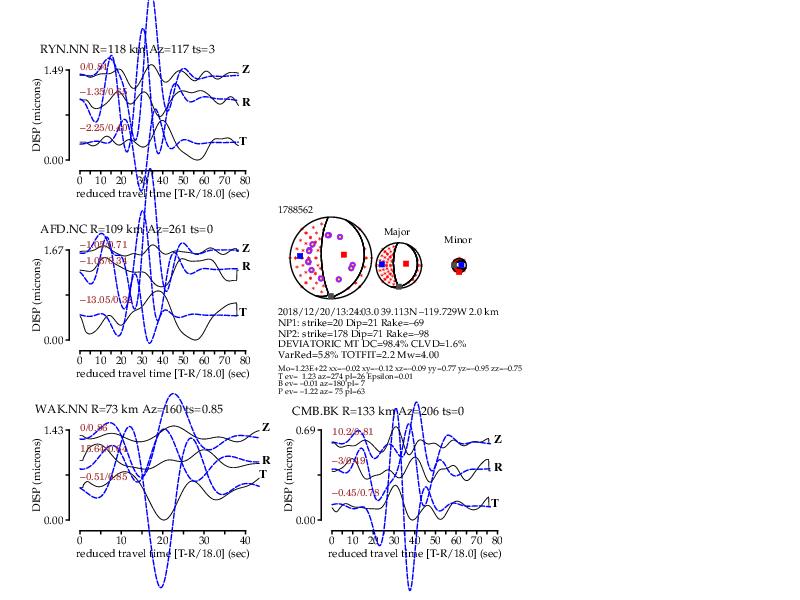

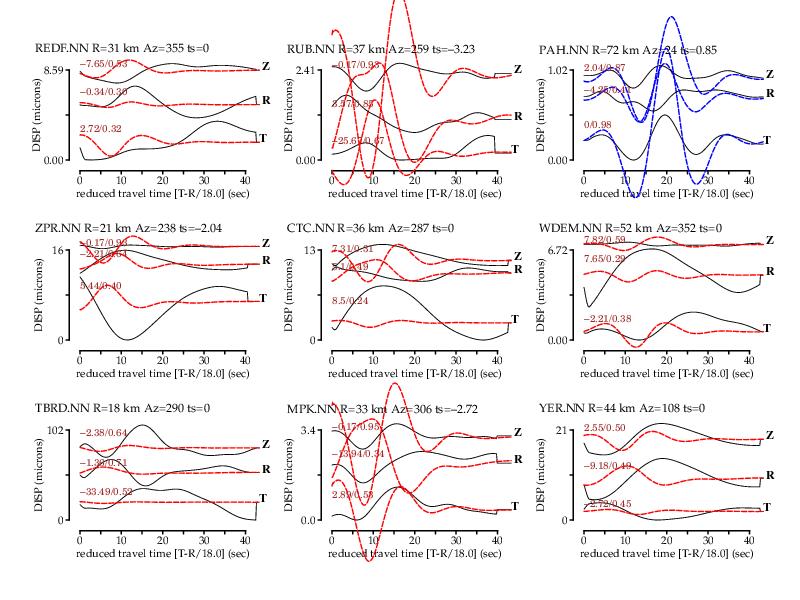

Solution Name: T003.0sec_Z002.0km_
Event ID: 670931
Origin ID: 1788562
Date: 2018/12/20,13:24:02
Seismic Moment Tensor Solution
2018/12/20 (354) 13:24:03.00 39.1129 -119.7290 1788562
Depth = 2.0 (km)
Mw = 4.00
Mo = 1.23x10^22 (dyne x cm)
Percent Double Couple = 98 %
Percent CLVD = 2 %
no ISO calculated
Epsilon=0.01
Percent Variance Reduction = 5.83 %
Total Fit = 2.22
Major Double Couple
strike dip rake
Nodal Plane 1: 20 21 -69
Nodal Plane 2: 178 71 -98
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.75 Mtt= -0.02 Mff= 0.77
Mrt= -0.09 Mrf= 0.95 Mtf= 0.12 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-0.02 -0.12 -0.09
-0.12 0.77 -0.95
-0.09 -0.95 -0.75
Eigenvalues:
T-axis eigenvalue= 1.23
N-axis eigenvalue= -0.01
P-axis eigenvalue= -1.22
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.23 trend=274 plunge=26
N-axis ev= 0.00 trend=180 plunge=7
P-axis ev=-1.23 trend=75 plunge=63
Maximum Azmuithal Gap=130 Distance to Nearest Station= 18.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
TBRD.NN.D ZPR.NN.D REDF.NN.D MPK.NN.D
CTC.NN.D RUB.NN.D YER.NN.D WDEM.NN.D
########--------##
###########---------#####
############-------------####
##############---------------####
##############-----------------#####
###############------------------#####
-################-------------------#####
################---------------------####
#################---------------------#####
#################----------- --------####
###############----------- P --------#####
T ###############----------- --------#####
###############----------------------#####
#################---------------------######
#################---------------------#####
##################-------------------######
#################------------------######
################-----------------#######
#################---------------#######
###############-------------########
###############----------########
##############------#########
############--###########
##################
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
TBRD.NN (D) Y 18.4 290 110 0.020 0.080 TBRD.NN.wus.glib
ZPR.NN (D) Y 21.5 238 58 0.020 0.080 ZPR.NN.wus.glib
REDF.NN (D) Y 30.9 355 175 0.020 0.080 REDF.NN.wus.glib
MPK.NN (D) Y 33.2 306 126 0.020 0.080 MPK.NN.wus.glib
CTC.NN (D) Y 36.2 287 107 0.020 0.080 CTC.NN.wus.glib
RUB.NN (D) Y 37.0 259 79 0.020 0.080 RUB.NN.wus.glib
YER.NN (D) Y 44.3 108 288 0.020 0.080 YER.NN.wus.glib
WDEM.NN (D) Y 52.4 352 172 0.020 0.080 WDEM.NN.wus.glib
PAH.NN (D) N 72.4 24 204 0.020 0.080 PAH.NN.wus.glib
WAK.NN (D) N 72.6 160 340 0.020 0.080 WAK.NN.wus.glib
AFD.NC (D) N 108.6 261 80 0.020 0.080 AFD.NC.wus.glib
RYN.NN (D) N 117.5 117 298 0.020 0.080 RYN.NN.wus.glib
CMB.BK (D) N 133.3 206 25 0.020 0.080 CMB.BK.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2018/12/31 19:11:06 UTC
Date: 2018/12/31 11:11:06 PST
mtinv Version 3.0.3 Thu Apr 17 11:01:57 EDT 2014

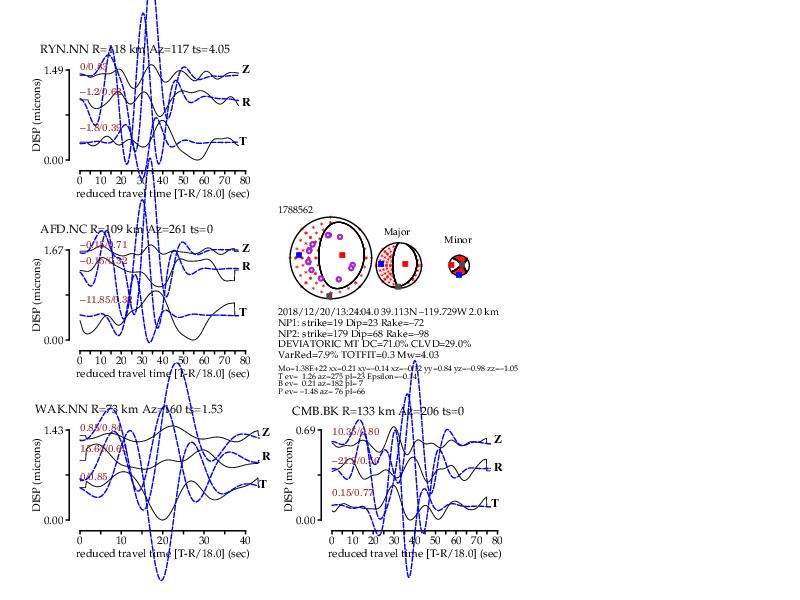

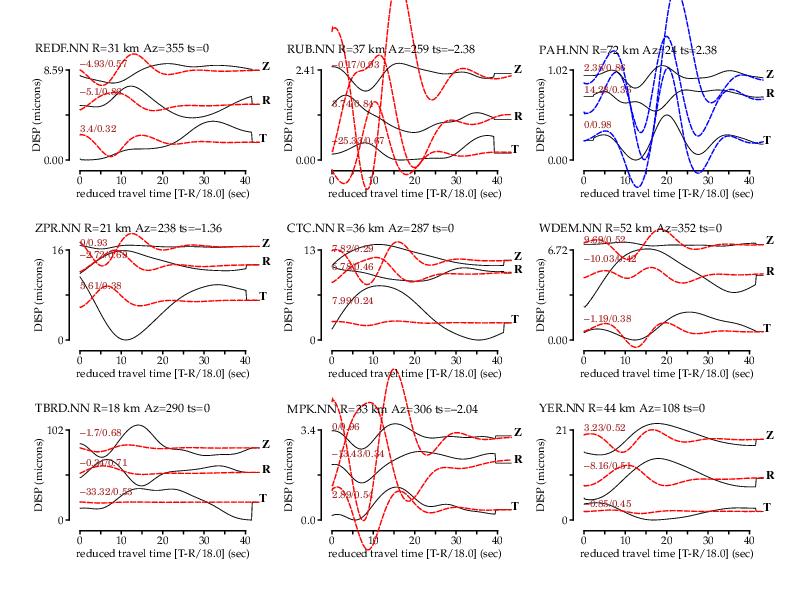

Solution Name: T004.0sec_Z002.0km_
Event ID: 670931
Origin ID: 1788562
Date: 2018/12/20,13:24:02
Seismic Moment Tensor Solution
2018/12/20 (354) 13:24:04.00 39.1129 -119.7290 1788562
Depth = 2.0 (km)
Mw = 4.03
Mo = 1.38x10^22 (dyne x cm)
Percent Double Couple = 71 %
Percent CLVD = 29 %
no ISO calculated
Epsilon=-0.14
Percent Variance Reduction = 7.89 %
Total Fit = 0.26
Major Double Couple
strike dip rake
Nodal Plane 1: 19 23 -72
Nodal Plane 2: 179 68 -98
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.05 Mtt= 0.21 Mff= 0.84
Mrt= -0.12 Mrf= 0.98 Mtf= 0.14 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.21 -0.14 -0.12
-0.14 0.84 -0.98
-0.12 -0.98 -1.05
Eigenvalues:
T-axis eigenvalue= 1.26
N-axis eigenvalue= 0.21
P-axis eigenvalue= -1.48
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.26 trend=275 plunge=23
N-axis ev= 0.00 trend=182 plunge=7
P-axis ev=-1.26 trend=76 plunge=66
Maximum Azmuithal Gap=130 Distance to Nearest Station= 18.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
TBRD.NN.D ZPR.NN.D REDF.NN.D MPK.NN.D
CTC.NN.D RUB.NN.D YER.NN.D WDEM.NN.D
#########------###
###########---------#####
#############------------####
##############--------------#####
##############-----------------#####
###############------------------#####
-###############--------------------#####
################--------------------#####
#################---------------------#####
################---------- ---------#####
###############---------- P ---------######
T ###############---------- ---------######
###############----------------------######
################----------------------######
#################--------------------######
#################-------------------#######
################-------------------######
###############------------------#######
################---------------########
##############--------------########
##############----------#########
#############-------#########
############-############
##################
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
TBRD.NN (D) Y 18.4 290 110 0.020 0.080 TBRD.NN.wus.glib
ZPR.NN (D) Y 21.5 238 58 0.020 0.080 ZPR.NN.wus.glib
REDF.NN (D) Y 30.9 355 175 0.020 0.080 REDF.NN.wus.glib
MPK.NN (D) Y 33.2 306 126 0.020 0.080 MPK.NN.wus.glib
CTC.NN (D) Y 36.2 287 107 0.020 0.080 CTC.NN.wus.glib
RUB.NN (D) Y 37.0 259 79 0.020 0.080 RUB.NN.wus.glib
YER.NN (D) Y 44.3 108 288 0.020 0.080 YER.NN.wus.glib
WDEM.NN (D) Y 52.4 352 172 0.020 0.080 WDEM.NN.wus.glib
PAH.NN (D) N 72.4 24 204 0.020 0.080 PAH.NN.wus.glib
WAK.NN (D) N 72.6 160 340 0.020 0.080 WAK.NN.wus.glib
AFD.NC (D) N 108.6 261 80 0.020 0.080 AFD.NC.wus.glib
RYN.NN (D) N 117.5 117 298 0.020 0.080 RYN.NN.wus.glib
CMB.BK (D) N 133.3 206 25 0.020 0.080 CMB.BK.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2018/12/31 19:11:06 UTC
Date: 2018/12/31 11:11:06 PST
mtinv Version 3.0.3 Thu Apr 17 11:01:57 EDT 2014

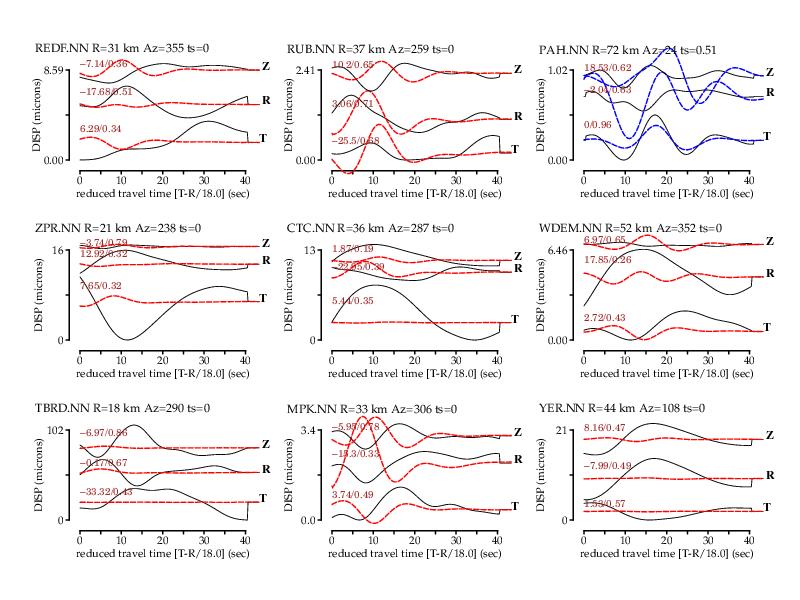

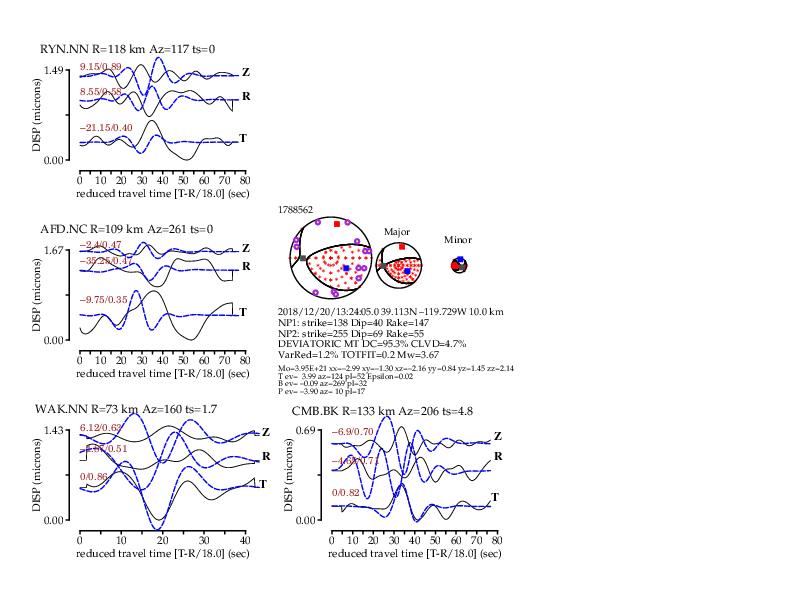

Solution Name: T005.0sec_Z010.0km_
Event ID: 670931
Origin ID: 1788562
Date: 2018/12/20,13:24:02
Seismic Moment Tensor Solution
2018/12/20 (354) 13:24:05.00 39.1129 -119.7290 1788562
Depth = 10.0 (km)
Mw = 3.67
Mo = 3.95x10^21 (dyne x cm)
Percent Double Couple = 95 %
Percent CLVD = 5 %
no ISO calculated
Epsilon=0.02
Percent Variance Reduction = 1.15 %
Total Fit = 0.20
Major Double Couple
strike dip rake
Nodal Plane 1: 138 40 147
Nodal Plane 2: 255 69 55
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 2.14 Mtt= -2.99 Mff= 0.84
Mrt= -2.16 Mrf= -1.45 Mtf= 1.30 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-2.99 -1.30 -2.16
-1.30 0.84 1.45
-2.16 1.45 2.14
Eigenvalues:
T-axis eigenvalue= 3.99
N-axis eigenvalue= -0.09
P-axis eigenvalue= -3.90
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 3.99 trend=124 plunge=52
N-axis ev= 0.00 trend=269 plunge=32
P-axis ev=-3.99 trend=10 plunge=17
Maximum Azmuithal Gap=130 Distance to Nearest Station= 18.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
TBRD.NN.D ZPR.NN.D REDF.NN.D MPK.NN.D
CTC.NN.D RUB.NN.D YER.NN.D WDEM.NN.D
---------- P ----
-------------- --------
-----------------------------
###------------------------------
###--------------------------------
###----------------------------------
-####------------------------------------
#####------------------------------------
######---------------######################
######---------############################
#######----#################################
############################################
############################################
#####--#####################################
###-----###################################
---------##################### ##########
---------#################### T #########
----------################## #########
------------###########################
------------########################
--------------###################
----------------#############
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
TBRD.NN (D) Y 18.4 290 110 0.020 0.080 TBRD.NN.wus.glib
ZPR.NN (D) Y 21.5 238 58 0.020 0.080 ZPR.NN.wus.glib
REDF.NN (D) Y 30.9 355 175 0.020 0.080 REDF.NN.wus.glib
MPK.NN (D) Y 33.2 306 126 0.020 0.080 MPK.NN.wus.glib
CTC.NN (D) Y 36.2 287 107 0.020 0.080 CTC.NN.wus.glib
RUB.NN (D) Y 37.0 259 79 0.020 0.080 RUB.NN.wus.glib
YER.NN (D) Y 44.3 108 288 0.020 0.080 YER.NN.wus.glib
WDEM.NN (D) Y 52.4 352 172 0.020 0.080 WDEM.NN.wus.glib
PAH.NN (D) N 72.4 24 204 0.020 0.080 PAH.NN.wus.glib
WAK.NN (D) N 72.6 160 340 0.020 0.080 WAK.NN.wus.glib
AFD.NC (D) N 108.6 261 80 0.020 0.080 AFD.NC.wus.glib
RYN.NN (D) N 117.5 117 298 0.020 0.080 RYN.NN.wus.glib
CMB.BK (D) N 133.3 206 25 0.020 0.080 CMB.BK.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2018/12/31 19:11:05 UTC
Date: 2018/12/31 11:11:05 PST
mtinv Version 3.0.3 Thu Apr 17 11:01:57 EDT 2014

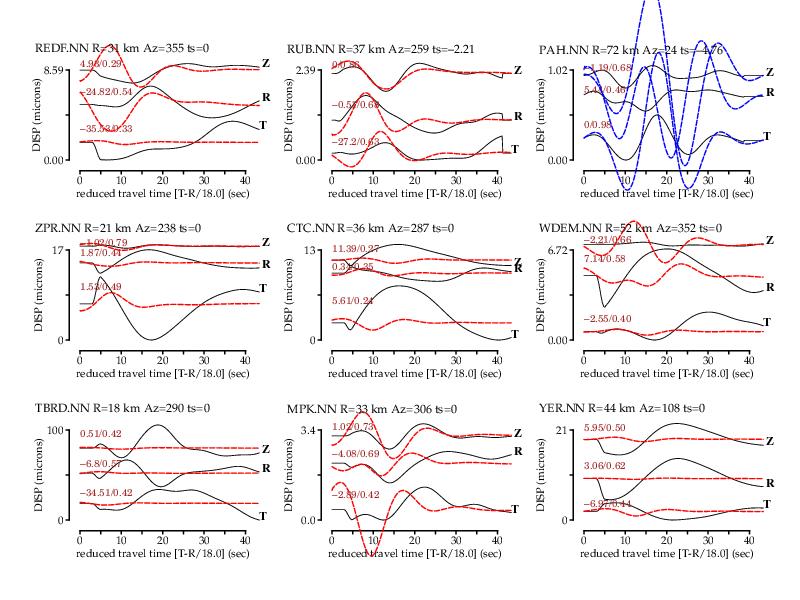

Solution Name: T059.0sec_Z002.0km_
Event ID: 670931
Origin ID: 1788562
Date: 2018/12/20,13:24:02
Seismic Moment Tensor Solution
2018/12/20 (354) 13:23:59.00 39.1129 -119.7290 1788562
Depth = 2.0 (km)
Mw = 3.82
Mo = 6.62x10^21 (dyne x cm)
Percent Double Couple = 97 %
Percent CLVD = 3 %
no ISO calculated
Epsilon=-0.01
Percent Variance Reduction = 1.68 %
Total Fit = 0.44
Major Double Couple
strike dip rake
Nodal Plane 1: 104 31 121
Nodal Plane 2: 249 64 73
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 4.94 Mtt= -5.55 Mff= 0.61
Mrt= -3.37 Mrf= -2.14 Mtf= -0.36 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-5.55 0.36 -3.37
0.36 0.61 2.14
-3.37 2.14 4.94
Eigenvalues:
T-axis eigenvalue= 6.58
N-axis eigenvalue= 0.09
P-axis eigenvalue= -6.67
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 6.58 trend=128 plunge=66
N-axis ev= 0.00 trend=257 plunge=15
P-axis ev=-6.58 trend=352 plunge=17
Maximum Azmuithal Gap=130 Distance to Nearest Station= 18.4 (km)
Number of Stations (D=Displacement/V=Velocity) Used=8 (defining only)
TBRD.NN.D ZPR.NN.D REDF.NN.D MPK.NN.D
CTC.NN.D RUB.NN.D YER.NN.D WDEM.NN.D
--- P -----------
------- ---------------
-----------------------------
---------------------------------
-----------------------------------
-------------------------------------
------------------------------#####------
---------------------####################
-----------------##########################
#------------##############################
#---------##################################
##------####################################
###--#######################################
######################### ################
######################### T ###############
###-##################### ###############
#---#####################################
-----#################################-
-------#############################---
---------######################----
------------##############-------
-----------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
TBRD.NN (D) Y 18.4 290 110 0.020 0.080 TBRD.NN.wus.glib
ZPR.NN (D) Y 21.5 238 58 0.020 0.080 ZPR.NN.wus.glib
REDF.NN (D) Y 30.9 355 175 0.020 0.080 REDF.NN.wus.glib
MPK.NN (D) Y 33.2 306 126 0.020 0.080 MPK.NN.wus.glib
CTC.NN (D) Y 36.2 287 107 0.020 0.080 CTC.NN.wus.glib
RUB.NN (D) Y 37.0 259 79 0.020 0.080 RUB.NN.wus.glib
YER.NN (D) Y 44.3 108 288 0.020 0.080 YER.NN.wus.glib
WDEM.NN (D) Y 52.4 352 172 0.020 0.080 WDEM.NN.wus.glib
PAH.NN (D) N 72.4 24 204 0.020 0.080 PAH.NN.wus.glib
WAK.NN (D) N 72.6 160 340 0.020 0.080 WAK.NN.wus.glib
AFD.NC (D) N 108.6 261 80 0.020 0.080 AFD.NC.wus.glib
RYN.NN (D) N 117.5 117 298 0.020 0.080 RYN.NN.wus.glib
CMB.BK (D) N 133.3 206 25 0.020 0.080 CMB.BK.wus.glib
(V)-velocity (D)-Displacement
Author: rt
Date: 2018/12/31 19:11:08 UTC
Date: 2018/12/31 11:11:08 PST
mtinv Version 3.0.3 Thu Apr 17 11:01:57 EDT 2014
Event ID: 670931
Origin ID: 1788562
Date: 2018/12/20,13:24:02

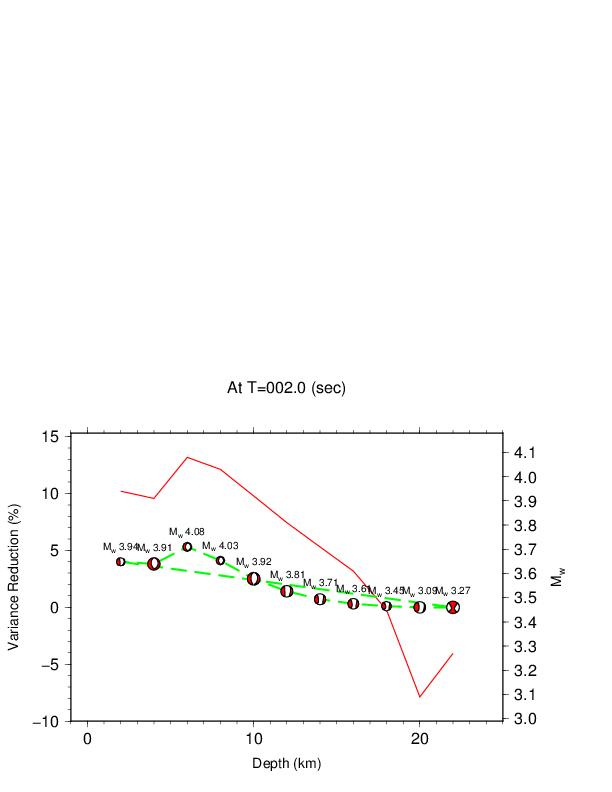

Filename: plotz.jpg
Event ID: 670931
Origin ID: 1788562
Date: 2018/12/20,13:24:02

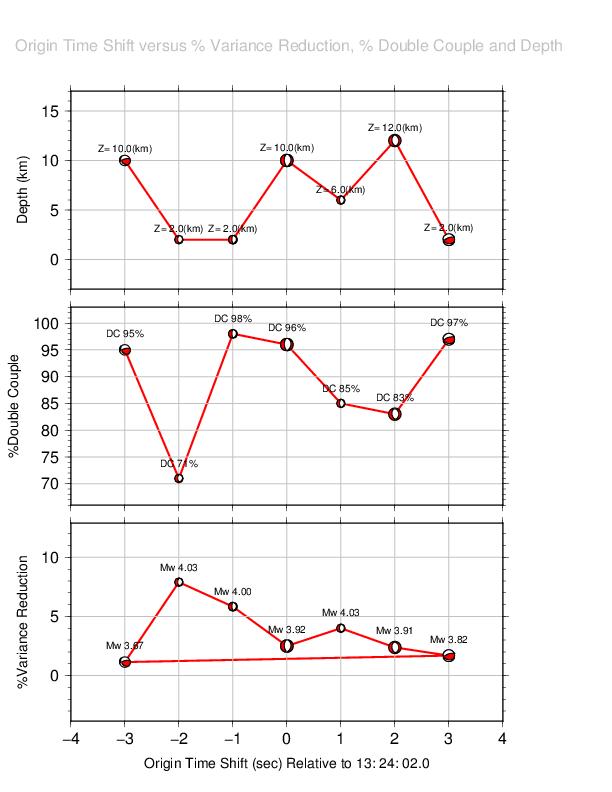

Filename: results.5.jpg
