Event ID: mw
Origin ID: 001
Date:
Filename: gmtmap.jpg
Solution Name: T027.0sec_Z010.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:27.00 39.1112 -119.7361 001
Depth = 10.0 (km)
Mw = 4.30
Mo = 3.45x10^22 (dyne x cm)
Percent Double Couple = 98 %
Percent CLVD = 2 %
no ISO calculated
Epsilon=-0.01
Percent Variance Reduction = 6.92 %
Total Fit = 2.37
Major Double Couple
strike dip rake
Nodal Plane 1: 10 40 102
Nodal Plane 2: 175 51 80
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 3.29 Mtt= 0.09 Mff= -3.38
Mrt= 0.42 Mrf= -0.68 Mtf= -0.15 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.09 0.15 0.42
0.15 -3.38 0.68
0.42 0.68 3.29
Eigenvalues:
T-axis eigenvalue= 3.42
N-axis eigenvalue= 0.03
P-axis eigenvalue= -3.45
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 3.42 trend=38 plunge=81
N-axis ev= 0.00 trend=181 plunge=8
P-axis ev=-3.42 trend=272 plunge=6
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
-----##########--
-------#############-----
--------################-----
---------##################------
---------####################------
---------######################------
-----------######################--------
----------########################-------
-----------########################--------
-----------########## ###########--------
----------########## T ###########--------
P ----------########## ###########--------
----------########################--------
-----------########################--------
-----------#######################---------
------------######################---------
-----------#####################---------
-----------####################--------
------------##################---------
-----------###############---------
-----------#############---------
----------##########---------
----------######--------
----#######------
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:38 UTC
Date: 2020/03/20 19:17:38 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

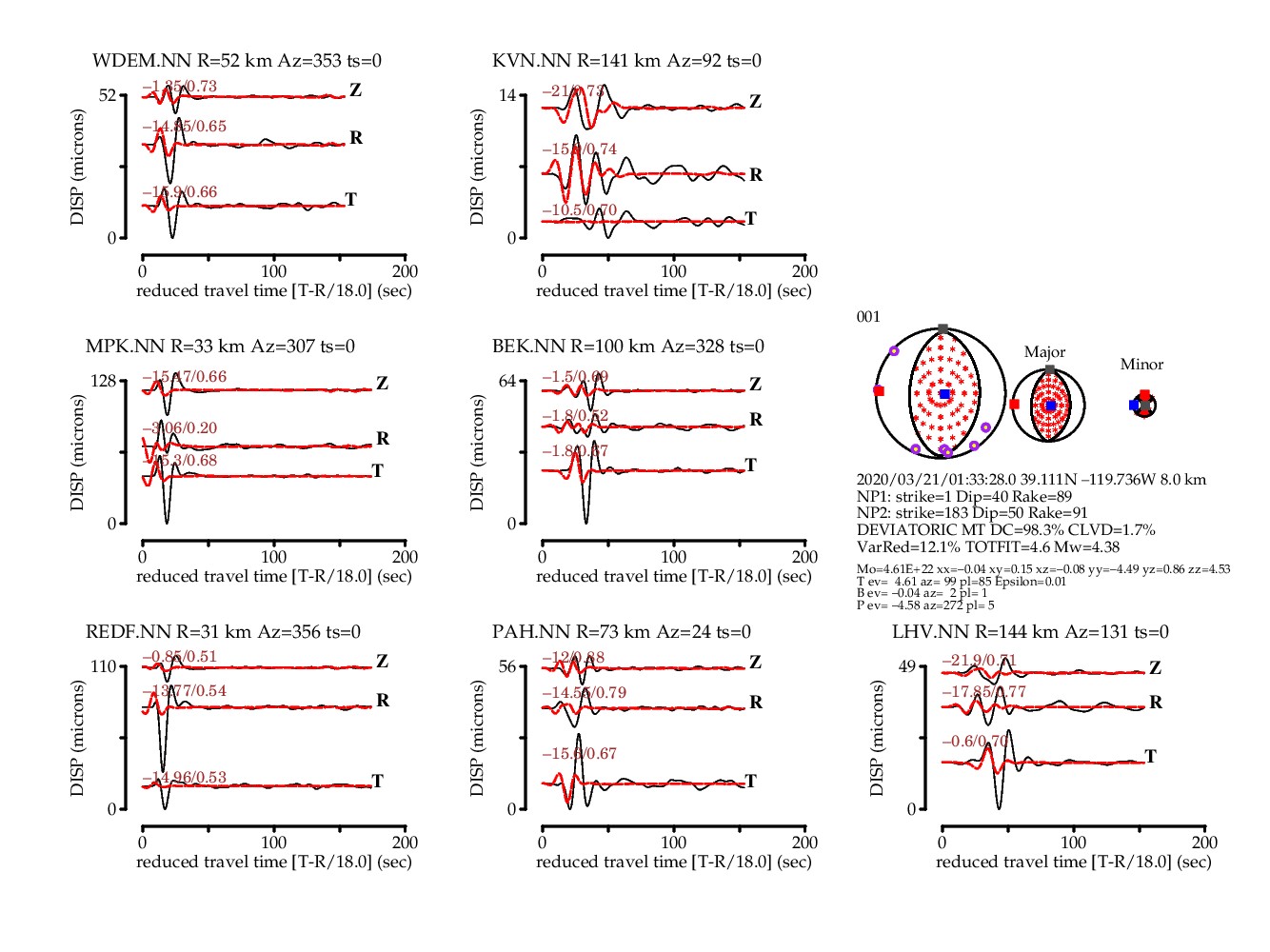

Solution Name: T028.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:28.00 39.1112 -119.7361 001
Depth = 8.0 (km)
Mw = 4.38
Mo = 4.61x10^22 (dyne x cm)
Percent Double Couple = 98 %
Percent CLVD = 2 %
no ISO calculated
Epsilon=0.01
Percent Variance Reduction = 12.06 %
Total Fit = 4.55
Major Double Couple
strike dip rake
Nodal Plane 1: 1 40 89
Nodal Plane 2: 183 50 91
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 4.53 Mtt= -0.04 Mff= -4.49
Mrt= -0.08 Mrf= -0.86 Mtf= -0.15 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-0.04 0.15 -0.08
0.15 -4.49 0.86
-0.08 0.86 4.53
Eigenvalues:
T-axis eigenvalue= 4.61
N-axis eigenvalue= -0.04
P-axis eigenvalue= -4.58
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 4.61 trend=99 plunge=85
N-axis ev= 0.00 trend=2 plunge=1
P-axis ev=-4.61 trend=272 plunge=5
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
-------#####-----
---------##########------
---------#############-------
----------################-------
----------##################-------
----------####################-------
-----------#####################---------
-----------######################--------
------------#######################--------
-----------########################--------
----------########################--------
P ----------########## ###########--------
----------########## T ###########--------
-----------########## ###########--------
-----------########################--------
-----------#######################---------
----------#######################--------
----------#####################--------
----------#####################--------
---------##################--------
---------################--------
--------##############-------
--------##########------
-----#######-----
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:37 UTC
Date: 2020/03/20 19:17:37 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T029.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:29.00 39.1112 -119.7361 001
Depth = 8.0 (km)
Mw = 4.42
Mo = 5.32x10^22 (dyne x cm)
Percent Double Couple = 99 %
Percent CLVD = 1 %
no ISO calculated
Epsilon=0.01
Percent Variance Reduction = 17.66 %
Total Fit = 7.23
Major Double Couple
strike dip rake
Nodal Plane 1: 356 39 80
Nodal Plane 2: 189 52 98
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 5.12 Mtt= 0.01 Mff= -5.13
Mrt= -0.62 Mrf= -1.18 Mtf= -0.22 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.01 0.22 -0.62
0.22 -5.13 1.18
-0.62 1.18 5.12
Eigenvalues:
T-axis eigenvalue= 5.32
N-axis eigenvalue= -0.04
P-axis eigenvalue= -5.28
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 5.32 trend=135 plunge=81
N-axis ev= 0.00 trend=4 plunge=6
P-axis ev=-5.32 trend=273 plunge=7
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
-------#####-----
-----------#######-------
-----------###########-------
-----------##############--------
-----------################--------
-----------###################-------
------------####################---------
------------#####################--------
------------#######################--------
------------#######################--------
----------########################--------
P ----------########################--------
----------########## ###########--------
-----------########## T ###########--------
-----------########## ###########--------
-----------########################--------
----------#######################--------
---------#######################-------
----------#####################--------
--------####################-------
--------##################-------
-------################------
------#############-----
----#########----
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:36 UTC
Date: 2020/03/20 19:17:36 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T030.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:30.00 39.1112 -119.7361 001
Depth = 8.0 (km)
Mw = 4.40
Mo = 5.04x10^22 (dyne x cm)
Percent Double Couple = 100 %
Percent CLVD = 0 %
no ISO calculated
Epsilon=0.00
Percent Variance Reduction = 18.47 %
Total Fit = 12.81
Major Double Couple
strike dip rake
Nodal Plane 1: 352 37 71
Nodal Plane 2: 195 55 104
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 4.57 Mtt= 0.17 Mff= -4.75
Mrt= -1.10 Mrf= -1.50 Mtf= -0.28 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.17 0.28 -1.10
0.28 -4.75 1.50
-1.10 1.50 4.57
Eigenvalues:
T-axis eigenvalue= 5.04
N-axis eigenvalue= -0.01
P-axis eigenvalue= -5.03
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 5.04 trend=146 plunge=75
N-axis ev= 0.00 trend=7 plunge=11
P-axis ev=-5.04 trend=275 plunge=9
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
-----#########---
-------------####--------
-------------########--------
--------------###########--------
-------------##############--------
-------------#################-------
--------------##################---------
-------------####################--------
-------------######################--------
------------######################--------
P -----------########################-------
-----------########################-------
------------########################-------
-----------########## ############-------
-----------########## T ############-------
-----------########## ############-------
----------########################-------
---------########################------
----------######################-------
--------#####################------
-------####################------
------##################-----
-----###############----
--############---
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:34 UTC
Date: 2020/03/20 19:17:34 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T031.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:31.00 39.1112 -119.7361 001
Depth = 8.0 (km)
Mw = 4.31
Mo = 3.64x10^22 (dyne x cm)
Percent Double Couple = 99 %
Percent CLVD = 1 %
no ISO calculated
Epsilon=-0.01
Percent Variance Reduction = 12.01 %
Total Fit = 5.27
Major Double Couple
strike dip rake
Nodal Plane 1: 346 32 57
Nodal Plane 2: 203 64 109
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 2.71 Mtt= 0.35 Mff= -3.06
Mrt= -1.28 Mrf= -1.75 Mtf= -0.27 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.35 0.27 -1.28
0.27 -3.06 1.75
-1.28 1.75 2.71
Eigenvalues:
T-axis eigenvalue= 3.62
N-axis eigenvalue= 0.02
P-axis eigenvalue= -3.64
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 3.62 trend=146 plunge=66
N-axis ev= 0.00 trend=15 plunge=17
P-axis ev=-3.62 trend=280 plunge=17
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
---###############
-------------########----
-----------------#####-------
-----------------########--------
-----------------###########-------
----------------##############-------
-----------------################--------
----------------##################-------
----------------####################-------
--------------#####################-------
P -------------#######################------
-------------#######################------
-------------########################------
-------------########################------
------------#########################------
------------########### ###########------
-----------########### T ###########-----
---------############ ##########-----
---------#########################-----
-------########################----
-------######################----
-----####################----
---###################--
################-
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:33 UTC
Date: 2020/03/20 19:17:33 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

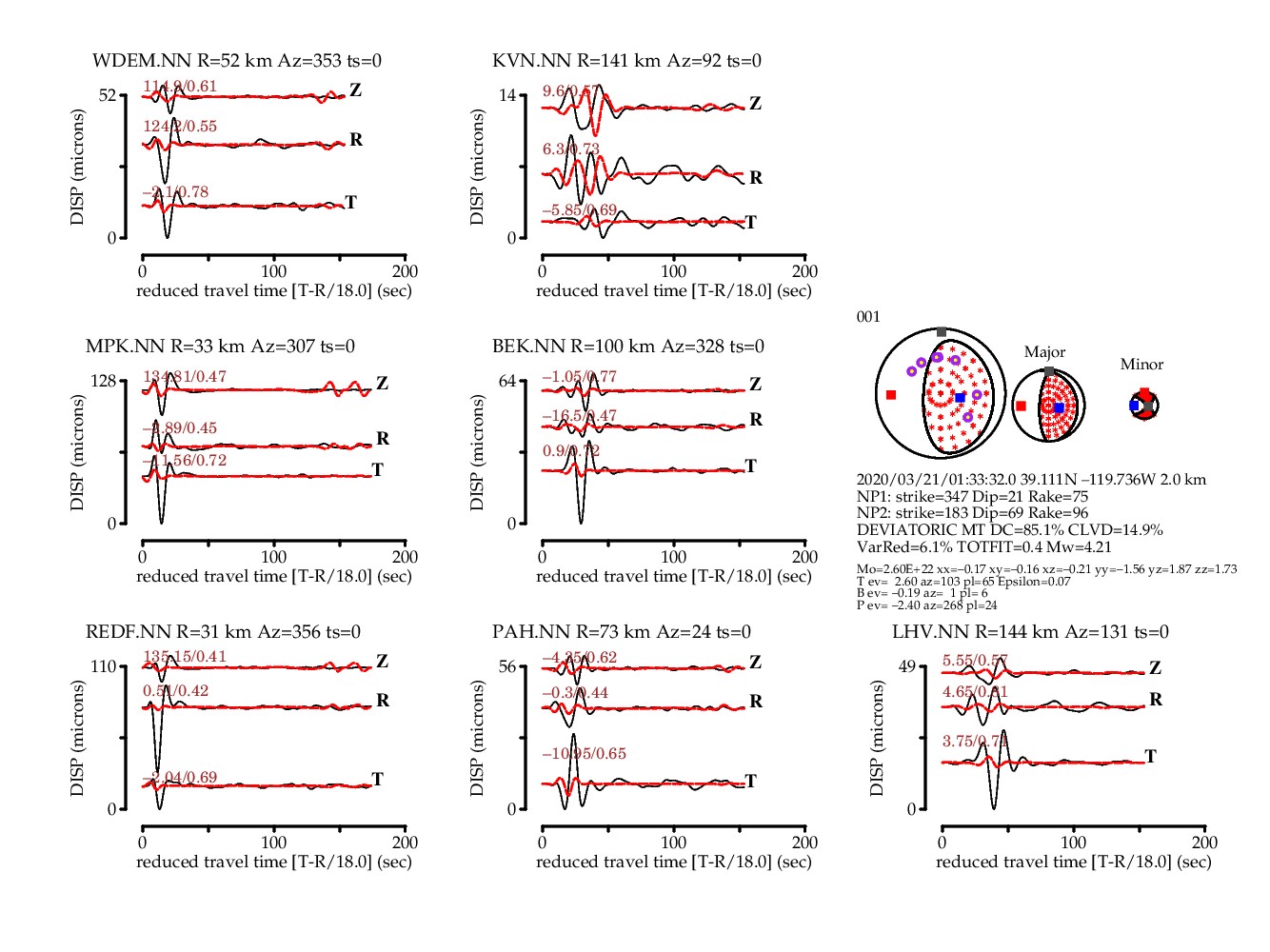

Solution Name: T032.0sec_Z002.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:32.00 39.1112 -119.7361 001
Depth = 2.0 (km)
Mw = 4.21
Mo = 2.60x10^22 (dyne x cm)
Percent Double Couple = 85 %
Percent CLVD = 15 %
no ISO calculated
Epsilon=0.07
Percent Variance Reduction = 6.09 %
Total Fit = 0.38
Major Double Couple
strike dip rake
Nodal Plane 1: 347 21 75
Nodal Plane 2: 183 69 96
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 1.73 Mtt= -0.17 Mff= -1.56
Mrt= -0.21 Mrf= -1.87 Mtf= 0.16 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-0.17 -0.16 -0.21
-0.16 -1.56 1.87
-0.21 1.87 1.73
Eigenvalues:
T-axis eigenvalue= 2.60
N-axis eigenvalue= -0.19
P-axis eigenvalue= -2.40
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 2.60 trend=103 plunge=65
N-axis ev= 0.00 trend=1 plunge=6
P-axis ev=-2.60 trend=268 plunge=24
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
---#########-----
-----------########------
------------############-----
-------------###############-----
--------------################-----
--------------###################----
----------------####################-----
----------------#####################----
----------------######################-----
----------------#######################----
----------------#######################----
--------------#######################----
P --------------########## ##########----
--------------########## T ##########----
----------------########## ##########----
----------------#######################----
---------------#######################---
--------------######################---
--------------#####################----
-------------###################---
------------##################---
-----------###############---
---------##############-
------##########-
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:32 UTC
Date: 2020/03/20 19:17:32 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T033.0sec_Z018.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:33.00 39.1112 -119.7361 001
Depth = 18.0 (km)
Mw = 4.44
Mo = 5.79x10^22 (dyne x cm)
Percent Double Couple = 99 %
Percent CLVD = 1 %
no ISO calculated
Epsilon=0.01
Percent Variance Reduction = 22.15 %
Total Fit = 8.95
Major Double Couple
strike dip rake
Nodal Plane 1: 178 40 -99
Nodal Plane 2: 10 51 -82
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -5.57 Mtt= -0.07 Mff= 5.64
Mrt= -0.68 Mrf= -1.07 Mtf= 0.45 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-0.07 -0.45 -0.68
-0.45 5.64 1.07
-0.68 1.07 -5.57
Eigenvalues:
T-axis eigenvalue= 5.79
N-axis eigenvalue= -0.04
P-axis eigenvalue= -5.74
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 5.79 trend=95 plunge=6
N-axis ev= 0.00 trend=186 plunge=6
P-axis ev=-5.79 trend=322 plunge=82
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
########----######
#########---------#######
#########------------########
#########---------------#########
#########-----------------##########
#########-------------------##########
-#########--------------------###########
#########---------------------###########
##########----------------------###########
##########------ -------------###########
#########------- P -------------############
#########------- -------------############
#########----------------------######## ##
#########----------------------######## T ##
##########--------------------######### #
##########--------------------#############
##########------------------#############
#########-----------------##############
##########---------------##############
##########------------##############
##########----------#############
##########------#############
##########-##############
##################
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:31 UTC
Date: 2020/03/20 19:17:31 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T034.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:34.00 39.1112 -119.7361 001
Depth = 8.0 (km)
Mw = 4.48
Mo = 6.49x10^22 (dyne x cm)
Percent Double Couple = 85 %
Percent CLVD = 15 %
no ISO calculated
Epsilon=0.07
Percent Variance Reduction = 29.62 %
Total Fit = 1.90
Major Double Couple
strike dip rake
Nodal Plane 1: 190 43 -80
Nodal Plane 2: 356 48 -99
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -5.90 Mtt= -0.53 Mff= 6.44
Mrt= 0.64 Mrf= -0.64 Mtf= 0.40 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-0.53 -0.40 0.64
-0.40 6.44 0.64
0.64 0.64 -5.90
Eigenvalues:
T-axis eigenvalue= 6.49
N-axis eigenvalue= -0.47
P-axis eigenvalue= -6.02
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 6.49 trend=93 plunge=3
N-axis ev= 0.00 trend=3 plunge=7
P-axis ev=-6.49 trend=205 plunge=82
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
##################
#############-###########
############------###########
############----------###########
###########-------------############
###########---------------############
-###########-----------------############
###########------------------############
###########--------------------############
###########--------------------############
##########----------------------############
##########----------------------####### ##
##########------- ------------####### T ##
##########------- P ------------####### ##
##########------- ------------###########
##########----------------------###########
#########---------------------###########
#########--------------------###########
#########-------------------###########
########-----------------###########
########---------------##########
########------------#########
#######---------#########
#####-----########
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:30 UTC
Date: 2020/03/20 19:17:30 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T035.0sec_Z002.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:35.00 39.1112 -119.7361 001
Depth = 2.0 (km)
Mw = 4.36
Mo = 4.25x10^22 (dyne x cm)
Percent Double Couple = 88 %
Percent CLVD = 12 %
no ISO calculated
Epsilon=-0.06
Percent Variance Reduction = 37.63 %
Total Fit = 2.81
Major Double Couple
strike dip rake
Nodal Plane 1: 231 42 3
Nodal Plane 2: 139 88 131
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.24 Mtt= -2.80 Mff= 2.56
Mrt= 2.10 Mrf= -2.24 Mtf= 0.58 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-2.80 -0.58 2.10
-0.58 2.56 2.24
2.10 2.24 0.24
Eigenvalues:
T-axis eigenvalue= 3.99
N-axis eigenvalue= 0.26
P-axis eigenvalue= -4.25
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 3.99 trend=83 plunge=34
N-axis ev= 0.00 trend=317 plunge=41
P-axis ev=-3.99 trend=196 plunge=30
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
-----------------
-------------------------
-----------------------------
####-------------###############-
#######-------######################
#########---##########################
-########################################
#########################################
###########---#############################
##########------################### #####
########---------################## T ######
#######------------################ ######
#######--------------#######################
######----------------######################
#####-------------------###################
#####--------------------##################
####----------------------###############
###------------------------#############
###-------------------------###########
#---------------------------########
--------- -----------------####
------- P -------------------
----- ----------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:50 UTC
Date: 2020/03/20 19:17:50 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T036.0sec_Z006.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:36.00 39.1112 -119.7361 001
Depth = 6.0 (km)
Mw = 4.53
Mo = 7.73x10^22 (dyne x cm)
Percent Double Couple = 86 %
Percent CLVD = 14 %
no ISO calculated
Epsilon=0.07
Percent Variance Reduction = 72.49 %
Total Fit = 4.99
Major Double Couple
strike dip rake
Nodal Plane 1: 335 51 -137
Nodal Plane 2: 214 58 -48
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -4.99 Mtt= -2.62 Mff= 7.61
Mrt= 3.18 Mrf= 0.50 Mtf= 0.84 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-2.62 -0.84 3.18
-0.84 7.61 -0.50
3.18 -0.50 -4.99
Eigenvalues:
T-axis eigenvalue= 7.73
N-axis eigenvalue= -0.52
P-axis eigenvalue= -7.20
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 7.73 trend=276 plunge=4
N-axis ev= 0.00 trend=8 plunge=35
P-axis ev=-7.73 trend=180 plunge=55
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
-----------------
#########----------------
##############------#########
#################################
####################################
###################---################
-##################------################
#################----------##############
#################------------##############
##############---------------#############
T #############-----------------#############
############------------------#############
############--------------------############
###########----------------------###########
###########----------------------##########
##########-----------------------##########
#########-----------------------#########
#######-------- -------------#########
#######-------- P -------------########
#####-------- -------------#######
#####----------------------######
###---------------------#####
----------------------###
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:27 UTC
Date: 2020/03/20 19:17:27 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T037.0sec_Z002.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:37.00 39.1112 -119.7361 001
Depth = 2.0 (km)
Mw = 4.37
Mo = 4.47x10^22 (dyne x cm)
Percent Double Couple = 95 %
Percent CLVD = 5 %
no ISO calculated
Epsilon=0.03
Percent Variance Reduction = 54.58 %
Total Fit = 8.95
Major Double Couple
strike dip rake
Nodal Plane 1: 325 64 -157
Nodal Plane 2: 224 69 -28
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.42 Mtt= -2.99 Mff= 4.41
Mrt= 1.99 Mrf= 0.18 Mtf= 0.56 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-2.99 -0.56 1.99
-0.56 4.41 -0.18
1.99 -0.18 -1.42
Eigenvalues:
T-axis eigenvalue= 4.47
N-axis eigenvalue= -0.11
P-axis eigenvalue= -4.36
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 4.47 trend=275 plunge=3
N-axis ev= 0.00 trend=10 plunge=56
P-axis ev=-4.47 trend=183 plunge=34
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
-----------------
-------------------------
######-----------------------
############---------------######
###############---------############
###################---################
-########################################
#########################################
######################--###################
###################------#################
T #################---------#################
###############------------################
###############--------------###############
#############-----------------##############
############-------------------############
###########---------------------###########
#########-----------------------#########
#######------------------------#########
######-------------------------########
####--------------------------######
##---------- --------------####
---------- P --------------##
-------- -------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:26 UTC
Date: 2020/03/20 19:17:26 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T038.0sec_Z022.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:38.00 39.1112 -119.7361 001
Depth = 22.0 (km)
Mw = 4.43
Mo = 5.49x10^22 (dyne x cm)
Percent Double Couple = 100 %
Percent CLVD = 0 %
no ISO calculated
Epsilon=-0.00
Percent Variance Reduction = 35.16 %
Total Fit = 29.36
Major Double Couple
strike dip rake
Nodal Plane 1: 318 59 168
Nodal Plane 2: 54 80 32
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 1.02 Mtt= -5.04 Mff= 4.02
Mrt= 1.68 Mrf= 2.26 Mtf= 0.94 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-5.04 -0.94 1.68
-0.94 4.02 -2.26
1.68 -2.26 1.02
Eigenvalues:
T-axis eigenvalue= 5.49
N-axis eigenvalue= 0.01
P-axis eigenvalue= -5.49
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 5.49 trend=280 plunge=29
N-axis ev= 0.00 trend=70 plunge=57
P-axis ev=-5.49 trend=182 plunge=14
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
-----------------
-------------------------
-----------------------------
##########-----------------------
###############--------------------
###################---------------####
-######################------------######
#########################--------########
############################----###########
###########################-#############
T ##########################################
###########################-##############
###########################-----############
########################---------###########
######################-----------##########
###################---------------#########
###############-------------------#######
###########----------------------#######
#######---------------------------#####
--------------------------------####
-------------------------------##
-----------------------------
-------- -------------
---- P ----------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:25 UTC
Date: 2020/03/20 19:17:25 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

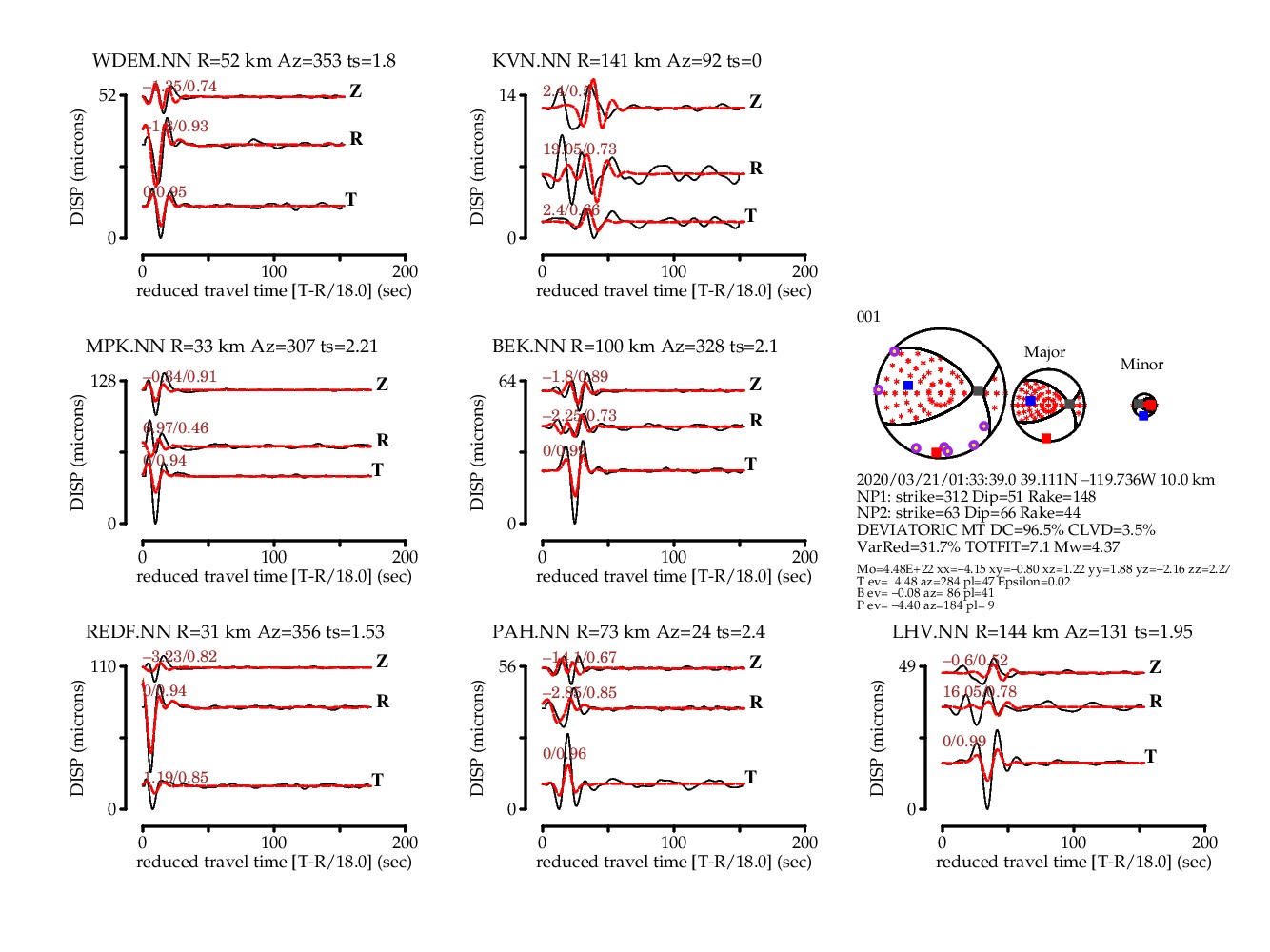

Solution Name: T039.0sec_Z010.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:39.00 39.1112 -119.7361 001
Depth = 10.0 (km)
Mw = 4.37
Mo = 4.48x10^22 (dyne x cm)
Percent Double Couple = 97 %
Percent CLVD = 3 %
no ISO calculated
Epsilon=0.02
Percent Variance Reduction = 31.70 %
Total Fit = 7.05
Major Double Couple
strike dip rake
Nodal Plane 1: 312 51 148
Nodal Plane 2: 63 66 44
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 2.27 Mtt= -4.15 Mff= 1.88
Mrt= 1.22 Mrf= 2.16 Mtf= 0.80 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-4.15 -0.80 1.22
-0.80 1.88 -2.16
1.22 -2.16 2.27
Eigenvalues:
T-axis eigenvalue= 4.48
N-axis eigenvalue= -0.08
P-axis eigenvalue= -4.40
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 4.48 trend=284 plunge=47
N-axis ev= 0.00 trend=86 plunge=41
P-axis ev=-4.48 trend=184 plunge=9
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
-----------------
-------------------------
-----------------------------
-##########----------------------
#################------------------
#####################----------------
-#########################-------------##
############################----------###
###############################-------#####
##### ########################-----######
##### T ##########################-#########
##### ####################################
############################################
###############################----#########
############################--------#######
#########################------------######
####################----------------#####
##############---------------------#####
-----------------------------------####
---------------------------------###
---------------------------------
-----------------------------
-------- -------------
---- P ----------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:24 UTC
Date: 2020/03/20 19:17:24 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T040.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:40.00 39.1112 -119.7361 001
Depth = 4.0 (km)
Mw = 4.26
Mo = 3.02x10^22 (dyne x cm)
Percent Double Couple = 90 %
Percent CLVD = 10 %
no ISO calculated
Epsilon=0.05
Percent Variance Reduction = 7.31 %
Total Fit = 0.64
Major Double Couple
strike dip rake
Nodal Plane 1: 40 18 -40
Nodal Plane 2: 169 79 -104
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.05 Mtt= -0.36 Mff= 1.41
Mrt= -0.60 Mrf= 2.56 Mtf= 0.39 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-0.36 -0.39 -0.60
-0.39 1.41 -2.56
-0.60 -2.56 -1.05
Eigenvalues:
T-axis eigenvalue= 3.02
N-axis eigenvalue= -0.16
P-axis eigenvalue= -2.86
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 3.02 trend=270 plunge=32
N-axis ev= 0.00 trend=171 plunge=14
P-axis ev=-3.02 trend=62 plunge=54
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
#####------------
#########----------------
##########------------------#
############-------------------##
#############--------------------###
##############---------------------###
-################---------------------###
#################------------ ------###
##################------------ P -------###
##################------------ -------###
#################---------------------####
T #################---------------------####
#################---------------------####
####################-------------------#####
####################-------------------####
####################------------------#####
####################----------------#####
####################--------------######
####################------------#######
###################---------########
###################------########
#################---#########
-########################
------------######
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:23 UTC
Date: 2020/03/20 19:17:23 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

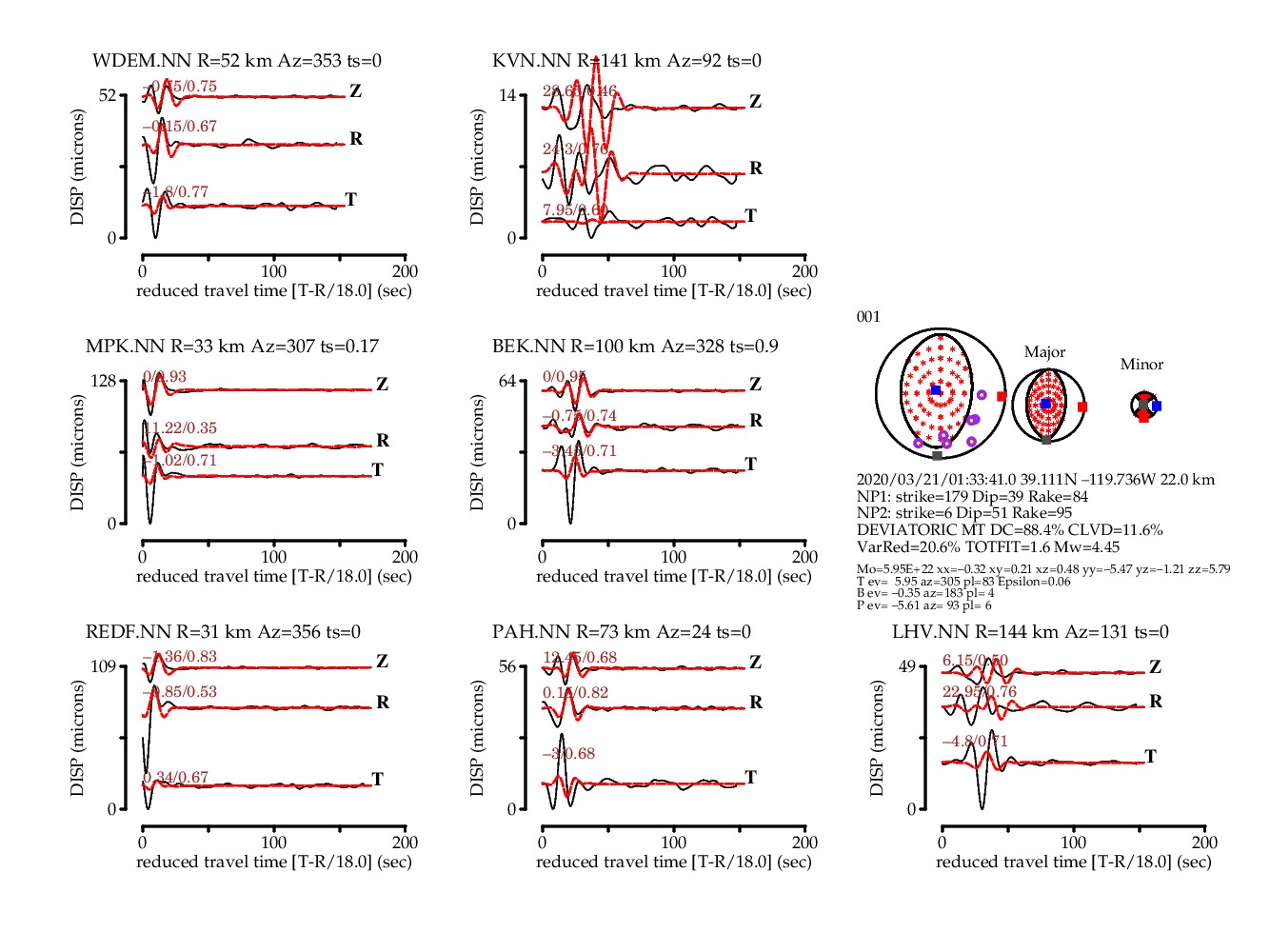

Solution Name: T041.0sec_Z022.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:41.00 39.1112 -119.7361 001
Depth = 22.0 (km)
Mw = 4.45
Mo = 5.95x10^22 (dyne x cm)
Percent Double Couple = 88 %
Percent CLVD = 12 %
no ISO calculated
Epsilon=0.06
Percent Variance Reduction = 20.58 %
Total Fit = 1.63
Major Double Couple
strike dip rake
Nodal Plane 1: 179 39 84
Nodal Plane 2: 6 51 95
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 5.79 Mtt= -0.32 Mff= -5.47
Mrt= 0.48 Mrf= 1.21 Mtf= -0.21 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-0.32 0.21 0.48
0.21 -5.47 -1.21
0.48 -1.21 5.79
Eigenvalues:
T-axis eigenvalue= 5.95
N-axis eigenvalue= -0.35
P-axis eigenvalue= -5.61
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 5.95 trend=305 plunge=83
N-axis ev= 0.00 trend=183 plunge=4
P-axis ev=-5.95 trend=93 plunge=6
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
-----########----
------#############------
-------###############-------
-------##################--------
-------###################---------
-------#####################---------
--------#######################----------
--------#######################----------
---------#######################-----------
--------########################-----------
--------######## #############-----------
--------######## T #############------- -
--------######## #############------- P -
--------########################------- -
--------########################-----------
---------######################------------
--------######################-----------
--------####################-----------
--------###################------------
-------#################-----------
--------##############-----------
-------############----------
-------########---------
-----####--------
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:22 UTC
Date: 2020/03/20 19:17:22 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

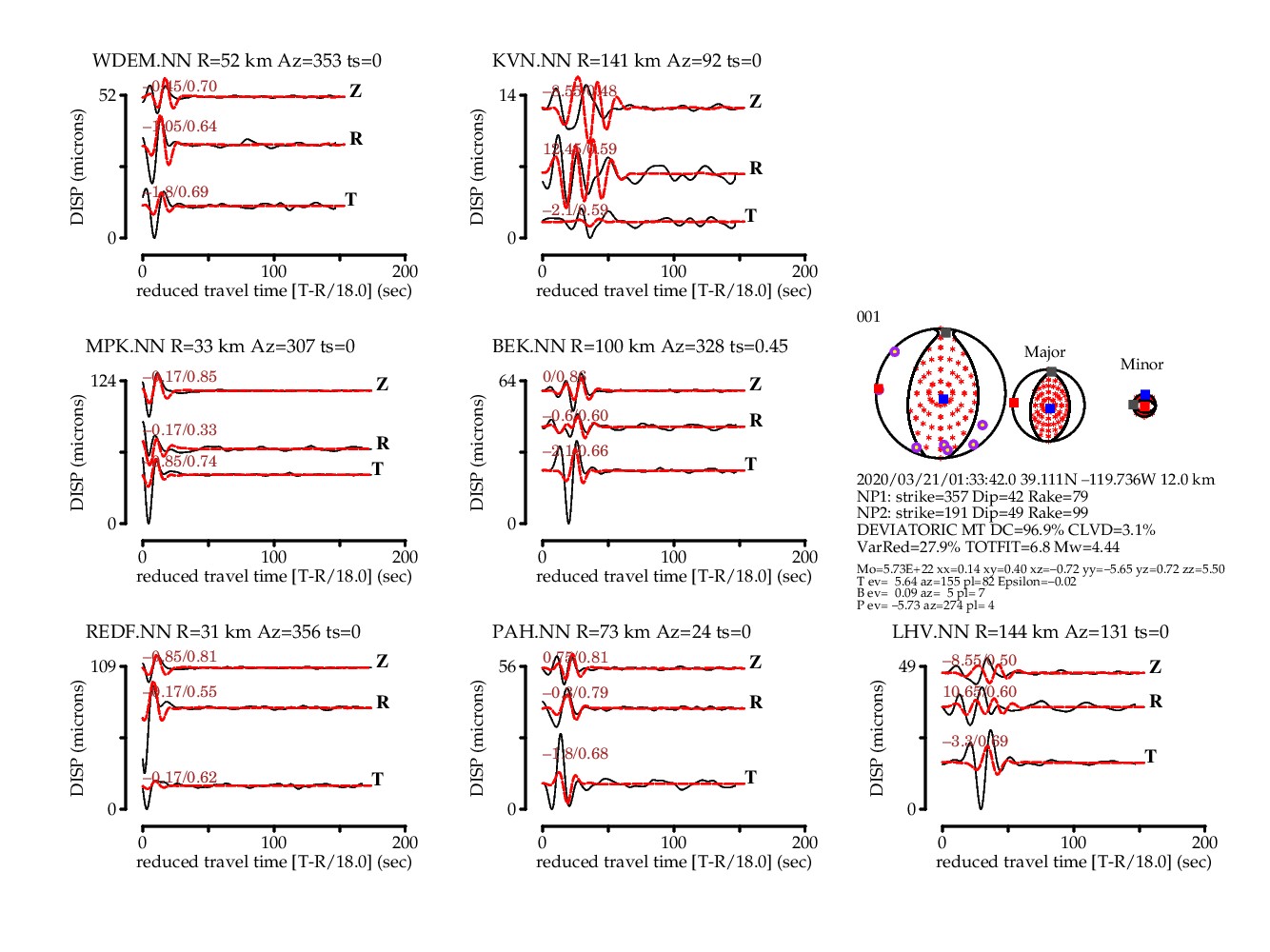

Solution Name: T042.0sec_Z012.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:42.00 39.1112 -119.7361 001
Depth = 12.0 (km)
Mw = 4.44
Mo = 5.73x10^22 (dyne x cm)
Percent Double Couple = 97 %
Percent CLVD = 3 %
no ISO calculated
Epsilon=-0.02
Percent Variance Reduction = 27.95 %
Total Fit = 6.77
Major Double Couple
strike dip rake
Nodal Plane 1: 357 42 79
Nodal Plane 2: 191 49 99
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 5.50 Mtt= 0.14 Mff= -5.65
Mrt= -0.72 Mrf= -0.72 Mtf= -0.40 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.14 0.40 -0.72
0.40 -5.65 0.72
-0.72 0.72 5.50
Eigenvalues:
T-axis eigenvalue= 5.64
N-axis eigenvalue= 0.09
P-axis eigenvalue= -5.73
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 5.64 trend=155 plunge=82
N-axis ev= 0.00 trend=5 plunge=7
P-axis ev=-5.64 trend=274 plunge=4
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
-------######----
-----------#######-------
-----------##########--------
-----------##############--------
-----------################--------
-----------##################--------
------------####################---------
-----------#####################---------
------------######################---------
-----------#######################---------
----------#######################---------
P ---------#########################--------
---------######### #############--------
----------######### T #############--------
----------######### ############---------
----------########################---------
---------########################--------
---------######################--------
---------######################--------
--------####################-------
-------###################-------
------################-------
-----##############-----
---##########----
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:20 UTC
Date: 2020/03/20 19:17:20 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T043.0sec_Z006.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/03/21 (081) 01:33:43.00 39.1112 -119.7361 001
Depth = 6.0 (km)
Mw = 4.37
Mo = 4.50x10^22 (dyne x cm)
Percent Double Couple = 88 %
Percent CLVD = 12 %
no ISO calculated
Epsilon=0.06
Percent Variance Reduction = 31.66 %
Total Fit = 2.42
Major Double Couple
strike dip rake
Nodal Plane 1: 329 44 27
Nodal Plane 2: 219 72 131
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 1.94 Mtt= 1.80 Mff= -3.75
Mrt= -2.55 Mrf= -1.39 Mtf= -0.34 EXP=22
Moment Tensor Elements: Cartesian Coordinates
1.80 0.34 -2.55
0.34 -3.75 1.39
-2.55 1.39 1.94
Eigenvalues:
T-axis eigenvalue= 4.50
N-axis eigenvalue= -0.27
P-axis eigenvalue= -4.22
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 4.50 trend=172 plunge=47
N-axis ev= 0.00 trend=24 plunge=39
P-axis ev=-4.50 trend=280 plunge=16
Maximum Azmuithal Gap=176 Distance to Nearest Station= 31.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=7 (defining only)
REDF.NN.D MPK.NN.D WDEM.NN.D PAH.NN.D
BEK.NN.D KVN.NN.D LHV.NN.D
##################
-########################
----------###################
----------------#############----
--------------------######---------
----------------------####-----------
----------------------#######------------
--------------------##########-----------
-------------------############-----------
P -----------------###############----------
---------------##################---------
---------------####################--------
--------------#####################--------
-------------#######################-------
------------########################-------
-----------#########################-------
---------##########################------
-------###########################-----
------############################-----
----############# ###########----
---############# T ###########---
############## ##########--
########################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
REDF.NN (D) Y 31.0 356 176 0.020 0.100 REDF.NN.wus.glib
MPK.NN (D) Y 32.9 307 127 0.020 0.100 MPK.NN.wus.glib
WDEM.NN (D) Y 52.5 353 173 0.020 0.100 WDEM.NN.wus.glib
PAH.NN (D) Y 72.9 24 204 0.020 0.100 PAH.NN.wus.glib
BEK.NN (D) Y 99.9 328 147 0.020 0.100 BEK.NN.wus.glib
KVN.NN (D) Y 141.3 92 273 0.020 0.080 KVN.NN.wus.glib
LHV.NN (D) Y 143.7 131 312 0.020 0.080 LHV.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/03/21 02:17:19 UTC
Date: 2020/03/20 19:17:19 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Event ID: mw
Origin ID: 001
Date:

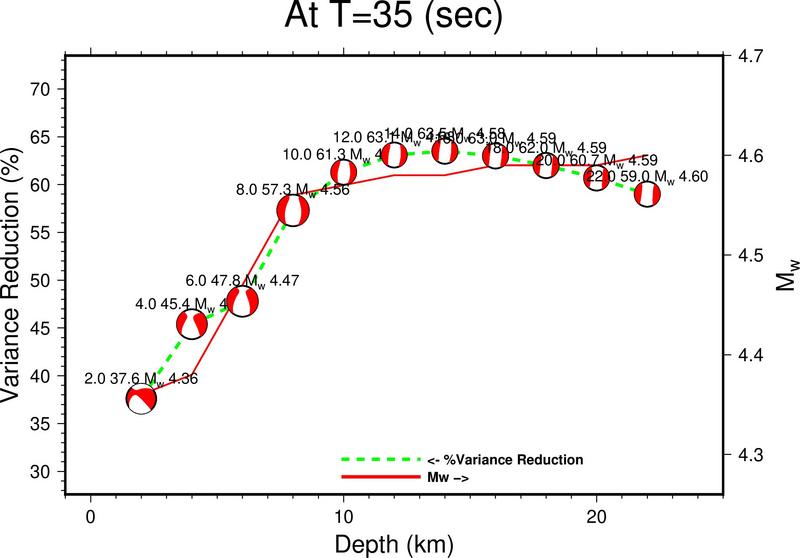

Filename: plotz.jpg
Event ID: mw
Origin ID: 001
Date:

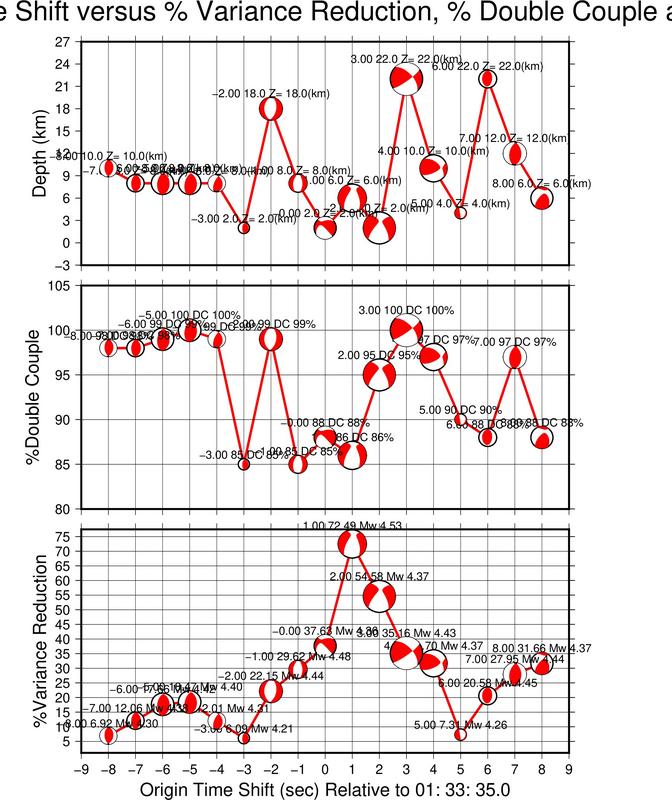

Filename: results.5.jpg
