Event ID: mw
Origin ID: 001
Date:
Filename: gmtmap.jpg

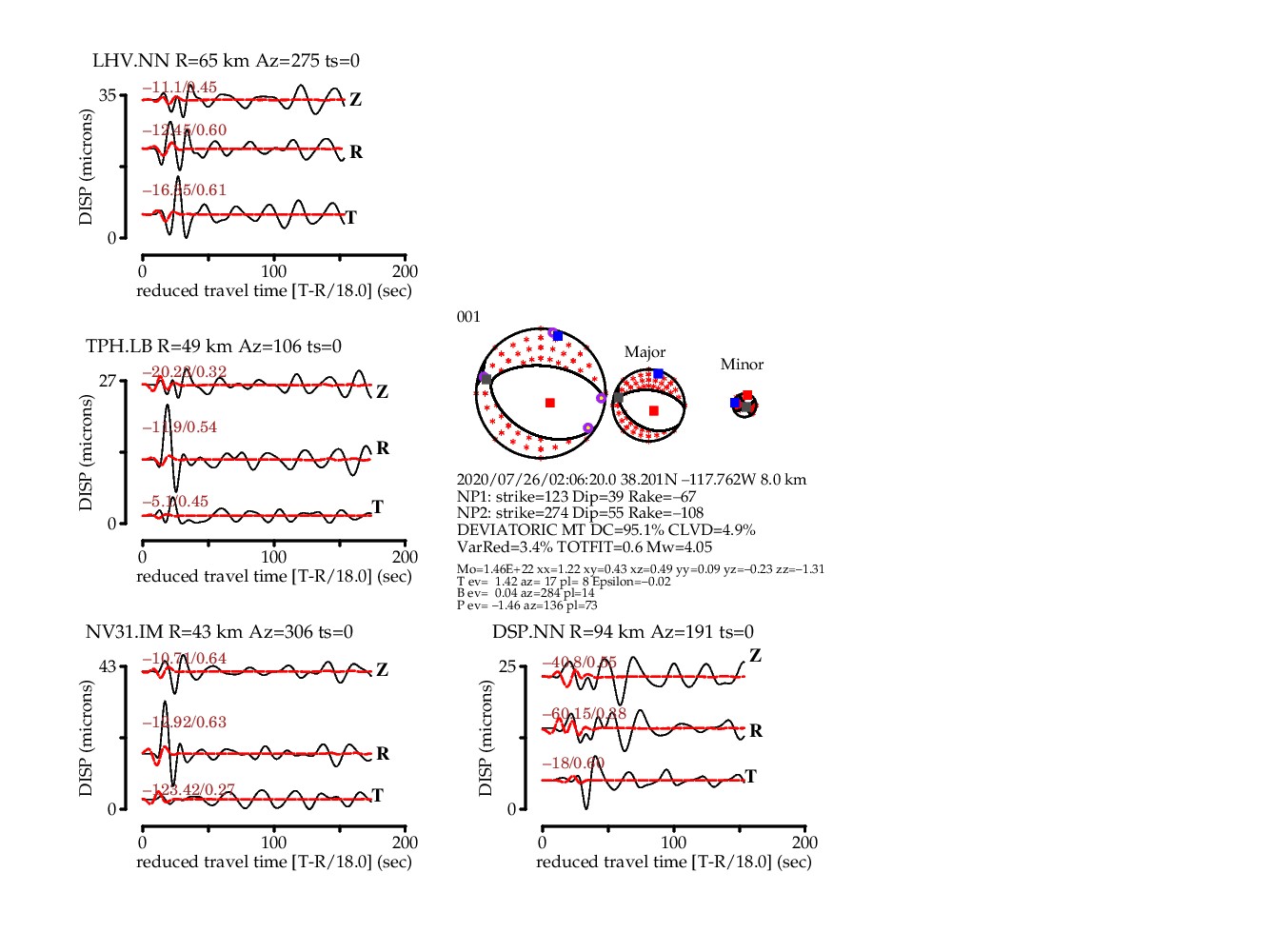

Solution Name: T020.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:20.00 38.2013 -117.7618 001
Depth = 8.0 (km)
Mw = 4.05
Mo = 1.46x10^22 (dyne x cm)
Percent Double Couple = 95 %
Percent CLVD = 5 %
no ISO calculated
Epsilon=-0.02
Percent Variance Reduction = 3.35 %
Total Fit = 0.57
Major Double Couple
strike dip rake
Nodal Plane 1: 123 39 -67
Nodal Plane 2: 274 55 -108
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -1.31 Mtt= 1.22 Mff= 0.09
Mrt= 0.49 Mrf= 0.23 Mtf= -0.43 EXP=22
Moment Tensor Elements: Cartesian Coordinates
1.22 0.43 0.49
0.43 0.09 -0.23
0.49 -0.23 -1.31
Eigenvalues:
T-axis eigenvalue= 1.42
N-axis eigenvalue= 0.04
P-axis eigenvalue= -1.46
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.42 trend=17 plunge=8
N-axis ev= 0.00 trend=284 plunge=14
P-axis ev=-1.42 trend=136 plunge=73
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
############ T ###
################ ######
#############################
#################################
####################################
######################################
--#######################################
--############---------##################
---######----------------------############
--###------------------------------########
####----------------------------------######
#####-----------------------------------####
######------------------------------------##
#######---------------- -----------------
########--------------- P -----------------
##########------------- -----------------
###########------------------------------
############---------------------------
###############---------------------##-
##################------------######
#################################
#############################
#########################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:41 UTC
Date: 2020/07/25 19:55:41 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T021.0sec_Z010.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:21.00 38.2013 -117.7618 001
Depth = 10.0 (km)
Mw = 3.87
Mo = 7.81x10^21 (dyne x cm)
Percent Double Couple = 90 %
Percent CLVD = 10 %
no ISO calculated
Epsilon=-0.05
Percent Variance Reduction = 2.80 %
Total Fit = 0.26
Major Double Couple
strike dip rake
Nodal Plane 1: 160 77 -7
Nodal Plane 2: 251 83 -167
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.04 Mtt= 4.65 Mff= -4.62
Mrt= 1.29 Mrf= 1.47 Mtf= -5.73 EXP=21
Moment Tensor Elements: Cartesian Coordinates
4.65 5.73 1.29
5.73 -4.62 -1.47
1.29 -1.47 -0.04
Eigenvalues:
T-axis eigenvalue= 7.43
N-axis eigenvalue= 0.38
P-axis eigenvalue= -7.81
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 7.43 trend=25 plunge=4
N-axis ev= 0.00 trend=278 plunge=76
P-axis ev=-7.43 trend=116 plunge=14
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
-##############
-----############## T ###
-------############## #####
---------########################
----------##########################
-----------###########################
--------------###########################
--------------###########################
---------------############################
----------------##################---------
----------------###########----------------
----------------######---------------------
------------#######------------------------
--------############-----------------------
----#################----------------------
-####################----------------------
#####################--------------- --
#####################-------------- P -
######################------------- -
#####################--------------
#####################------------
#####################--------
####################----
################-
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:41 UTC
Date: 2020/07/25 19:55:41 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

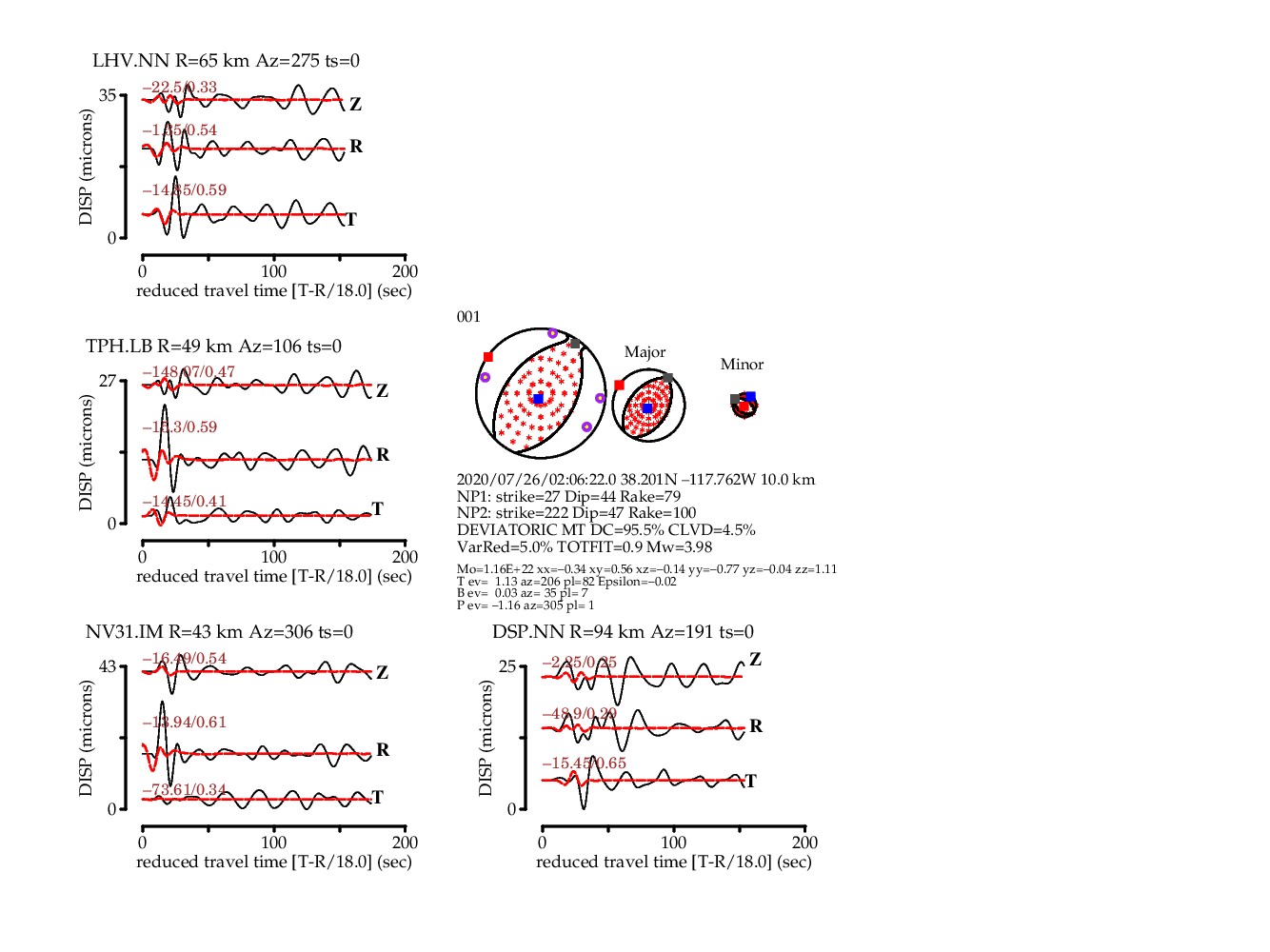

Solution Name: T022.0sec_Z010.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:22.00 38.2013 -117.7618 001
Depth = 10.0 (km)
Mw = 3.98
Mo = 1.16x10^22 (dyne x cm)
Percent Double Couple = 95 %
Percent CLVD = 5 %
no ISO calculated
Epsilon=-0.02
Percent Variance Reduction = 5.01 %
Total Fit = 0.91
Major Double Couple
strike dip rake
Nodal Plane 1: 27 44 79
Nodal Plane 2: 222 47 100
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 1.11 Mtt= -0.34 Mff= -0.77
Mrt= -0.14 Mrf= 0.04 Mtf= -0.56 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-0.34 0.56 -0.14
0.56 -0.77 -0.04
-0.14 -0.04 1.11
Eigenvalues:
T-axis eigenvalue= 1.13
N-axis eigenvalue= 0.03
P-axis eigenvalue= -1.16
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.13 trend=206 plunge=82
N-axis ev= 0.00 trend=35 plunge=7
P-axis ev=-1.13 trend=305 plunge=1
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
-----------------
----------------------###
---------------------########
-----------------############----
---------------################----
P ------------###################-----
----------######################------
------------#######################------
-----------#########################-------
----------##########################-------
---------##########################--------
--------###########################--------
-------########## ###############--------
-------########## T ##############---------
------########### #############----------
------##########################-----------
-----##########################----------
----########################-----------
----#######################------------
--#####################------------
-###################-------------
###############--------------
##########--------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:40 UTC
Date: 2020/07/25 19:55:40 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T023.0sec_Z006.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:23.00 38.2013 -117.7618 001
Depth = 6.0 (km)
Mw = 3.88
Mo = 8.20x10^21 (dyne x cm)
Percent Double Couple = 93 %
Percent CLVD = 7 %
no ISO calculated
Epsilon=-0.04
Percent Variance Reduction = 2.11 %
Total Fit = 0.26
Major Double Couple
strike dip rake
Nodal Plane 1: 42 33 67
Nodal Plane 2: 249 60 104
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 6.62 Mtt= -4.79 Mff= -1.82
Mrt= -4.00 Mrf= -0.57 Mtf= -3.70 EXP=21
Moment Tensor Elements: Cartesian Coordinates
-4.79 3.70 -4.00
3.70 -1.82 0.57
-4.00 0.57 6.62
Eigenvalues:
T-axis eigenvalue= 7.92
N-axis eigenvalue= 0.29
P-axis eigenvalue= -8.20
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 7.92 trend=192 plunge=71
N-axis ev= 0.00 trend=62 plunge=12
P-axis ev=-7.92 trend=329 plunge=14
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
-----------------
------------------------
P --------------------------
-- --------------------------##
--------------------------------####
----------------------------------####
-----------------------##################
------------------#######################
--------------#########################----
-----------############################----
---------##############################----
-------################################----
-----#################################-----
---###################################-----
--############### #################------
-################ T ################-------
################ ###############-------
###############################--------
##############################---------
##########################---------
######################-----------
################-------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:39 UTC
Date: 2020/07/25 19:55:39 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T024.0sec_Z014.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:24.00 38.2013 -117.7618 001
Depth = 14.0 (km)
Mw = 4.21
Mo = 2.55x10^22 (dyne x cm)
Percent Double Couple = 42 %
Percent CLVD = 58 %
no ISO calculated
Epsilon=0.29
Percent Variance Reduction = 13.41 %
Total Fit = 0.23
Major Double Couple
strike dip rake
Nodal Plane 1: 83 37 94
Nodal Plane 2: 258 53 87
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 2.45 Mtt= -1.69 Mff= -0.76
Mrt= -0.59 Mrf= -0.25 Mtf= -0.14 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-1.69 0.14 -0.59
0.14 -0.76 0.25
-0.59 0.25 2.45
Eigenvalues:
T-axis eigenvalue= 2.55
N-axis eigenvalue= -0.74
P-axis eigenvalue= -1.80
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 2.55 trend=152 plunge=81
N-axis ev= 0.00 trend=260 plunge=3
P-axis ev=-2.55 trend=350 plunge=8
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
- P -------------
----- -----------------
-----------------------------
---------------------------------
-----------------------------------
-------------------------------------
-----------------#################-------
------------##########################---
---------#################################-
-------####################################
-----#######################################
---########################################
--################# #####################
################### T ####################-
################### ###################--
--#####################################----
--###################################----
---###############################-----
------#########################--------
---------###############-----------
---------------------------------
-----------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:39 UTC
Date: 2020/07/25 19:55:39 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T025.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:25.00 38.2013 -117.7618 001
Depth = 4.0 (km)
Mw = 4.04
Mo = 1.45x10^22 (dyne x cm)
Percent Double Couple = 92 %
Percent CLVD = 8 %
no ISO calculated
Epsilon=-0.04
Percent Variance Reduction = 5.00 %
Total Fit = 0.55
Major Double Couple
strike dip rake
Nodal Plane 1: 107 35 105
Nodal Plane 2: 269 57 80
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 1.26 Mtt= -1.32 Mff= 0.06
Mrt= -0.56 Mrf= -0.13 Mtf= 0.19 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-1.32 -0.19 -0.56
-0.19 0.06 0.13
-0.56 0.13 1.26
Eigenvalues:
T-axis eigenvalue= 1.39
N-axis eigenvalue= 0.06
P-axis eigenvalue= -1.45
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.39 trend=149 plunge=76
N-axis ev= 0.00 trend=275 plunge=8
P-axis ev=-1.39 trend=6 plunge=11
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
-------- P ------
------------ ----------
-----------------------------
---------------------------------
-----------------------------------
-------------------------------------
-----------------------------------------
-----------#####################---------
#------##############################------
##--####################################---
##########################################-
############################################
#-##########################################
---################## ####################
----################# T ###################
-----################ ###################
------###################################
-------###############################-
---------###########################---
-----------####################----
-----------------######----------
-----------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:38 UTC
Date: 2020/07/25 19:55:38 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T026.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:26.00 38.2013 -117.7618 001
Depth = 4.0 (km)
Mw = 4.11
Mo = 1.82x10^22 (dyne x cm)
Percent Double Couple = 99 %
Percent CLVD = 1 %
no ISO calculated
Epsilon=-0.01
Percent Variance Reduction = 7.63 %
Total Fit = 3.25
Major Double Couple
strike dip rake
Nodal Plane 1: 120 37 110
Nodal Plane 2: 275 56 75
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 1.63 Mtt= -1.57 Mff= -0.06
Mrt= -0.65 Mrf= -0.21 Mtf= 0.51 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-1.57 -0.51 -0.65
-0.51 -0.06 0.21
-0.65 0.21 1.63
Eigenvalues:
T-axis eigenvalue= 1.81
N-axis eigenvalue= 0.01
P-axis eigenvalue= -1.82
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.81 trend=142 plunge=74
N-axis ev= 0.00 trend=283 plunge=12
P-axis ev=-1.81 trend=15 plunge=9
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
------------ P --
---------------- ------
-----------------------------
---------------------------------
-----------------------------------
-------------------------------------
-#-------------#####---------------------
##-----#######################-----------
###-###############################--------
######################################-----
##-######################################--
---#######################################-
----#######################################
-----################ ####################
------############### T ###################
-------############## ###################
--------#################################
---------###############################
-----------###########################-
------------######################-
-----------------###########-----
-----------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:38 UTC
Date: 2020/07/25 19:55:38 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

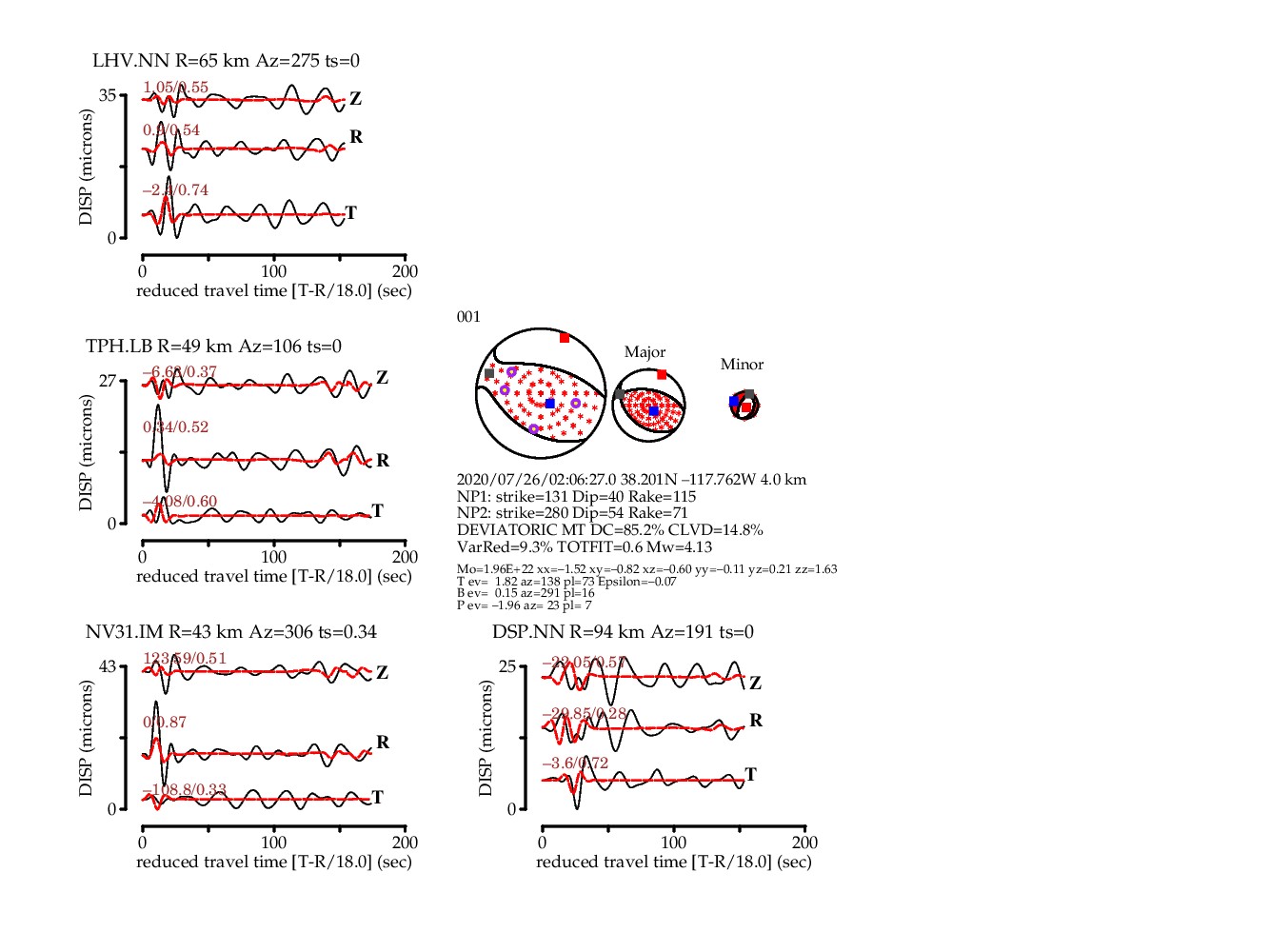

Solution Name: T027.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:27.00 38.2013 -117.7618 001
Depth = 4.0 (km)
Mw = 4.13
Mo = 1.96x10^22 (dyne x cm)
Percent Double Couple = 85 %
Percent CLVD = 15 %
no ISO calculated
Epsilon=-0.07
Percent Variance Reduction = 9.25 %
Total Fit = 0.58
Major Double Couple
strike dip rake
Nodal Plane 1: 131 40 115
Nodal Plane 2: 280 54 71
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 1.63 Mtt= -1.52 Mff= -0.11
Mrt= -0.60 Mrf= -0.21 Mtf= 0.82 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-1.52 -0.82 -0.60
-0.82 -0.11 0.21
-0.60 0.21 1.63
Eigenvalues:
T-axis eigenvalue= 1.82
N-axis eigenvalue= 0.15
P-axis eigenvalue= -1.96
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.82 trend=138 plunge=73
N-axis ev= 0.00 trend=291 plunge=16
P-axis ev=-1.82 trend=23 plunge=7
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
------------- -
----------------- P -----
------------------- -------
---------------------------------
##---------------------------------
##-----------------------------------
-###------#############------------------
#############################------------
##################################---------
###-#################################------
----###################################----
-----####################################--
------####################################-
------################# #################
-------################ T #################
---------############## #################
---------################################
----------##############################
------------###########################
-------------#######################
----------------################-
-----------------------------
------------------------
-----------------
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:37 UTC
Date: 2020/07/25 19:55:37 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

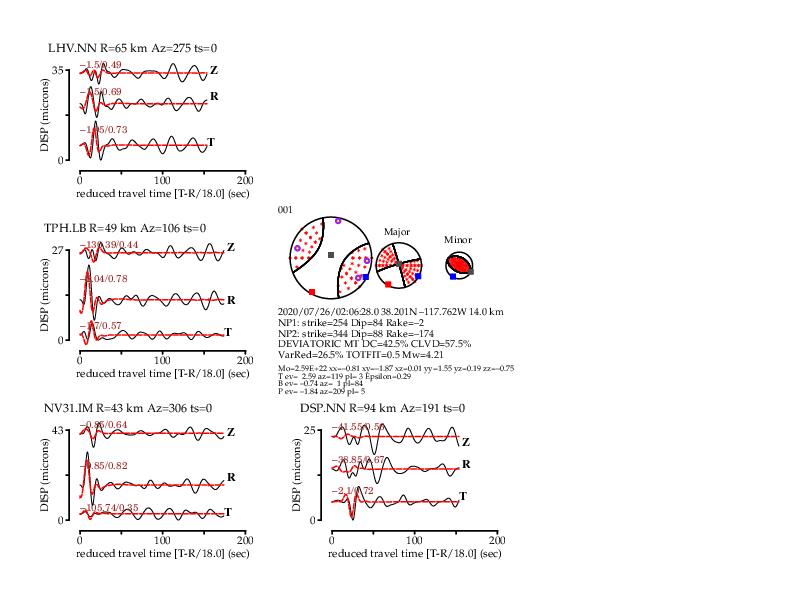

Solution Name: T028.0sec_Z014.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:28.00 38.2013 -117.7618 001
Depth = 14.0 (km)
Mw = 4.21
Mo = 2.59x10^22 (dyne x cm)
Percent Double Couple = 43 %
Percent CLVD = 57 %
no ISO calculated
Epsilon=0.29
Percent Variance Reduction = 26.46 %
Total Fit = 0.45
Major Double Couple
strike dip rake
Nodal Plane 1: 254 84 -2
Nodal Plane 2: 344 88 -174
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.75 Mtt= -0.81 Mff= 1.55
Mrt= 0.01 Mrf= -0.19 Mtf= 1.87 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-0.81 -1.87 0.01
-1.87 1.55 0.19
0.01 0.19 -0.75
Eigenvalues:
T-axis eigenvalue= 2.59
N-axis eigenvalue= -0.74
P-axis eigenvalue= -1.84
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 2.59 trend=119 plunge=3
N-axis ev= 0.00 trend=1 plunge=84
P-axis ev=-2.59 trend=209 plunge=5
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
###--------------
########-----------------
##########-------------------
#############--------------------
###############--------------------
################---------------------
-##################----------------------
###################----------------------
#####################-----------------#####
#####################--------##############
############################################
############################################
#################-----######################
###########-----------######################
######-----------------####################
##---------------------####################
-----------------------############# ##
----------------------############# T ##
-----------------------############ #
---------------------###############
---------------------############
- ---------------##########
P ----------------#######
--------------####
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:51 UTC
Date: 2020/07/25 19:55:51 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T029.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:29.00 38.2013 -117.7618 001
Depth = 8.0 (km)
Mw = 4.25
Mo = 2.93x10^22 (dyne x cm)
Percent Double Couple = 65 %
Percent CLVD = 35 %
no ISO calculated
Epsilon=0.18
Percent Variance Reduction = 28.60 %
Total Fit = 0.79
Major Double Couple
strike dip rake
Nodal Plane 1: 29 45 -94
Nodal Plane 2: 214 45 -86
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -2.40 Mtt= 0.42 Mff= 1.98
Mrt= 0.09 Mrf= -0.01 Mtf= 1.54 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.42 -1.54 0.09
-1.54 1.98 0.01
0.09 0.01 -2.40
Eigenvalues:
T-axis eigenvalue= 2.93
N-axis eigenvalue= -0.52
P-axis eigenvalue= -2.41
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 2.93 trend=302 plunge=0
N-axis ev= 0.00 trend=32 plunge=3
P-axis ev=-2.93 trend=203 plunge=87
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
##################
########################-
#######################---###
###################---------#####
################--------------######
T ###############-----------------######
##############-------------------#######
#############---------------------#######
#############----------------------########
############-----------------------########
###########-----------------------##########
##########------- --------------##########
#########-------- P -------------###########
########--------- -------------###########
########------------------------###########
########-----------------------############
#######---------------------#############
######--------------------##############
######------------------###############
####----------------################
####------------#################
###-------###################
--#######################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:36 UTC
Date: 2020/07/25 19:55:36 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

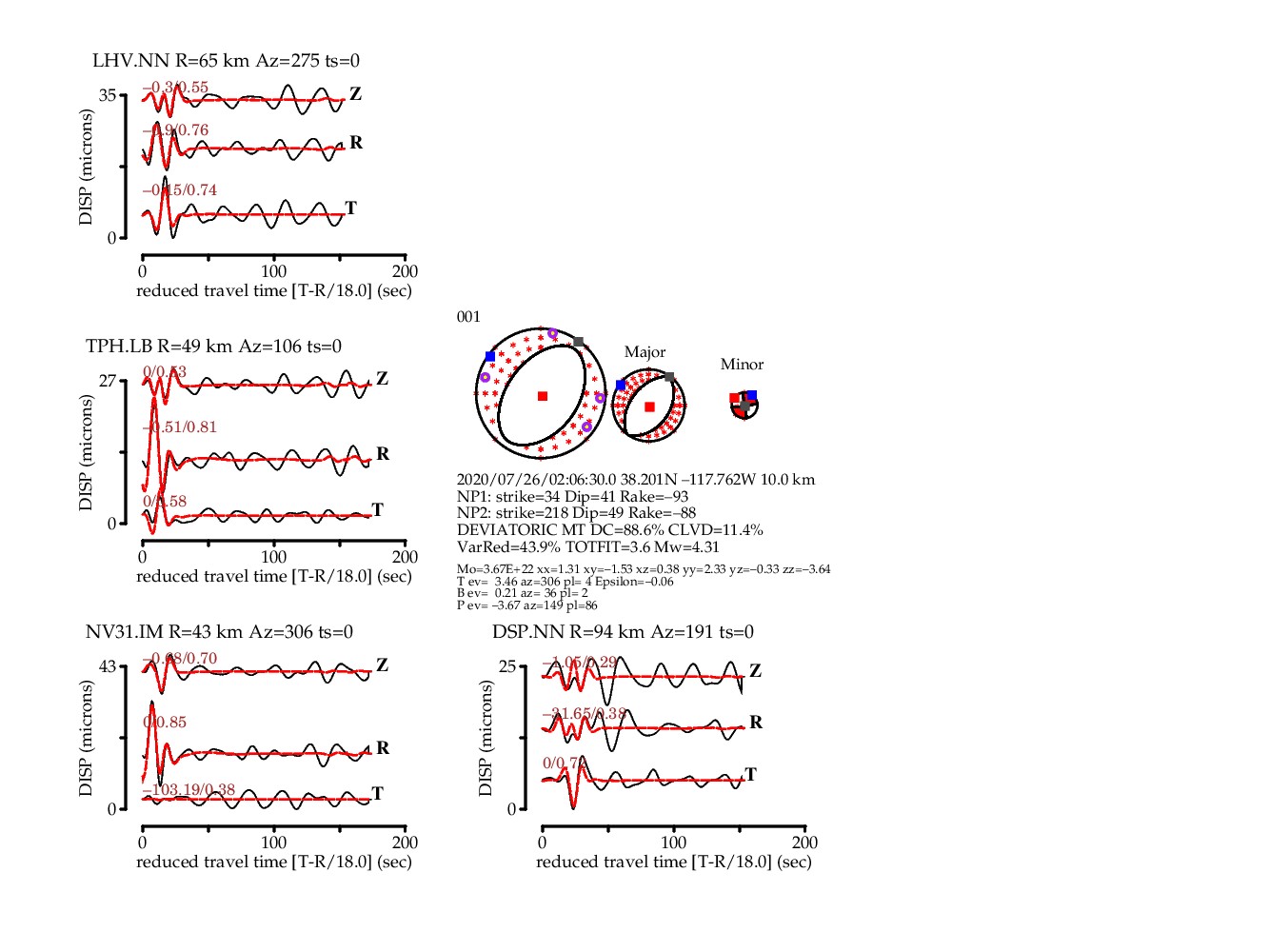

Solution Name: T030.0sec_Z010.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:30.00 38.2013 -117.7618 001
Depth = 10.0 (km)
Mw = 4.31
Mo = 3.67x10^22 (dyne x cm)
Percent Double Couple = 89 %
Percent CLVD = 11 %
no ISO calculated
Epsilon=-0.06
Percent Variance Reduction = 43.94 %
Total Fit = 3.55
Major Double Couple
strike dip rake
Nodal Plane 1: 34 41 -93
Nodal Plane 2: 218 49 -88
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -3.64 Mtt= 1.31 Mff= 2.33
Mrt= 0.38 Mrf= 0.33 Mtf= 1.53 EXP=22
Moment Tensor Elements: Cartesian Coordinates
1.31 -1.53 0.38
-1.53 2.33 -0.33
0.38 -0.33 -3.64
Eigenvalues:
T-axis eigenvalue= 3.46
N-axis eigenvalue= 0.21
P-axis eigenvalue= -3.67
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 3.46 trend=306 plunge=4
N-axis ev= 0.00 trend=36 plunge=2
P-axis ev=-3.46 trend=149 plunge=86
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
##################
#########################
#############################
#####################--------####
T ##################-------------#####
###############-----------------#####
-###############-------------------######
##############---------------------######
##############----------------------#######
#############-----------------------#######
###########-------------------------########
##########--------- -------------#########
##########--------- P -------------#########
#########---------- ------------##########
########-------------------------##########
########------------------------###########
#######----------------------############
######---------------------#############
######-------------------##############
####-----------------###############
###-------------#################
###------####################
#########################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:36 UTC
Date: 2020/07/25 19:55:36 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

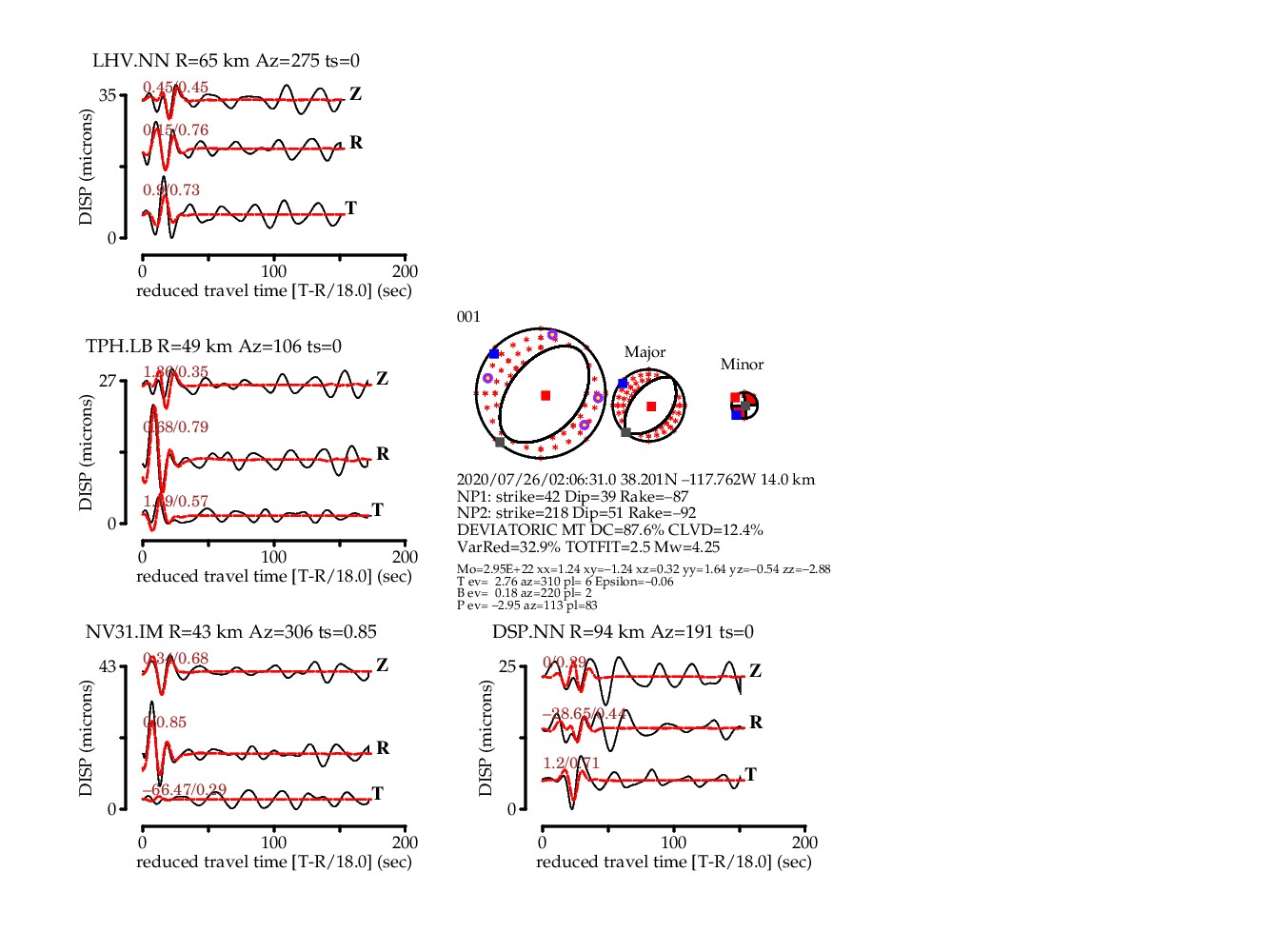

Solution Name: T031.0sec_Z014.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:31.00 38.2013 -117.7618 001
Depth = 14.0 (km)
Mw = 4.25
Mo = 2.95x10^22 (dyne x cm)
Percent Double Couple = 88 %
Percent CLVD = 12 %
no ISO calculated
Epsilon=-0.06
Percent Variance Reduction = 32.91 %
Total Fit = 2.45
Major Double Couple
strike dip rake
Nodal Plane 1: 42 39 -87
Nodal Plane 2: 218 51 -92
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -2.88 Mtt= 1.24 Mff= 1.64
Mrt= 0.32 Mrf= 0.54 Mtf= 1.24 EXP=22
Moment Tensor Elements: Cartesian Coordinates
1.24 -1.24 0.32
-1.24 1.64 -0.54
0.32 -0.54 -2.88
Eigenvalues:
T-axis eigenvalue= 2.76
N-axis eigenvalue= 0.18
P-axis eigenvalue= -2.95
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 2.76 trend=310 plunge=6
N-axis ev= 0.00 trend=220 plunge=2
P-axis ev=-2.76 trend=113 plunge=83
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
##################
#########################
############################-
#######################--------##
T ###################-------------####
#################----------------####
-################-------------------#####
###############----------------------####
###############----------------------######
#############------------------------######
############-------------------------#######
###########---------- ------------########
##########----------- P ------------########
#########------------ -----------#########
#########-------------------------#########
########------------------------###########
#######-----------------------###########
######---------------------#############
######-------------------##############
####----------------################
###------------##################
-############################
#########################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:35 UTC
Date: 2020/07/25 19:55:35 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Solution Name: T032.0sec_Z004.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:32.00 38.2013 -117.7618 001
Depth = 4.0 (km)
Mw = 3.99
Mo = 1.19x10^22 (dyne x cm)
Percent Double Couple = 88 %
Percent CLVD = 12 %
no ISO calculated
Epsilon=0.06
Percent Variance Reduction = 6.84 %
Total Fit = 0.54
Major Double Couple
strike dip rake
Nodal Plane 1: 41 31 -103
Nodal Plane 2: 235 60 -82
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.96 Mtt= 0.55 Mff= 0.42
Mrt= 0.51 Mrf= 0.27 Mtf= 0.56 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.55 -0.56 0.51
-0.56 0.42 -0.27
0.51 -0.27 -0.96
Eigenvalues:
T-axis eigenvalue= 1.19
N-axis eigenvalue= -0.07
P-axis eigenvalue= -1.12
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.19 trend=320 plunge=15
N-axis ev= 0.00 trend=52 plunge=7
P-axis ev=-1.19 trend=165 plunge=74
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
##################
#########################
############################
T #############################-
# ##############################-
#############################-----####
-#######################-------------####
####################-----------------####
##################--------------------#####
################----------------------#####
##############------------------------######
############--------------------------######
##########---------------------------#######
#########----------------------------#######
########----------- --------------#######
######------------- P -------------########
#####------------- -----------#########
###---------------------------##########
##--------------------------###########
-----------------------#############
-------------------##############
#######----##################
#########################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:34 UTC
Date: 2020/07/25 19:55:34 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

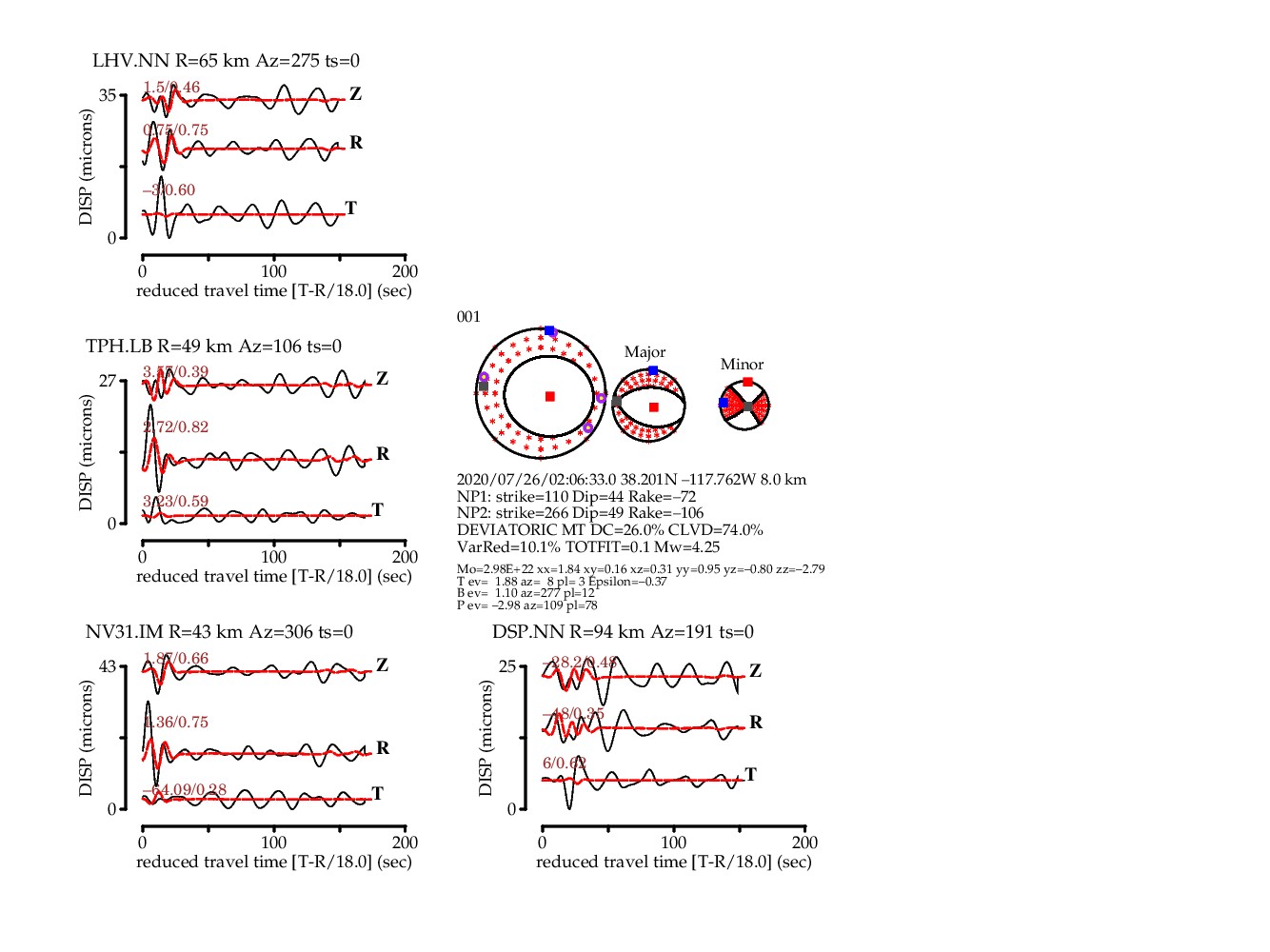

Solution Name: T033.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:33.00 38.2013 -117.7618 001
Depth = 8.0 (km)
Mw = 4.25
Mo = 2.98x10^22 (dyne x cm)
Percent Double Couple = 26 %
Percent CLVD = 74 %
no ISO calculated
Epsilon=-0.37
Percent Variance Reduction = 10.10 %
Total Fit = 0.13
Major Double Couple
strike dip rake
Nodal Plane 1: 110 44 -72
Nodal Plane 2: 266 49 -106
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -2.79 Mtt= 1.84 Mff= 0.95
Mrt= 0.31 Mrf= 0.80 Mtf= -0.16 EXP=22
Moment Tensor Elements: Cartesian Coordinates
1.84 0.16 0.31
0.16 0.95 -0.80
0.31 -0.80 -2.79
Eigenvalues:
T-axis eigenvalue= 1.88
N-axis eigenvalue= 1.10
P-axis eigenvalue= -2.98
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.88 trend=8 plunge=3
N-axis ev= 0.00 trend=277 plunge=12
P-axis ev=-1.88 trend=109 plunge=78
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
######## T #######
############ ##########
#############################
#################################
####################################
######################################
-##################----##################
############--------------------#########
-########----------------------------######
-#####---------------------------------####
--##-------------------------------------###
-###------------------- -----------------#
#####------------------ P -----------------
#######---------------- -----------------
########-----------------------------------
##########---------------------------------
############---------------------------##
##############---------------------#####
####################---------##########
####################################
#################################
#############################
#########################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:34 UTC
Date: 2020/07/25 19:55:34 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

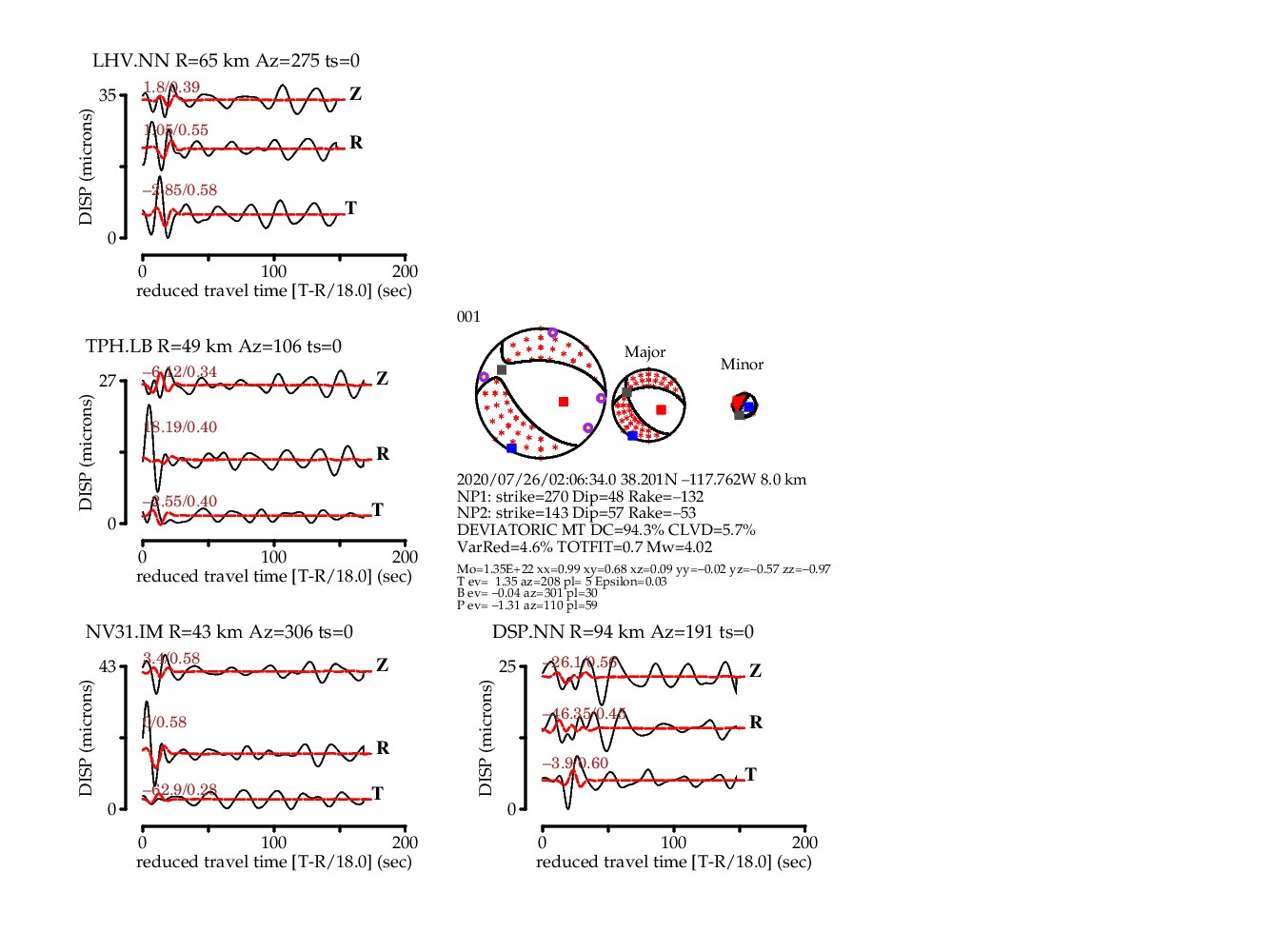

Solution Name: T034.0sec_Z008.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:34.00 38.2013 -117.7618 001
Depth = 8.0 (km)
Mw = 4.02
Mo = 1.35x10^22 (dyne x cm)
Percent Double Couple = 94 %
Percent CLVD = 6 %
no ISO calculated
Epsilon=0.03
Percent Variance Reduction = 4.59 %
Total Fit = 0.68
Major Double Couple
strike dip rake
Nodal Plane 1: 270 48 -132
Nodal Plane 2: 143 57 -53
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.97 Mtt= 0.99 Mff= -0.02
Mrt= 0.09 Mrf= 0.57 Mtf= -0.68 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.99 0.68 0.09
0.68 -0.02 -0.57
0.09 -0.57 -0.97
Eigenvalues:
T-axis eigenvalue= 1.35
N-axis eigenvalue= -0.04
P-axis eigenvalue= -1.31
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.35 trend=208 plunge=5
N-axis ev= 0.00 trend=301 plunge=30
P-axis ev=-1.35 trend=110 plunge=59
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
##################
#########################
-############################
---##############################
----################################
-----#################################
-------###########-----##################
------####---------------------##########
----#####---------------------------#######
--########----------------------------#####
-##########-----------------------------####
############------------------------------##
#############------------------------------
##############-------------- ------------
###############------------- P ------------
################------------ ------------
#################------------------------
##################---------------------
####################-------------------
#####################--------------
########################---------
# ########################-
T #######################
##################
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:33 UTC
Date: 2020/07/25 19:55:33 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

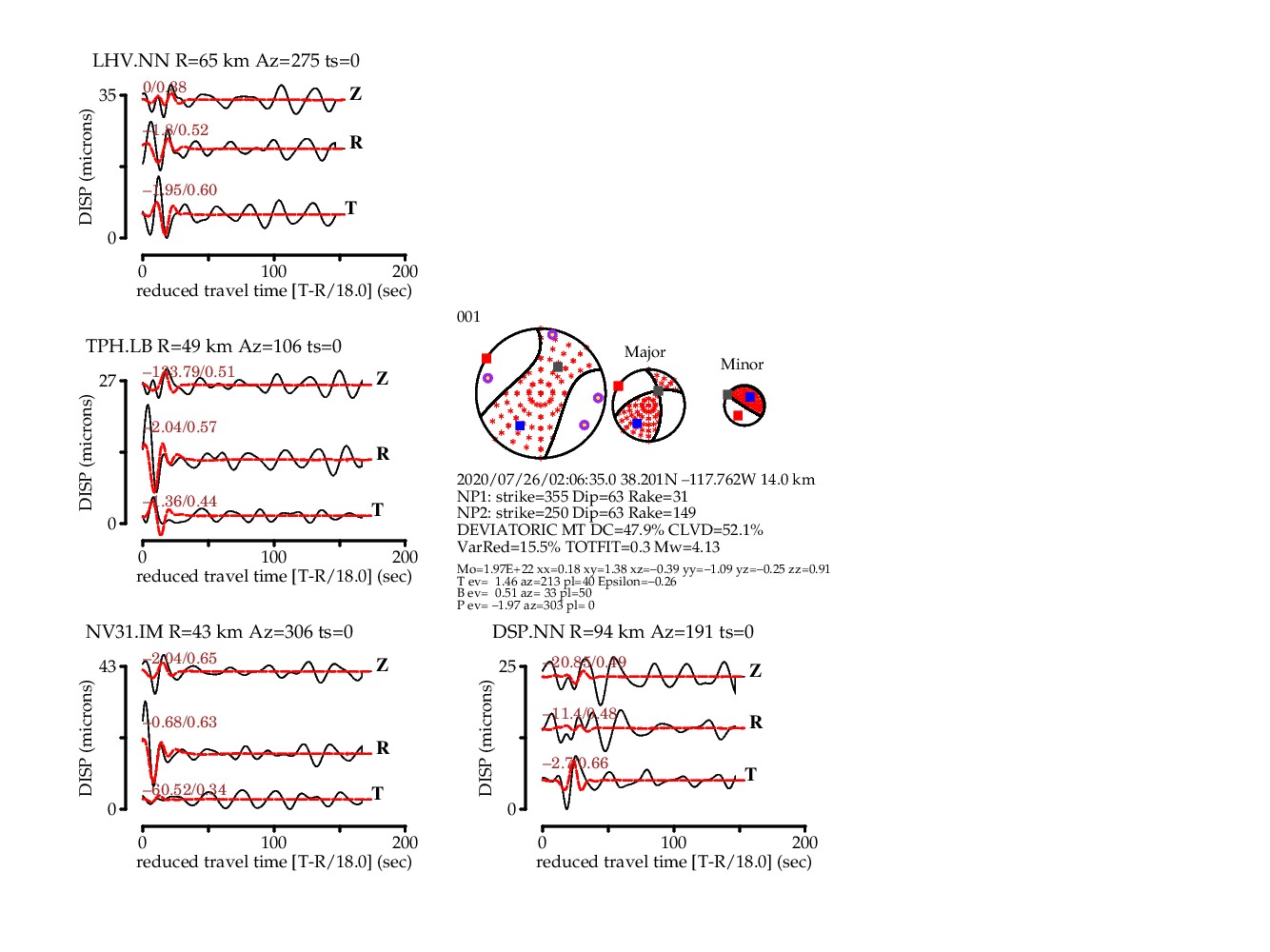

Solution Name: T035.0sec_Z014.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:35.00 38.2013 -117.7618 001
Depth = 14.0 (km)
Mw = 4.13
Mo = 1.97x10^22 (dyne x cm)
Percent Double Couple = 48 %
Percent CLVD = 52 %
no ISO calculated
Epsilon=-0.26
Percent Variance Reduction = 15.50 %
Total Fit = 0.29
Major Double Couple
strike dip rake
Nodal Plane 1: 355 63 31
Nodal Plane 2: 250 63 149
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= 0.91 Mtt= 0.18 Mff= -1.09
Mrt= -0.39 Mrf= 0.25 Mtf= -1.38 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.18 1.38 -0.39
1.38 -1.09 -0.25
-0.39 -0.25 0.91
Eigenvalues:
T-axis eigenvalue= 1.46
N-axis eigenvalue= 0.51
P-axis eigenvalue= -1.97
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.46 trend=213 plunge=40
N-axis ev= 0.00 trend=33 plunge=50
P-axis ev=-1.46 trend=303 plunge=0
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
-------###########
------------#############
----------------#############
-------------------##############
---------------------###############
P -----------------------###############
------------------------################
--------------------#######---------#####
----------------#############--------------
------------#################--------------
---------####################--------------
-------######################--------------
-----########################--------------
---##########################--------------
--###########################--------------
-############################--------------
############################-------------
###########################------------
######## ################------------
###### T ###############-----------
##### ###############----------
####################---------
#################-------
############-----
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:33 UTC
Date: 2020/07/25 19:55:33 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018

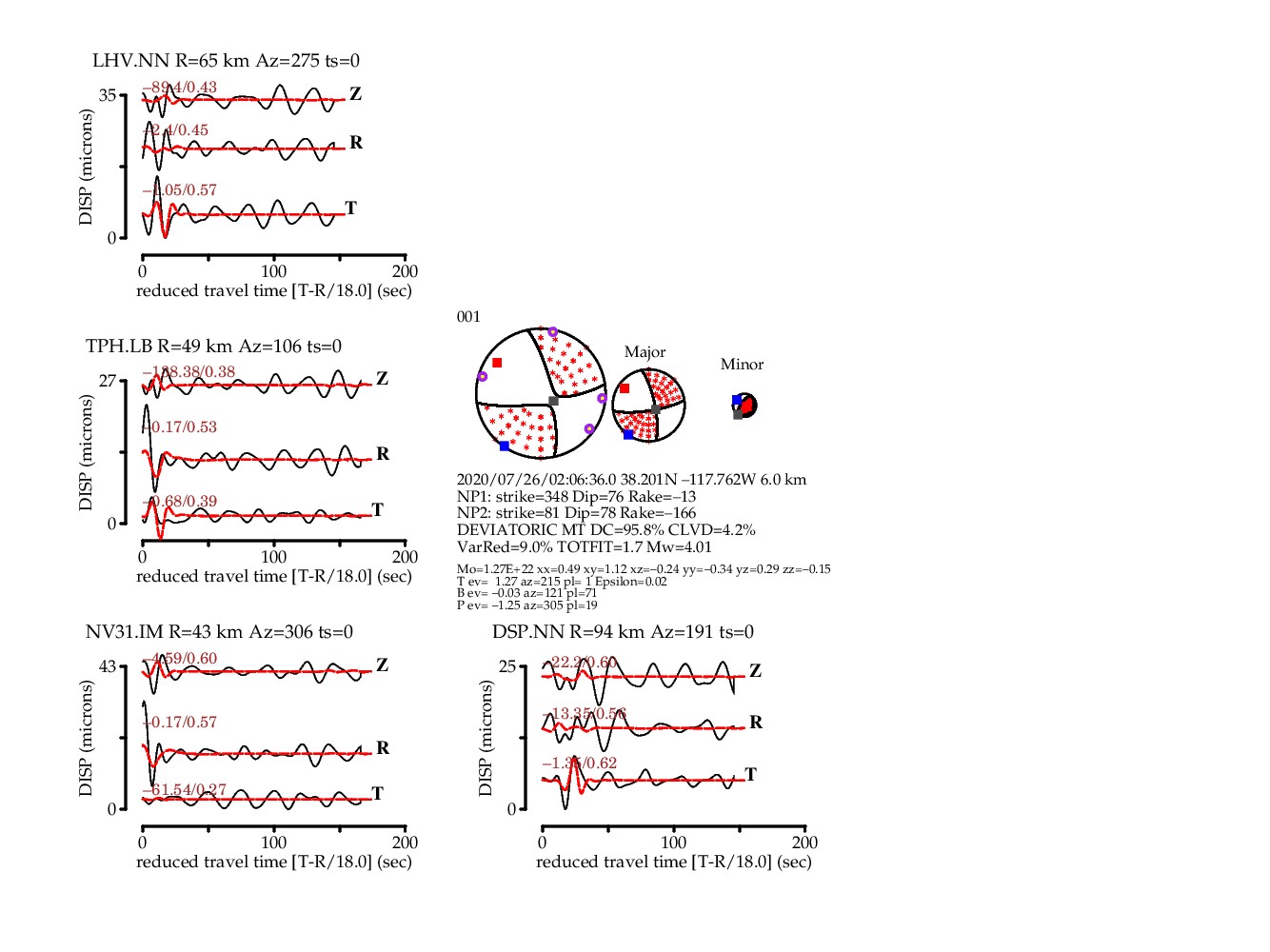

Solution Name: T036.0sec_Z006.0km_
Event ID: mw
Origin ID: 001
Date:
Seismic Moment Tensor Solution
2020/07/26 (208) 02:06:36.00 38.2013 -117.7618 001
Depth = 6.0 (km)
Mw = 4.01
Mo = 1.27x10^22 (dyne x cm)
Percent Double Couple = 96 %
Percent CLVD = 4 %
no ISO calculated
Epsilon=0.02
Percent Variance Reduction = 8.99 %
Total Fit = 1.74
Major Double Couple
strike dip rake
Nodal Plane 1: 348 76 -13
Nodal Plane 2: 81 78 -166
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.15 Mtt= 0.49 Mff= -0.34
Mrt= -0.24 Mrf= -0.29 Mtf= -1.12 EXP=22
Moment Tensor Elements: Cartesian Coordinates
0.49 1.12 -0.24
1.12 -0.34 0.29
-0.24 0.29 -0.15
Eigenvalues:
T-axis eigenvalue= 1.27
N-axis eigenvalue= -0.03
P-axis eigenvalue= -1.25
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 1.27 trend=215 plunge=1
N-axis ev= 0.00 trend=121 plunge=71
P-axis ev=-1.27 trend=305 plunge=19
Maximum Azmuithal Gap=159 Distance to Nearest Station= 43.0 (km)
Number of Stations (D=Displacement/V=Velocity) Used=4 (defining only)
NV31.IM.D TPH.LB.D LHV.NN.D DSP.NN.D
----##############
---------################
------------#################
---------------##################
-----------------###################
P ------------------###################
------------------####################
----------------------###################
-----------------------####################
------------------------###################
------------------------###################
-------------------------###############---
-------------------------###########-------
##-----------------###########-------------
###########################----------------
###########################----------------
##########################---------------
#########################--------------
#########################--------------
#######################------------
## #################-----------
T #################---------
#################------
##############---
#
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
NV31.IM (D) Y 43.0 306 126 0.020 0.100 NV31.IM.wus.glib
TPH.LB (D) Y 49.2 106 286 0.020 0.100 TPH.LB.wus.glib
LHV.NN (D) Y 64.7 275 95 0.020 0.100 LHV.NN.wus.glib
DSP.NN (D) Y 94.2 191 11 0.020 0.100 DSP.NN.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2020/07/26 02:55:32 UTC
Date: 2020/07/25 19:55:32 PDT
mtinv Version 3.0.6 Thu Jan 11 16:00:25 PST 2018
Event ID: mw
Origin ID: 001
Date:

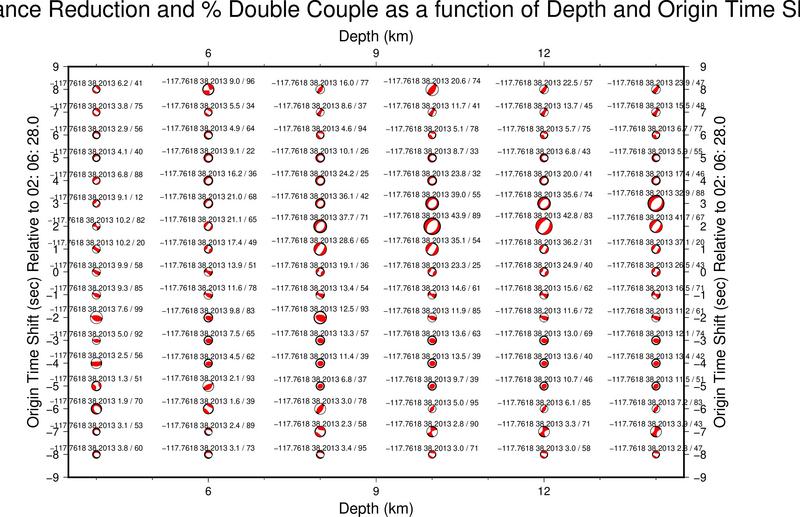

Filename: plotmech.jpg
Event ID: mw
Origin ID: 001
Date:

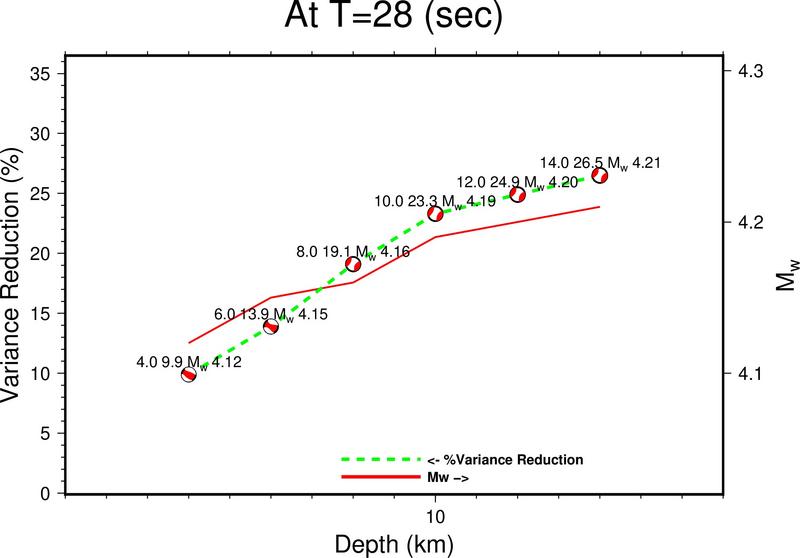

Filename: plotz.jpg
Event ID: mw
Origin ID: 001
Date:

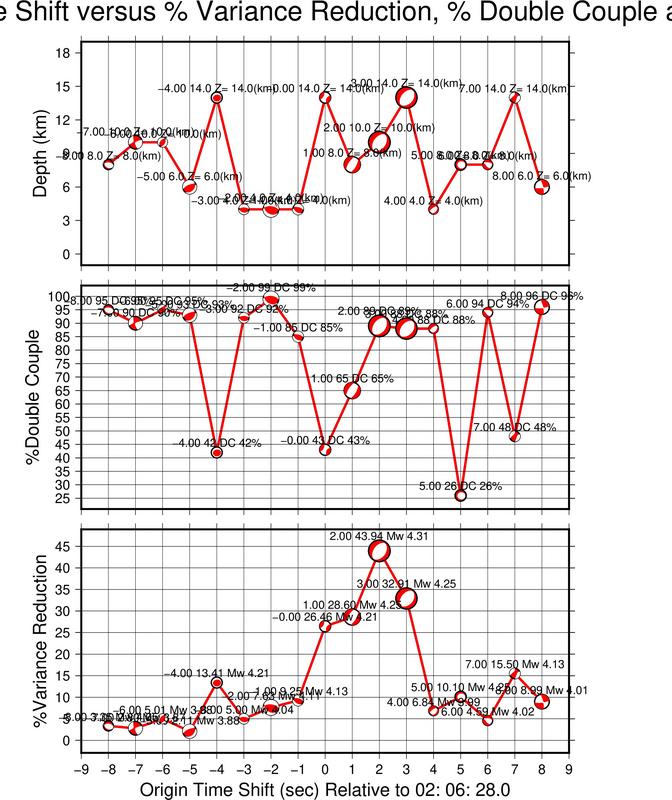

Filename: results.5.jpg
