Summary:
| Map includes seismicity in the last 60 days within 55 Km of this event. | ||
| ► Magnitude (ML) | 4.42 | |
| ► Region | 37.7 miles WNW of BEATTY-NV | |
| ► Date time | 2010-09-30 at 08:37:35.927 UTC 2010-09-30 at 01:37:35.927 PDT | |
| ► Location | 37.1385 ; -117.3803 | |
| ► Depth | 8.4561 km | |
| ► RMS | 0.2259 | |
| ► Gap | 145 | |
| ► Stations | 24 | |
| ► Defining Phases | 24 | |
| ► Associated Phases | 55 | |
| ► Type | Local | |
| ► Status | Reviewed | |
REVIEWED BY NSL STAFF
Event ID:317359
Origin ID:755037

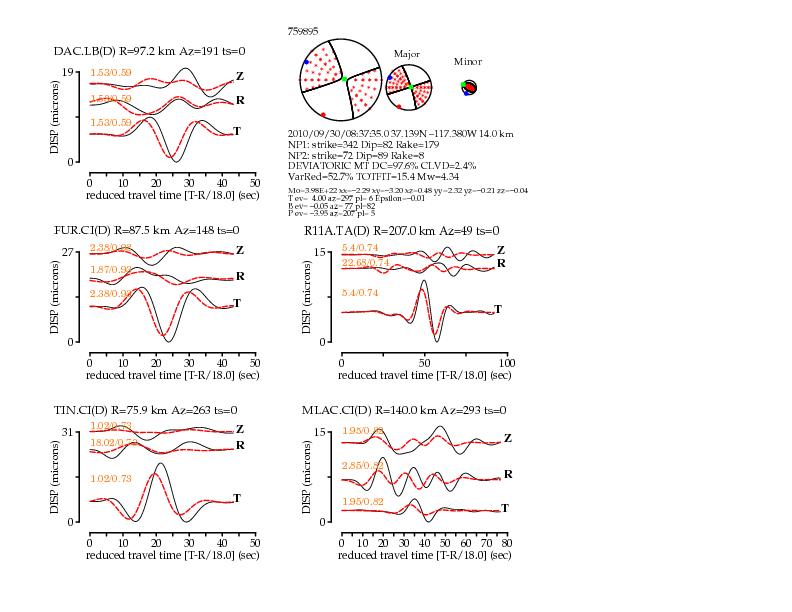

Seismic Moment Tensor Solution
2010/09/30 (273) 08:37:35.00 37.1385 -117.3803 755037
Depth = 14.0 (km)
Mw = 4.34
Mo = 3.98x10^22 (dyne x cm)
Percent Double Couple = 98 %
Percent CLVD = 2 %
no ISO calculated
Epsilon=-0.01
Percent Variance Reduction = 52.72 %
Total Fit = 15.42
Major Double Couple
strike dip rake
Nodal Plane 1: 342 82 179
Nodal Plane 2: 72 89 8
DEVIATORIC MOMENT TENSOR
Moment Tensor Elements: Spherical Coordinates
Mrr= -0.04 Mtt= -2.29 Mff= 2.32
Mrt= 0.48 Mrf= 0.21 Mtf= 3.20 EXP=22
Moment Tensor Elements: Cartesian Coordinates
-2.29 -3.20 0.48
-3.20 2.32 -0.21
0.48 -0.21 -0.04
Eigenvalues:
T-axis eigenvalue= 4.00
N-axis eigenvalue= -0.05
P-axis eigenvalue= -3.95
Eigenvalues and eigenvectors of the Major Double Couple:
T-axis ev= 4.00 trend=297 plunge=6
N-axis ev= 0.00 trend=77 plunge=82
P-axis ev=-4.00 trend=207 plunge=5
Maximum Azmuithal Gap=115 Distance to Nearest Station= 75.9 (km)
Number of Stations (D=Displacement/V=Velocity) Used=5 (defining only)
TIN.CI.D FUR.CI.D DAC.LB.D MLAC.CI.D
R11A.TA.D
###--------------
########-----------------
###########------------------
#############--------------------
###############--------------------
#################--------------------
T ###################---------------------
####################--------------------
######################-----------------####
#######################----------##########
########################---#################
############################################
############################################
#################-------####################
###########-------------###################
#####--------------------##################
------------------------#################
------------------------################
------------------------###############
-----------------------#############
----------------------###########
- ----------------#########
P -----------------######
---------------###
All Stations defining and nondefining:
Station.Net Def Distance Azi Bazi lo-f hi-f vmodel
(km) (deg) (deg) (Hz) (Hz)
TIN.CI (D) Y 75.9 263 82 0.020 0.080 TIN.CI.wus.glib
FUR.CI (D) Y 87.5 148 328 0.020 0.080 FUR.CI.wus.glib
DAC.LB (D) Y 97.2 191 11 0.020 0.080 DAC.LB.wus.glib
MLAC.CI (D) Y 140.0 293 113 0.020 0.080 MLAC.CI.wus.glib
R11A.TA (D) Y 207.0 49 230 0.020 0.080 R11A.TA.wus.glib
(V)-velocity (D)-Displacement
Author: www-data
Date: 2010/09/30 16:51:36
mtinv Version 2.1_DEVEL OCT2008
